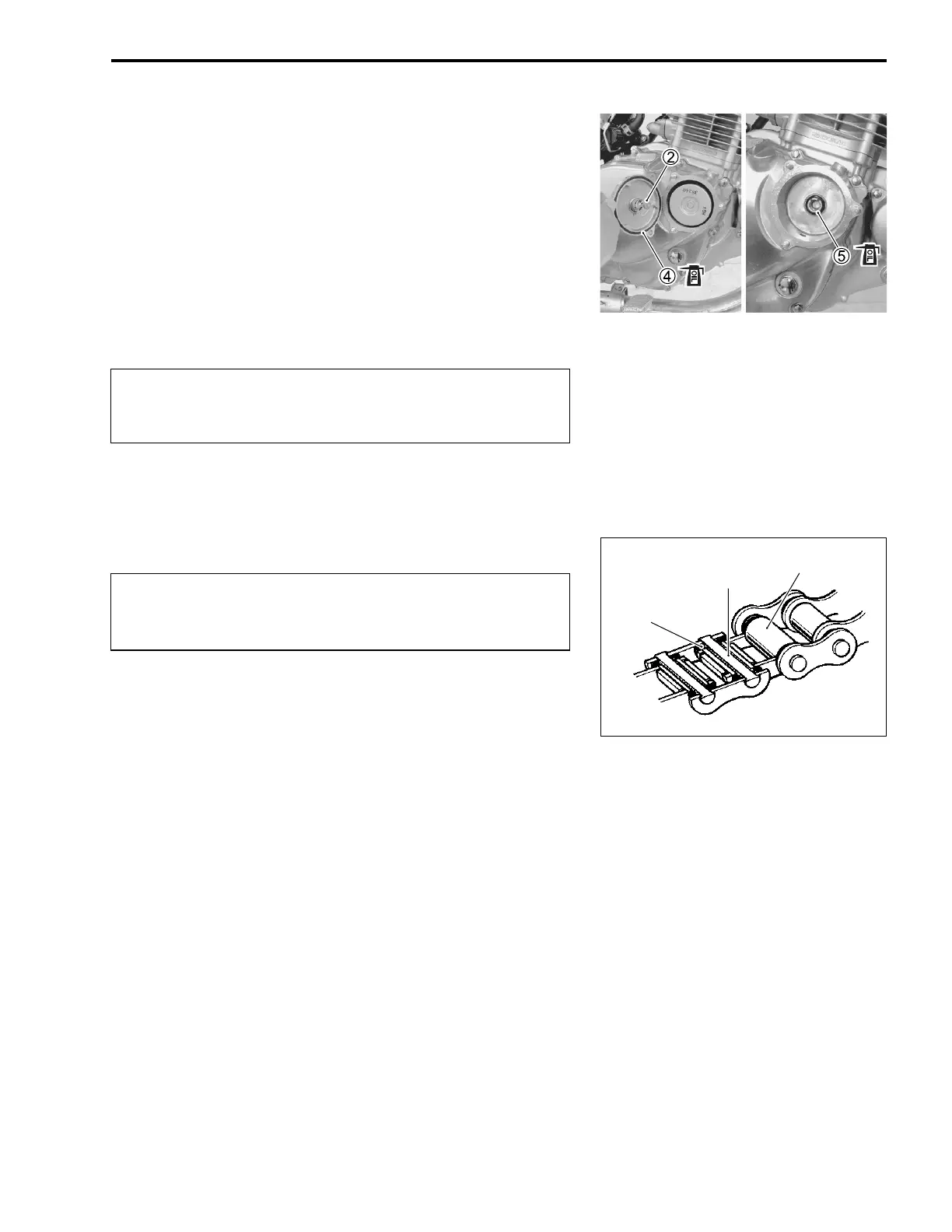

PERIODIC MAINTENANCE 2-11
• Apply engine oil to new O-rings (4, 5).
• Install a new oil filter.
• Install the spring 2 correctly.
• Install the oil filter cap and tighten the nuts securely.
• Add new engine oil and check the oil level as described in the
engine oil replacement procedure.
 Engine oil capacity
Oil change: 1 400 ml (1.5 US qt)
Oil and filter change: 1 500 ml L (1.6 US qt)
Engine overhaul: 1 900 ml (2.0 US qt)

OIL STRAINER CLEANING
(3-43)
DRIVE CHAIN
Visually inspect the drive chain for the possible defects listed
below.
* Loose pins * Improper chain adjustment
* Damaged rollers * Excessive wear
* Dry or rusted links * Kinked or binding links
* Missing O-ring seals
If any defects are found, the drive chain must be replaced.
(8-54)
NOTE:
When replacing the drive chain, replace the drive chain and
sprockets as a set.
Make sure that the oil filter is installed properly. If the
filter is installed improperly, serious engine damage
may result.
Inspect initially at 1 000 km (600 miles, 3 months) and
every 5 000 km (3 000 miles, 15 months) thereafter.
Clean and lubricate every 1 000 km (600 miles).
O-ring seal
Pin
Roller

Suzuki TU250X Specifications

General

Displacement	249 cc
Bore x Stroke	72.0 mm x 61.2 mm
Compression Ratio	9.2:1
Ignition	Electronic ignition (transistorized)
Starter	Electric
Transmission	5-speed constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Swingarm type, coil spring, oil damped
Rear Brakes	Drum brake
Front Tire	90/90-18 M/C 51S, tube type
Rear Tire	110/90-18 M/C 61S, tube type
Overall Length	2070 mm (81.5 in.)
Overall Width	750 mm (29.5 in.)
Overall Height	1075 mm (42.3 in.)
Seat Height	770 mm (30.3 in.)
Ground Clearance	165 mm (6.5 in.)
Wheelbase	1375 mm (54.1 in.)
Curb Weight	148 kg (326 lbs.)
Engine Type	4-stroke, single cylinder, SOHC
Front Brakes	Single disc
Fuel Capacity	12 L (3.2 US gal.)
