Suzuki TU250X User Manual

5-4 FUEL SYSTEM AND THROTTLE BODY

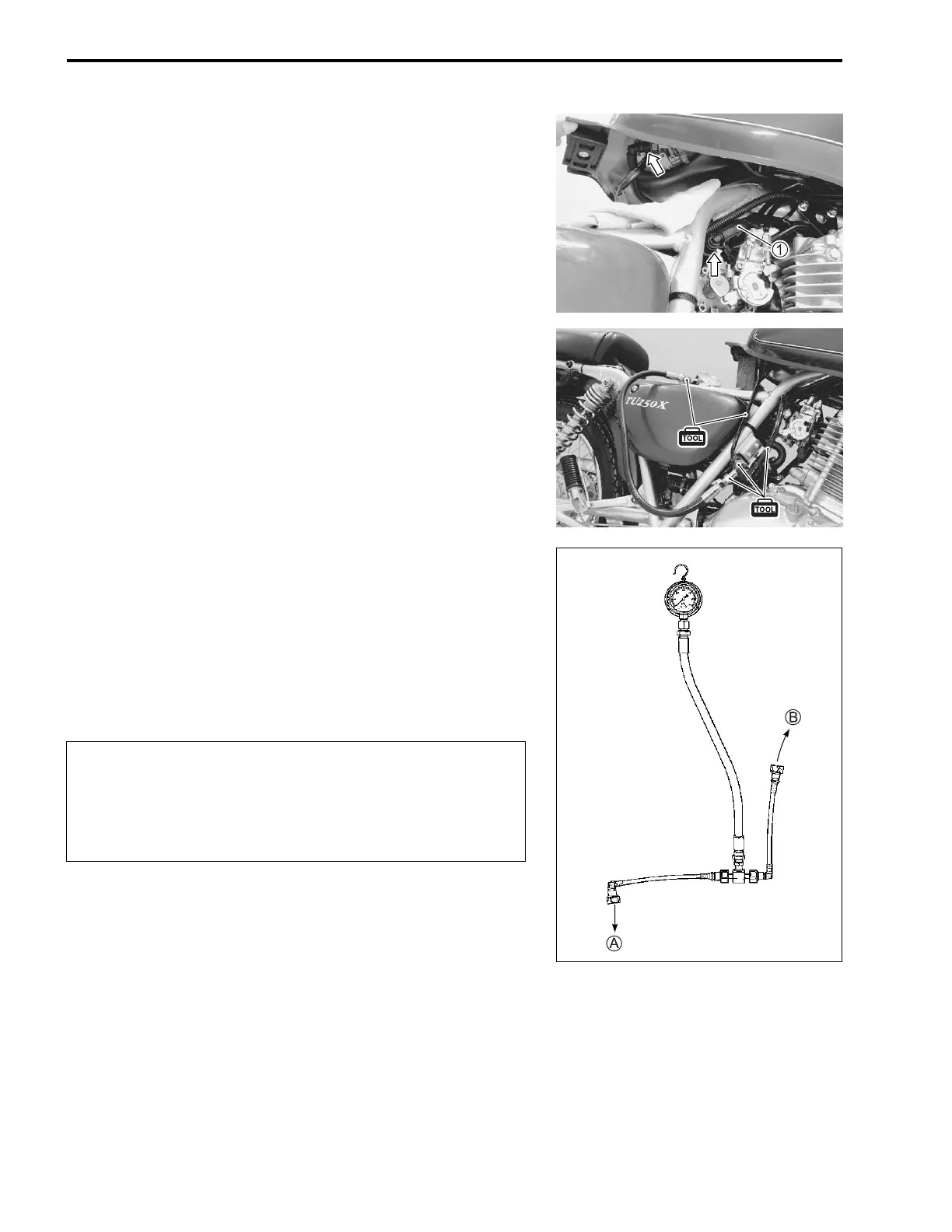

FUEL PRESSURE INSPECTION
• Lift up the fuel tank by removing the fuel tank mounting bolt.
(5-3)
• Place a clean rag under the fuel feed hose 1.
• Remove the fuel feed hose 1.
• Install the special tools between the fuel pump and fuel deliv-
ery pipe.
 09915-74511: Oil pressure gauge (600 kPa)
09940-40211: Fuel pressure gauge adaptor
09940-40220: Fuel pressure gauge attachment
• Turn the ignition switch ON and check the fuel pressure.
 Fuel pressure: Approx. 294 kPa (2.94 kgf/cm
2
, 41.8 psi)
If the fuel pressure is lower than the specification, inspect the
following items:
* Clogged fuel mesh filter
* Pressure regulator
* Fuel pump
If the fuel pressure is higher than the specification, inspect the
following items:
* Fuel pump
* Pressure regulator

A To fuel pump
B To fuel delivery pipe
* Before removing the special tools, turn the ignition
switch OFF position and release the fuel pressure
slowly.
* Gasoline is highly flammable and explosive. Keep
heat, sparks and flame away.

Suzuki TU250X Specifications

General

Displacement	249 cc
Bore x Stroke	72.0 mm x 61.2 mm
Compression Ratio	9.2:1
Ignition	Electronic ignition (transistorized)
Starter	Electric
Transmission	5-speed constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Swingarm type, coil spring, oil damped
Rear Brakes	Drum brake
Front Tire	90/90-18 M/C 51S, tube type
Rear Tire	110/90-18 M/C 61S, tube type
Overall Length	2070 mm (81.5 in.)
Overall Width	750 mm (29.5 in.)
Overall Height	1075 mm (42.3 in.)
Seat Height	770 mm (30.3 in.)
Ground Clearance	165 mm (6.5 in.)
Wheelbase	1375 mm (54.1 in.)
Curb Weight	148 kg (326 lbs.)
Engine Type	4-stroke, single cylinder, SOHC
Front Brakes	Single disc
Fuel Capacity	12 L (3.2 US gal.)
