ELECTRICAL SYSTEM 9-3
CAUTIONS IN SERVICING

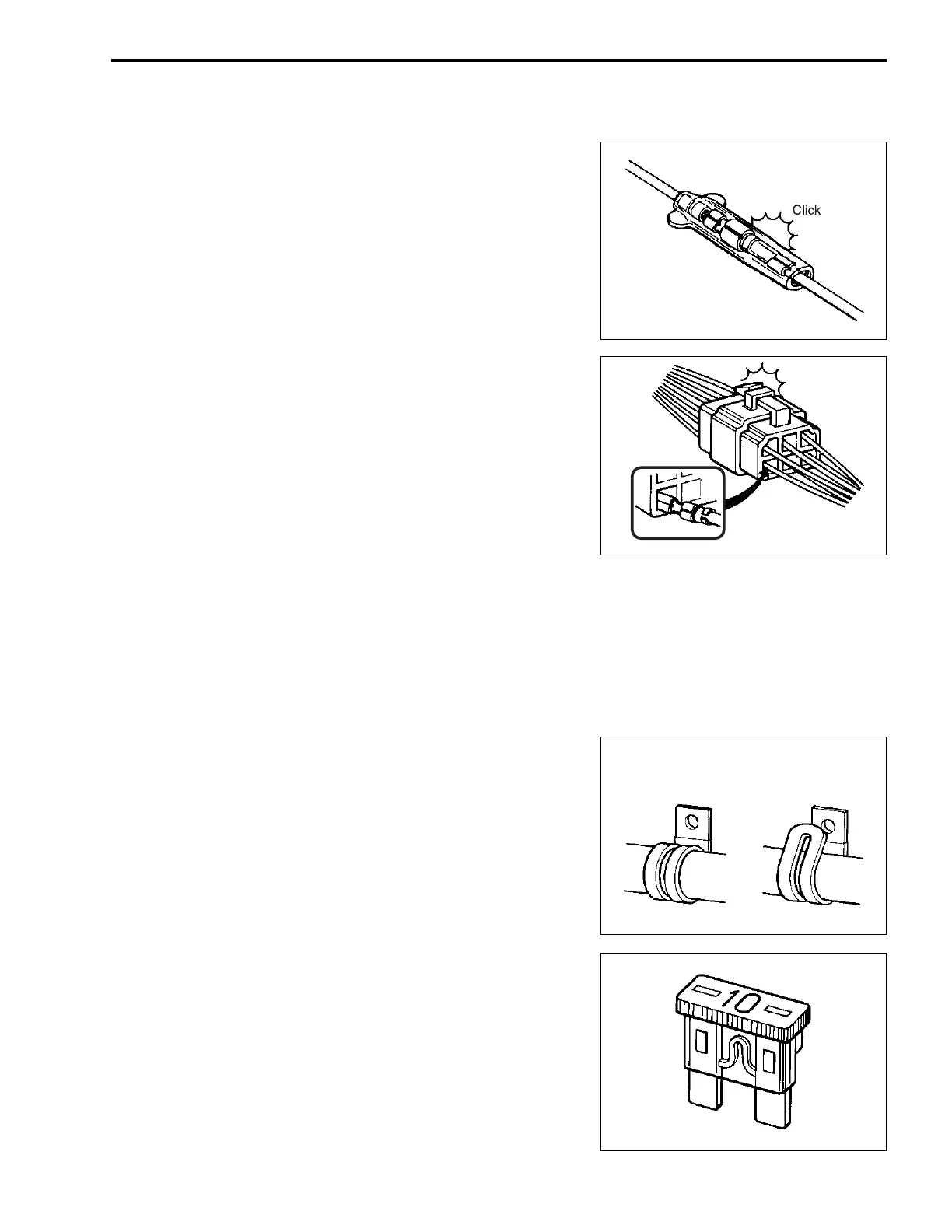

CONNECTOR
• When connecting a connector, be sure to push it in until a
click is felt.
• Inspect the connector for corrosion, contamination and break-
age in its cover.
• Avoid applying grease or other similar material to connec-
tor/coupler terminals to prevent electric trouble.
COUPLER
• With a lock type coupler, be sure to release the lock when dis-
connecting, and push in fully to engage the lock when con-
necting.
• When disconnecting the coupler, be sure to hold the coupler
itself and do not pull the lead wires.
• Inspect each terminal on the coupler for being loose or bent.
• Inspect each terminal for corrosion and contamination.
• Push in the coupler straightly. An angled or skewed insertion
may cause the terminal to be deformed, possibly resulting in
poor electrical contact.
• Before refitting the sealed coupler, make sure its seal rubber
is positioned properly. The seal rubber may possibly come off
the position during disconnecting work and if the coupler is
refitted with the seal rubber improperly positioned, it may
result in poor water sealing.
CLAMP
• Clamp the wire harness at such positions as indicated in
“WIRING HARNESS ROUTING”. (10-12 to -14)
• Bend the clamp properly so that the wire harness is clamped
securely.
• In clamping the wire harness, use care not to allow it to hang
down.
• Do not use wire or any other substitute for the band type
clamp.
FUSE
• When a fuse blows, always investigate the cause to correct it
and then replace the fuse.
• Do not use a fuse of a different capacity.
• Do not use wire or any other substitute for the fuse.
Click
CORRECT INCORRECT

Suzuki TU250X Specifications

General

Displacement	249 cc
Bore x Stroke	72.0 mm x 61.2 mm
Compression Ratio	9.2:1
Ignition	Electronic ignition (transistorized)
Starter	Electric
Transmission	5-speed constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Swingarm type, coil spring, oil damped
Rear Brakes	Drum brake
Front Tire	90/90-18 M/C 51S, tube type
Rear Tire	110/90-18 M/C 61S, tube type
Overall Length	2070 mm (81.5 in.)
Overall Width	750 mm (29.5 in.)
Overall Height	1075 mm (42.3 in.)
Seat Height	770 mm (30.3 in.)
Ground Clearance	165 mm (6.5 in.)
Wheelbase	1375 mm (54.1 in.)
Curb Weight	148 kg (326 lbs.)
Engine Type	4-stroke, single cylinder, SOHC
Front Brakes	Single disc
Fuel Capacity	12 L (3.2 US gal.)
