Swann AMI CACE - EDI Module Tubing; Tube at Sample Outlet

AMI CACE
Installation
A-96.250.871 / 120417 17

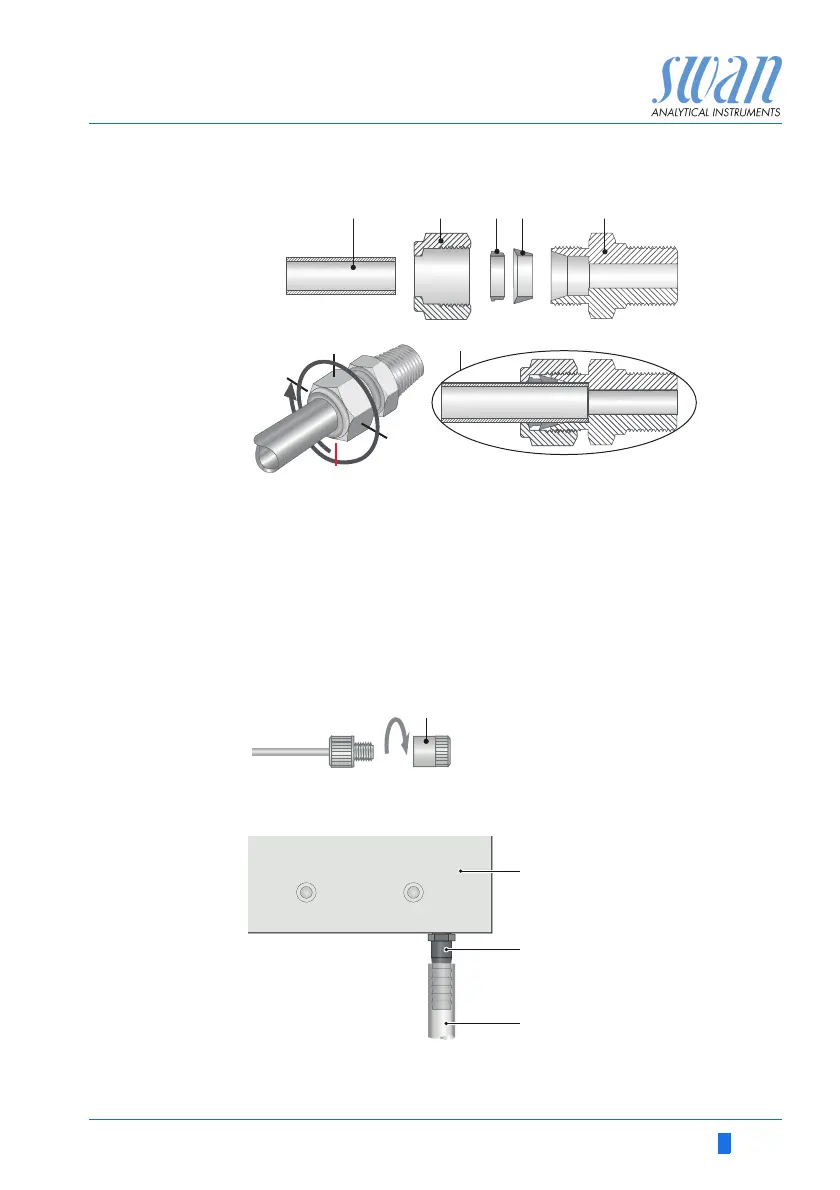

3.3.2 EDI module tubing
Remove the end caps [A] from tubes 1, 2, 3, 5 and 10 and connect
the tubes according to Tube numbering, p. 43. Keep the end caps
for later use.
3.3.3 Tube at Sample Outlet
Connect a plastic tube [C] to the hose nozzle [B] and place it into a
drain with atmospheric pressure.
A
B
C
Stainless steel tube
Union nut
Compression ferrule
D
E
F
Compression cone
Body
Tightened connection
12
3
9
6
ABCDE
F
A End cap
A
A
B
C
EDI module
Hose nozzle
Plastic tube 20 x 15 mm
B
C
A
