AMI CACE
Installation
A-96.250.871 / 120417 25
3.7. Signal Outputs
3.7.1 Signal Output 1 and 2 (current outputs)
NOTICE: Max. burden 510 
If signals are sent to two different receivers, use signal isolator
(loop isolator).
Signal output 1: Terminals 14 (+) and 13 (-)
Signal output 2: Terminals 15 (+) and 13 (-)
For programming see Program Overview, p. 45, Menu Installation
3.8. Interface Options
The slot for interfaces can be used to expand the functionality of
the AMI instrument with either:
 Third signal output
 a Profibus or Modbus connection
 a HART connection
 an USB Interface

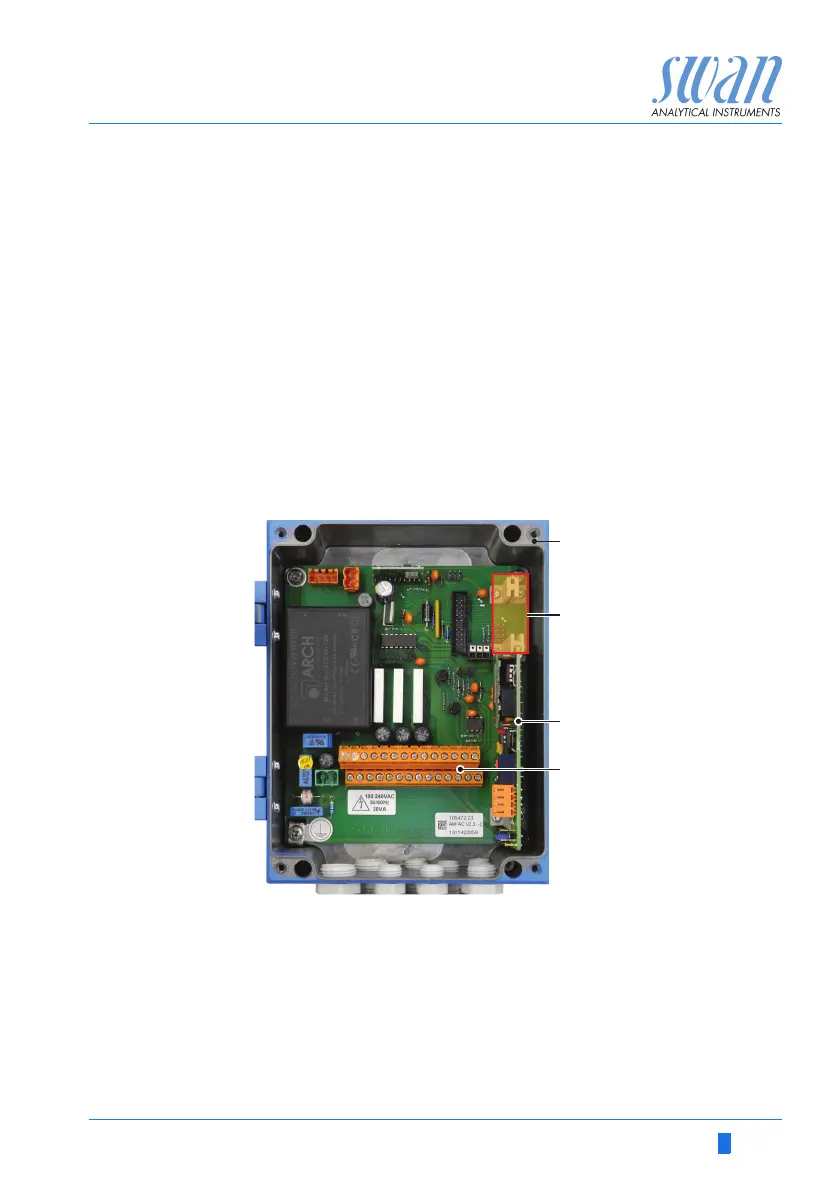

A
B
C
D
AMI Transmitter
Slot for interfaces
Frontend PCB
Screw terminals
A
B
C
D
