8.2 Weights
Swegon CASA Blues
600 mm 8.5 kg
500 mm 8 kg
Swegon CASA Salsa
600 mm 10 kg
500 mm 9 kg
Swegon CASA Tango
600 mm 14 kg
500 mm 13 kg
Swegon CASA Jazz
600 mm 7.5 kg
Connection, mains plug 230 V, 50 Hz, 0.1 A
Lighting effect 7.5 W
Total output 15 W
8.3 Outputs of the components

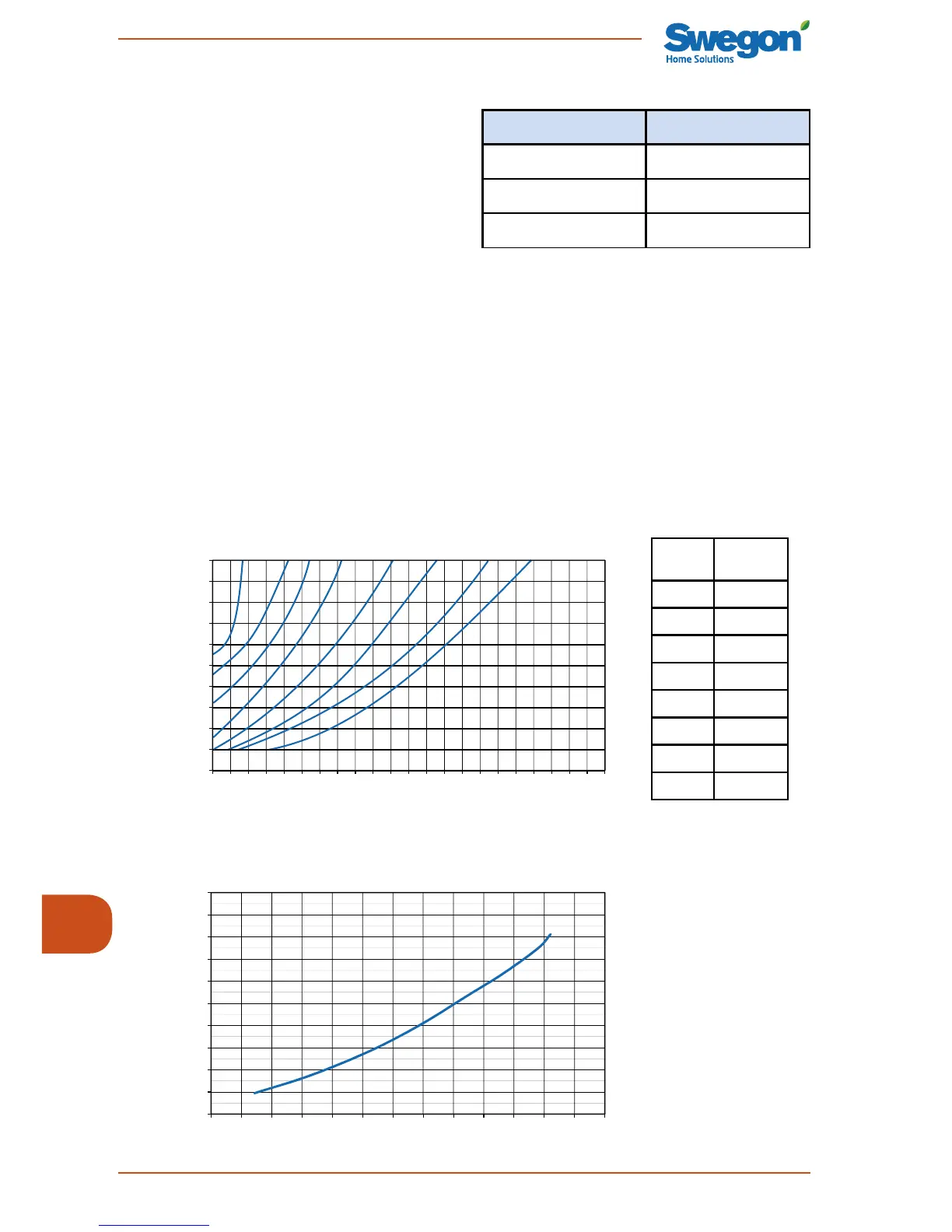

8.4 Commissioning diagram
8.4.1 Basic ventilation
8.4.2 Boosted ventilation
0
20
40
60
80
10
0
12
0
14
0
16
0
18
0
200
15 20 25 30 35 40 45 50 55 60 65 70 75 80
Airflow rate ( l/s )
Pressure differential (Pa)
0
25
50
75
10
0
12
5
15
0
17
5
20
0
22
5
250
345678910111213141516171819202122232
425
Airflow rate ( l/s )
Pressure differential (Pa)
Open holes in the damper
1 2 3 4 5 6 7 8
Open
holes
K-value
1 0,31
2 0,44
3 0,53
4 0,65
5 0,80
6 0,98
7 1,17
8 1,31
