Swegon casa salsa - Electrical Wiring Diagram

EN
Swegon reserves the right to alter specifications.www.swegonhomesolutions.com
86

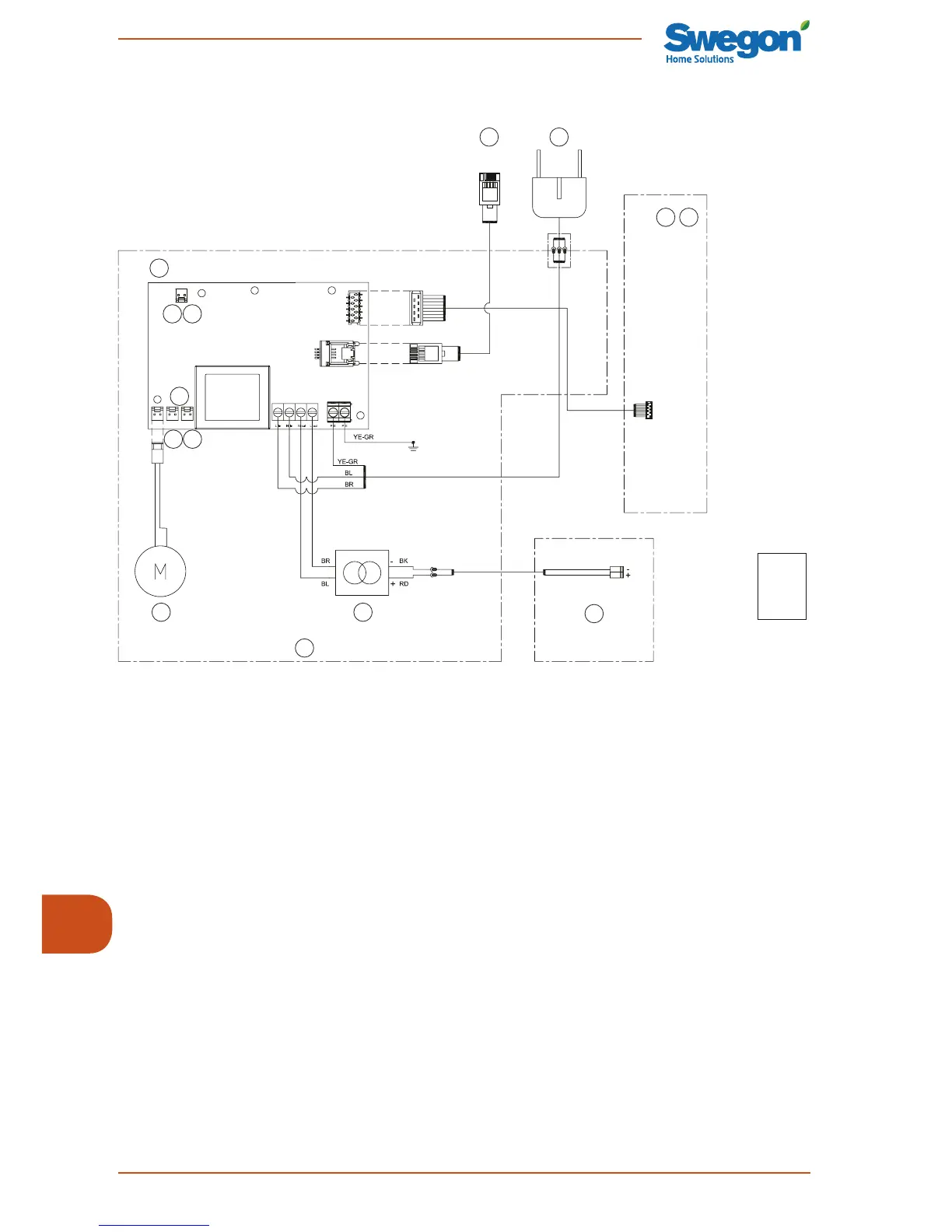

8.6 Electrical wiring diagram
1S000349b
1
2
3
4
5
6
7
8
9
BK = Black
BL = Blue
BR = Brown
GR = Green
RD = Red
YE = Yellow
Motor
Ext in
Ext out
10
A B
10
C
1. Control circuit card (60300; MP087)
2. Control cable for ventilatilation unit, RJ9
connector (modularkabel)
3. Mains plug connection 230 V, 50 Hz, 0.1 A
4. Control panel with touch-screen
electrionics
5. Control panel with buttons (Tango)
6. Damper motor
7. Equipment cubicle
8. LED control system
9. LED light (4000 K)
Connections for ITK03 kabel:
A) Ext in: damper control
B) Ext out: damper position signals
C) Control of EC-power roof venti
lator (GND = red,
0-10 V = white)
