Swegon COMPACT Unit - Connection to Terminal Blocks

GB.COMPACTUT.170622
Registered design. The company reserves the right to make design changes without prior notice.
58 www.swegon.com

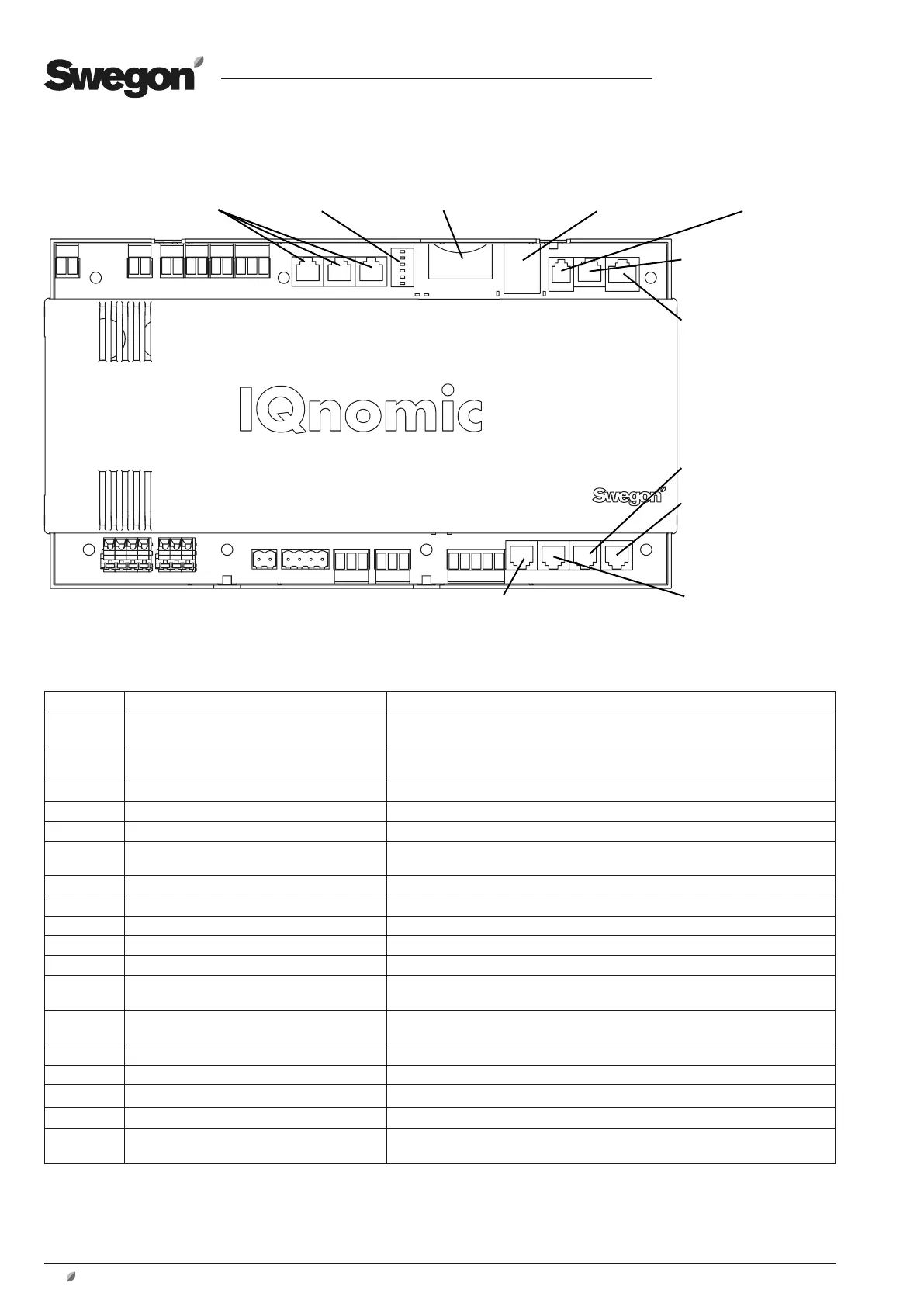

20.3.2 Connection to Terminal Blocks
Terminal Function Remarks
1,2 Output 1 Select function individually. Independent contact, max. 5 A/AC1, 1A/AC3, 250 V
AC.
3,4 Output 2 Select function individually. Independent contact, max. 5 A/AC1, 1A/AC3, 250 V
AC.
5,6 Input 1 Select function individually.
7,8 Input 2 Select function individually.
9,10 Control voltage Control voltage: 24 V AC, max. permissible load : 28 VA. 9 (G), 10 (G0).
11,12,13 Connections for EIA 485 11 communication connection A/RT+, 12 communication connection B/RT–,
13 = GND/COM.
14,15,16, 17 Heat exchanger motor 14 Earth, 15 Red, 16 Yellow, 17 Black.
18,19,20 Rotation monitor sensor 18 Brown, 19 Blue, 20 Black.
21,22 Supply voltage, H EXCH control 36 V AC, in
23,24 Supply voltage, control unit 18 V AC, in
25,26 Supply voltage, outputs 24 V 24 V AC, in
27,28,29 Damper actuator, change-over damper
(Applies to COMPACT Heat only)
27 (G0) Black 24 V AC(-), 28 (G) Red 24 V AC(+), 29 (NO) White 24 V AC out if
active.
30,31,32 Damper actuator, air recirculation damper 30 (G0) Black 24 V AC(-), 31 (G) Red 24 V AC(+), 32 (NO) White 24 V AC out if
active.
33 Output, fixed power supply: 12 V DC out 12 V DC to GND. Max permissible load: 500 mA
34 PWM input for Clean Air Control VOC sensor
35 Measuring zero, GND
36 Output, fixed power supply: 10 V DC out 10 V DC to GND Max. permissible load: 20 mA.
37 Input, 0–10 V DC, for demand-controlled
control of the airflow or set point displacement
Air quality sensor
Digital inputs, terminals 5–8, are of extra-low voltage type. Ana-
logue inputs, terminal 37 has an input impedance of 66 k.Ω.
DIL selector switches:
COMPACT Unit, right-hand version: DIL switch 4 must be set to the ON position, the other switches must be set to the OFF position.
COMPACT Unit, left-hand version: DIL switches 1 and 4 must be set to the ON position, the other switches must be set to the OFF position.
COMPACT Top: DIL switch 3 must be set to the ON position, the other switches must be set to the OFF position.
12 34 56 78 910111213
1415 16 17 18 19 20
21 22 2324 25 26 2728 29 3031 32 33343536 37
ON
DIL selector switch
External sensor and
IQnomic Plus modules
Memory card for log-
ging and upgrading
Network connection Temperature sensor, supply air
Communication,
hand-held micro
terminal
Controller, air heater
Pressure sensor, extract
air fan*
Pressure sensor, supply
air fan*
Temperature sensor,
extract air*
Temperature sensor,
outdoor air*
*COMPACT Unit: The designations apply to the right-hand version. In the left-hand version, the sensors change function and designation (the
components are named according to whether they are for supply air or extract air).
