12. BODY COVER
12-5
Luggage Box

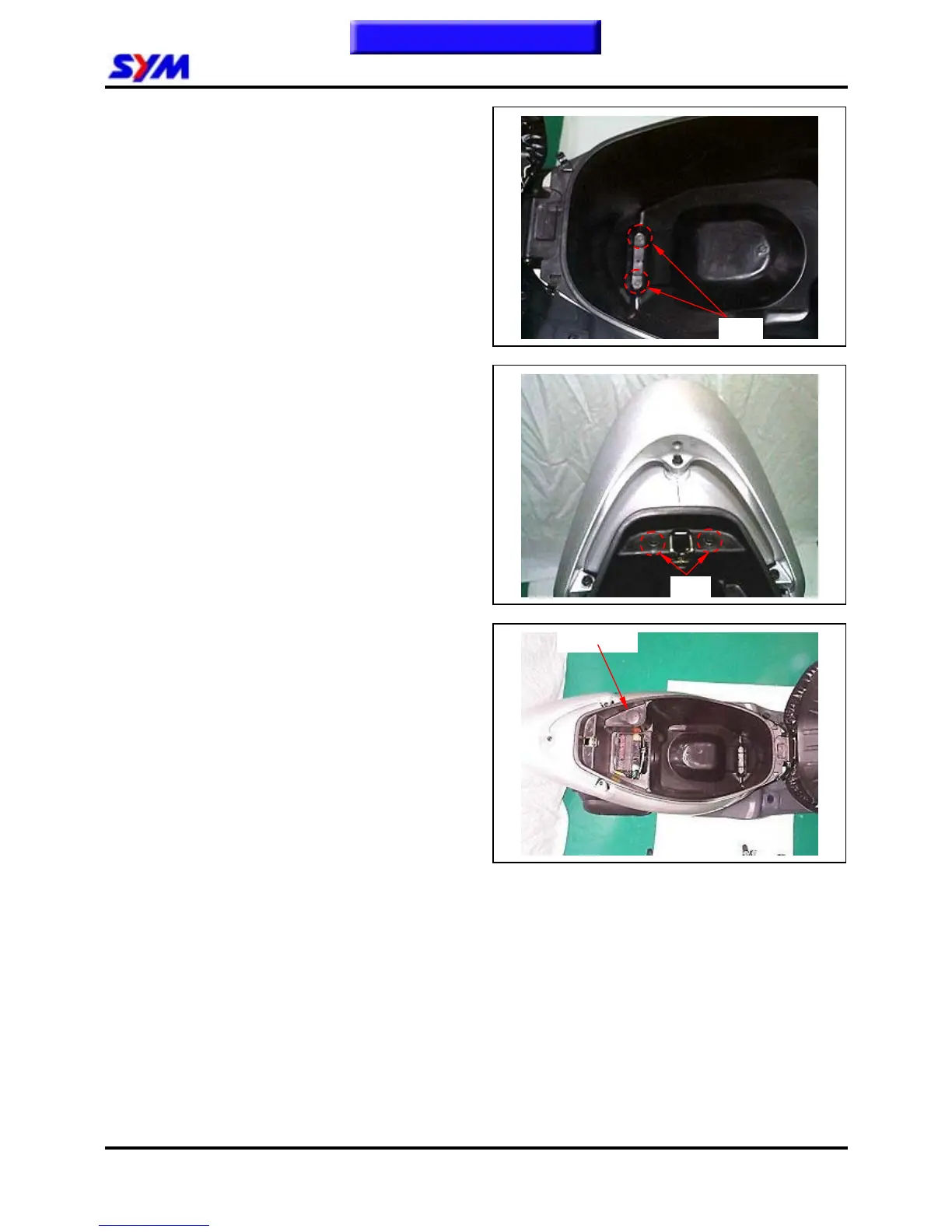

1. Removal:
y Lift up seat cushion.
y Remove luggage box mounting screws (1
screw).
y Remove luggage box bolts (4 bolts)
y Remove oil tank cap and oil guide rubber.
y Hold the luggage box in both front and
rear sides by two hands, and then lift up
the box to remove it.
2. Installation:
y Install in reverse order of removal
procedures.
Bolts
Bolts
Oil tank cap
