12. BODY COVER
12-11

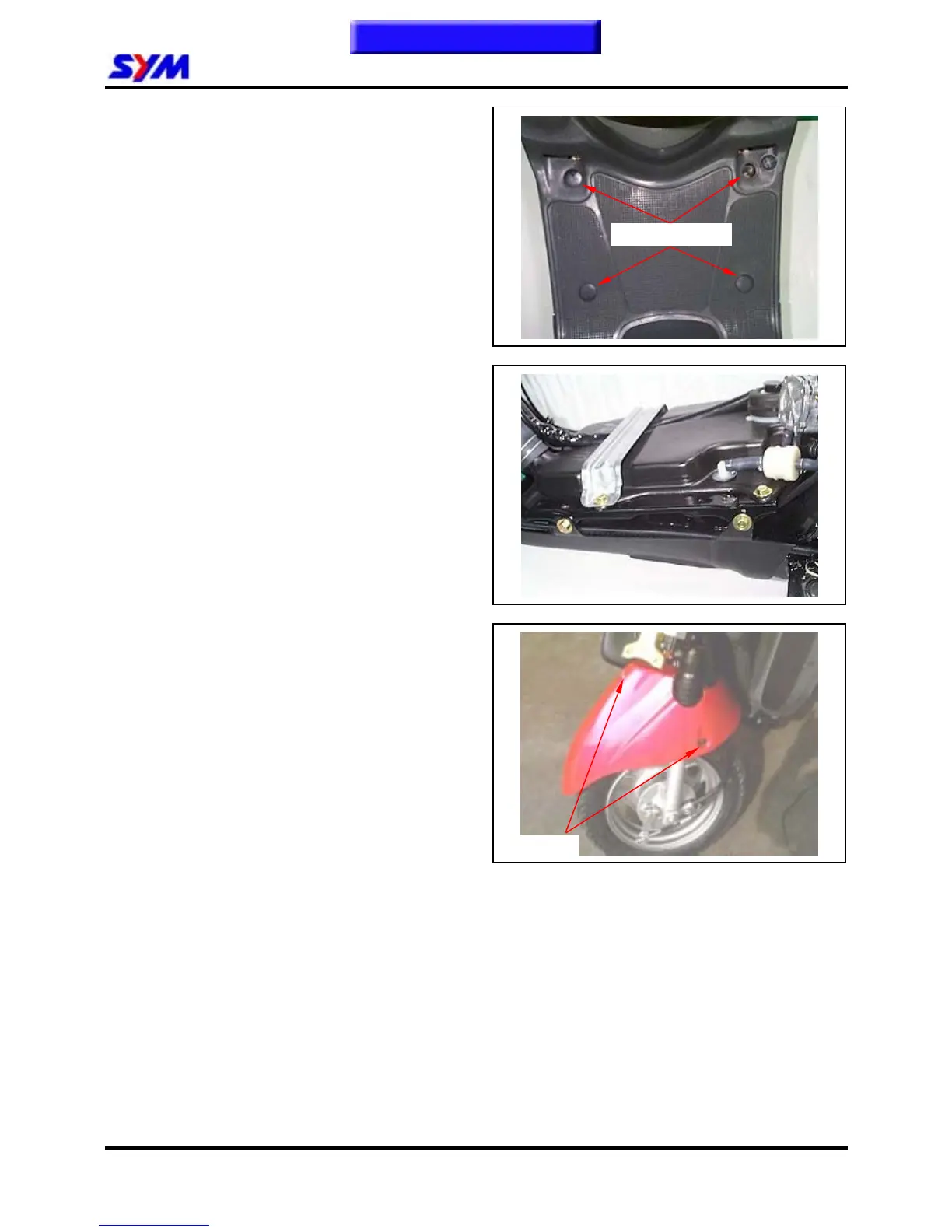

Floor Panel
1. Removal:
y Remove the luggage box, rear carrier,
right / left side covers and body cover.
y Remove 4 plugs of the floor panel.
y Remove the floor panel. (4 bolts)
2. Installation:
y Install in reverse order of removal
procedures.
Front Fender
1. Removal:
y Remove speedometer cable screw and
cable.
y Remove front wheel bolt and then
remove the wheel.
y Remove 3 screws of front fender.
y Remove the front fender.
2. Installation:
y Install in reverse order of removal
procedures.
4 plugs and 4 Bolts
3 Screws
