13. STEERING/FRONT WHEEL/SUSPENSION
13-8

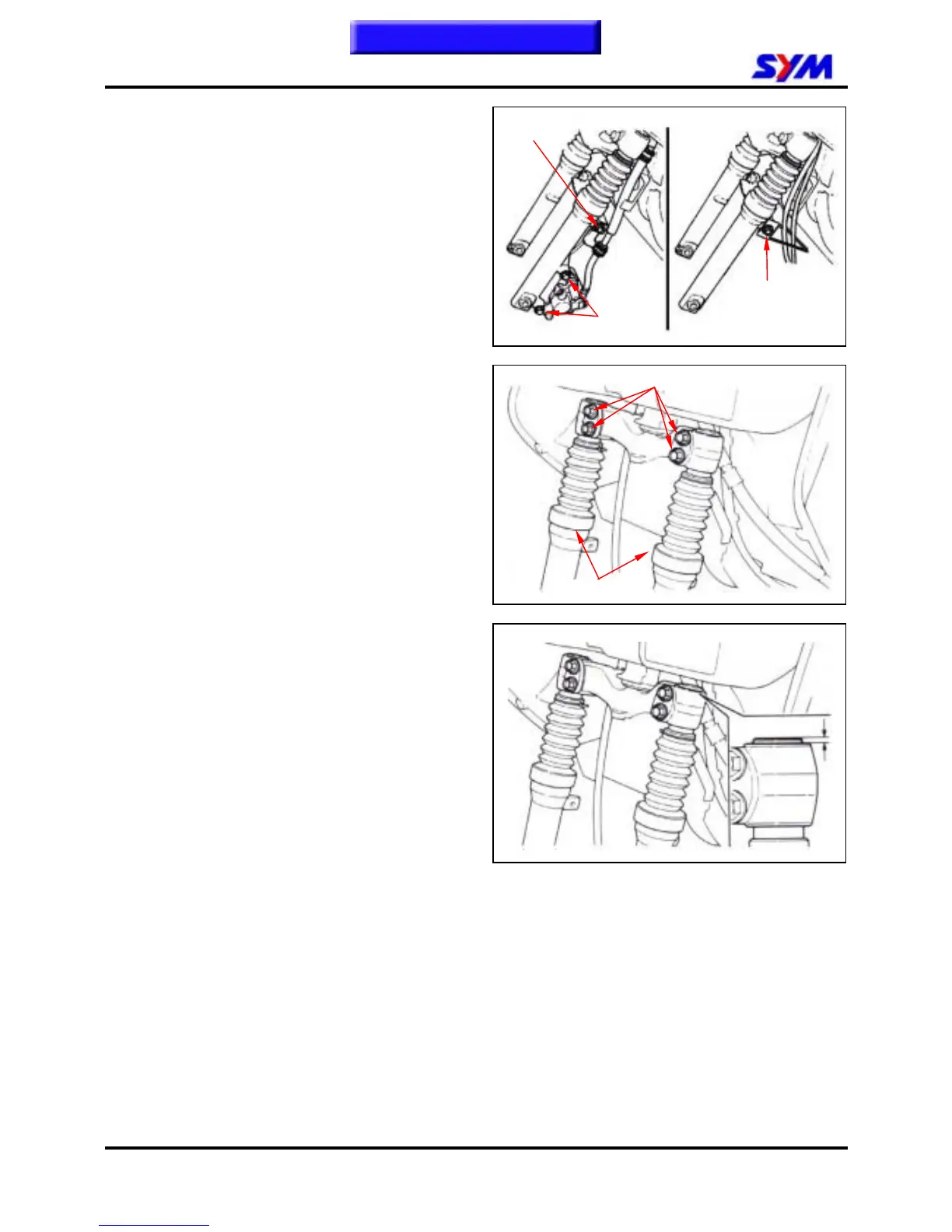

Front Shock Absorber
Removal
y Front cover
y Front under spoiler
y Front fender
y Front wheel
Disc Brake
Remove the caliper mounting bolts and the
caliper.
Take out the hose from hose clamp.
Remove the hose clamp mounting bolt and the
clamp.
Drum Brake
Remove the cable clamp mounting bolt and the
clamp.
Remove the front shock absorber upper bolt and
the shock absorber.
Installation
Align the cover flange with upper level of the
shock absorber clamp, and then tighten bolts.
Torque value: 2.7kgf-m
Install the removed components in reverse order
of removal procedures.
Caliper bolts
Shock absorber
Bolts
Hose clamp
Bolt
Cable clamp
Bolt
