3. LUBRICATION SYSTEM
3-5

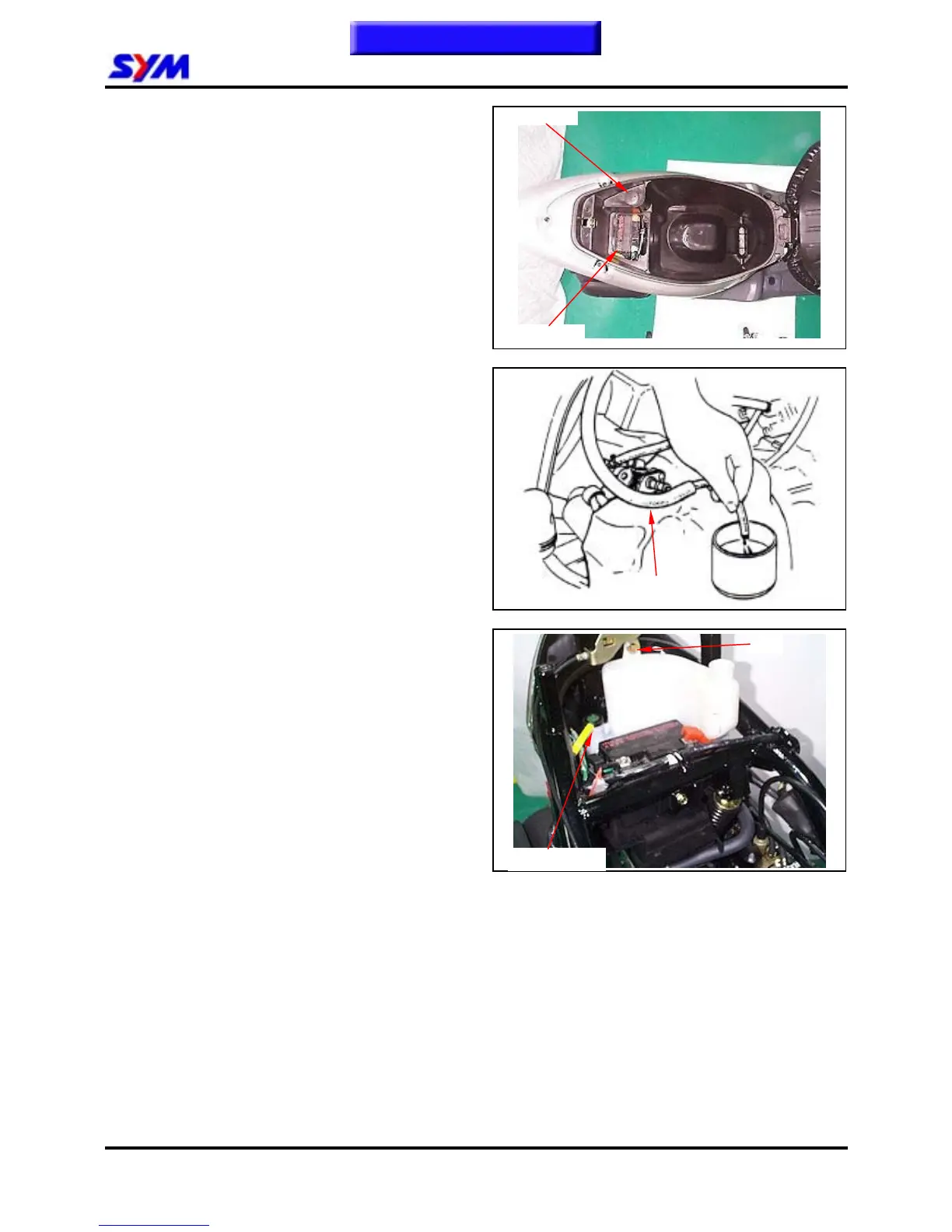

Oil Tank
Removal/Installation
Remove the battery and oil tank cap.
Remove the luggage box and seat.
Remove the oil input tube from oil pump, and
then drain oil to a clean container.
Remove the oil level switch wire of the oil
indicator.
Remove the mounting bolt on the oil tank upper
side, and then remove the oil tank.
Installation in the reverse order of removal.
Air bleeding the oil tubes after installed.
Blot
Oil level switch
Oil tank cap
Oil tube
