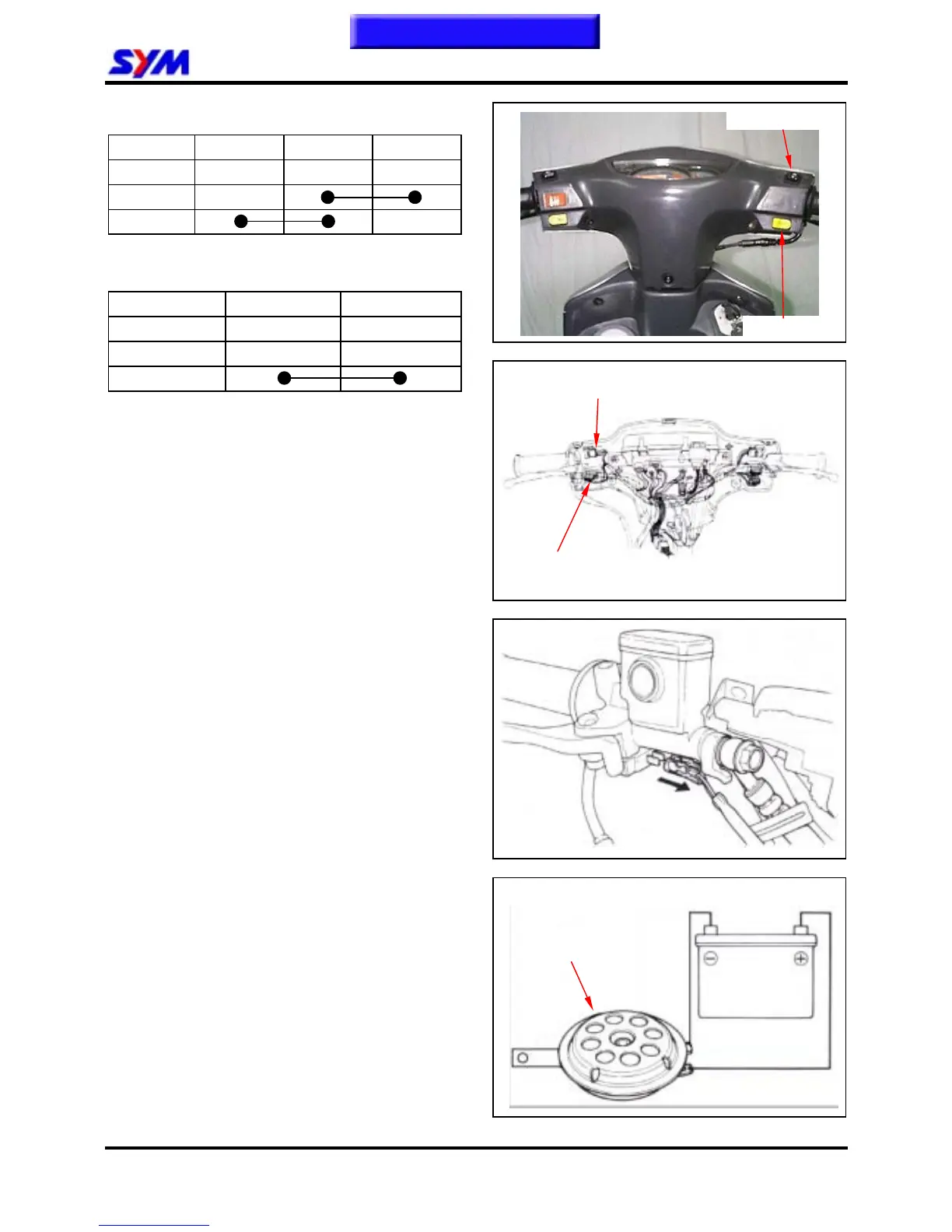

15. ELECTRICAL EQUIPMENT
15-17
Headlight Switch
Wire color Brown Yellow Pink
Mark HL CI RE
OFF
ON
Starter Switch
Wire color Yellow / Red Green
Mark ST E
FREE
PUSH
Front / Rear Brake Light Switch
If the switch is in continuity as braking, it is in
normal. The switch is non-adjustable.
Horn
If the horn give out sound as connecting to 12V
battery, it means that it is in normal.
Horn
This chapter Contents
Headlight switch
Starter switch
Headlight switch
connector
Starter switch
connector
