13. STEERING/FRONT WHEEL/SUSPENSION
13-6

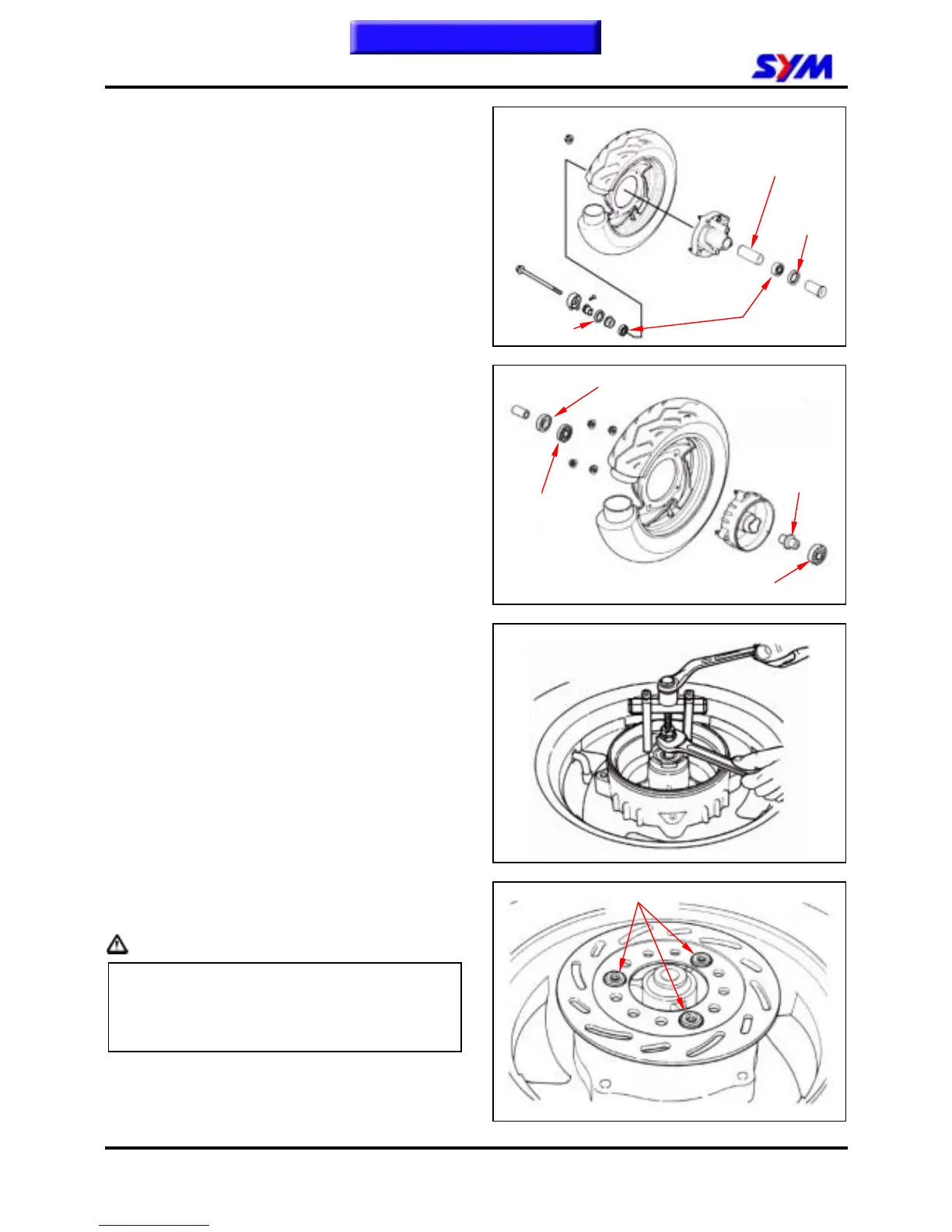

Remove wheel hub from wheel rim after 4 nut
removed.
Remove dust seal, bearing and side collar.
Special tools
Inner bearing puller (SYM-6204020)
Installation
Fill out the block of bearing by grease.
Drive the left bearing and install the dist. collar.
Install the right bearing.
Caution
y Carefully install the bearing in correct and
evenly.
y Bearing outer face should be faced up as
bearing installation.
Install the brake disc and then tighten the bolts
(disc brake).
Torque value: 4.5kgf-m
Dust seal
Bearing
Dist. collar
Bolts
DRUM TYPE
Dust seal
Dust seal
Bearing
Dist. collar
DISK TYPE
Bearing
