Sym DD 50 Service Manual

15. ELECTRICAL EQUIPMENT
15-10

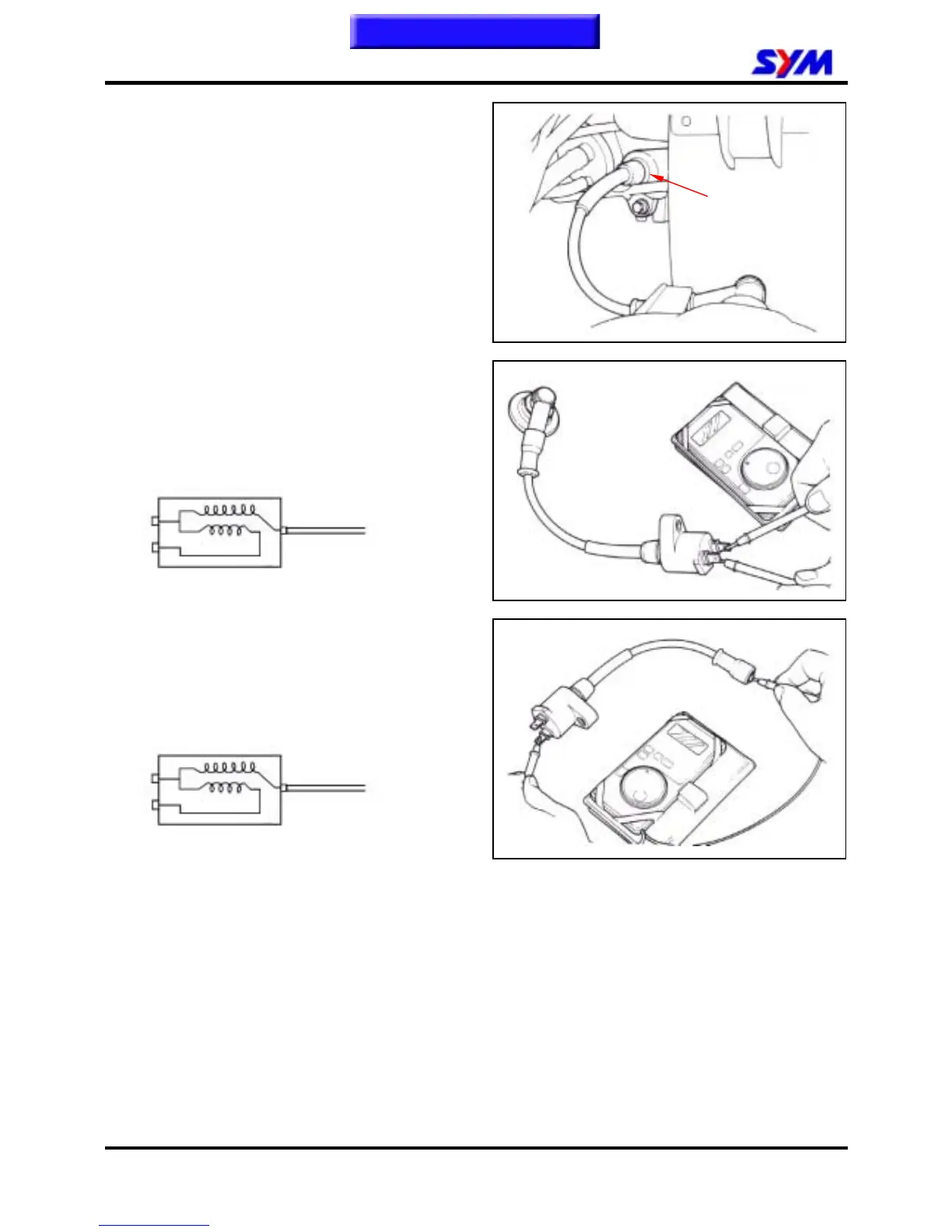

Ignition Coil Inspection
y Remove body cover.
Measure the primary coil resistance.
Resistance :0.19~0.23KΩ (A)→(B)
Measure the secondary coil resistance.
Resistance : 8.2~9.3KΩ (A)→(C)
Remove the high voltage coil cap, and measure
its negative (-) terminal for the secondary coil
resistance.
Resistance : 3.1~3.2KΩ (A)→(D)
(A)
(B)
(C)
(D)
Ignition coil
(A)
(B)
(C)
(D)
