7. “V” TYPE BELT DRIVE SYSTEM/KICK-STARTER
7-14

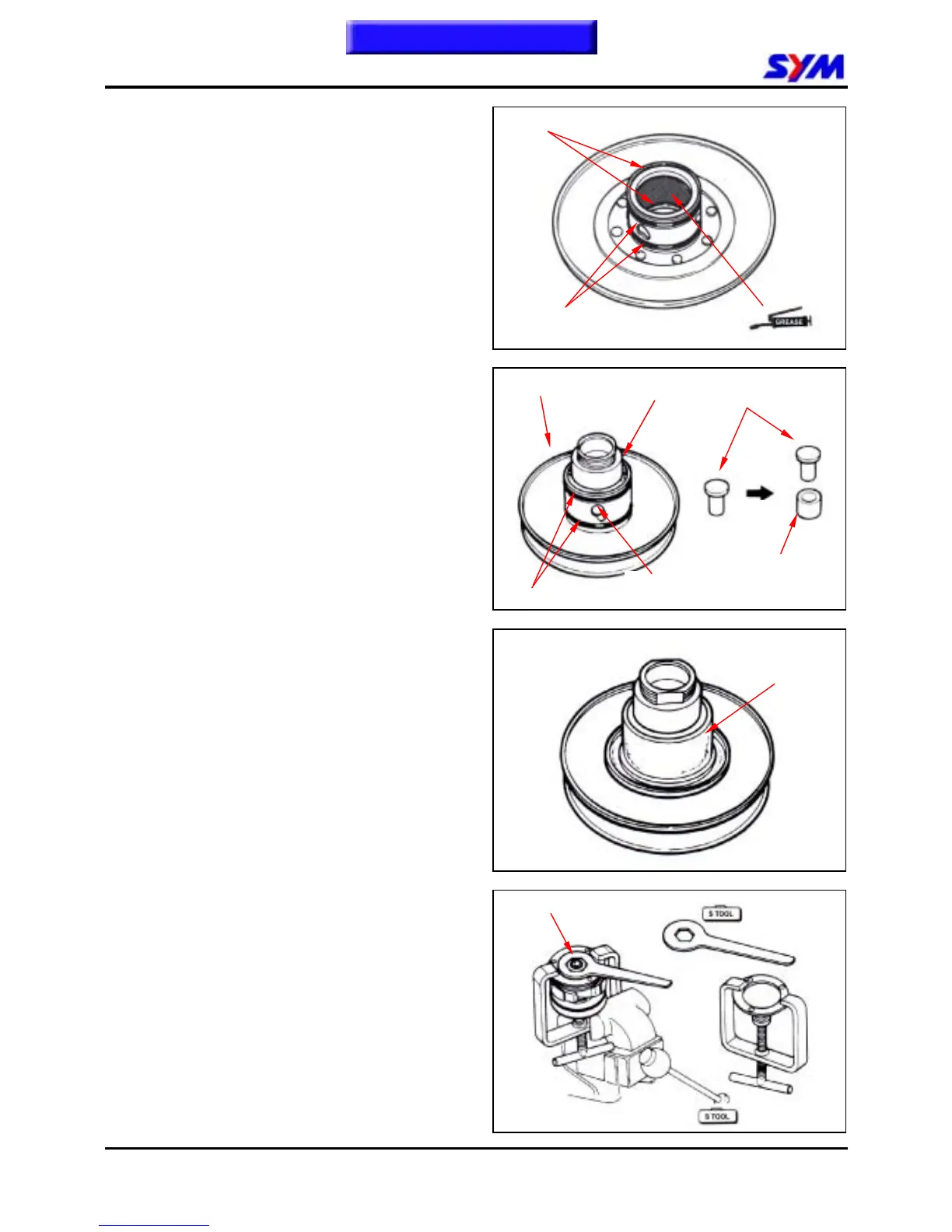

Installation of Clutch/Driven Pulley
Assembly
Install new oil seal and O-ring onto sliding pulley.
Apply with specified grease to lubricate the inside
of sliding pulley.
Install sliding pulley onto driven pulley.
Install guide pin and guide pin roller.
Install socket.
Install driven pulley, spring and clutch into clutch
spring compressor, and press down the
assembly by turning manual lever until mounting
nut that can be installed.
Hold the compressor by bench vise and tighten
the mounting nut to specified torque with clutch
nut wrench.
Remove the clutch spring compressor.
Torque value: 5.0~6.0kgf-m
Install clutch/driven pulley and drive belt onto
drive shaft.
Oil seal
Specified grease
O-ring
or
O-ring
Oil seal
Guide pin
Sliding pulley
Guide pin roller
Guide pin
Mounting nut
Socket
Clutch nut
wrench
Clutch spring
compressor
