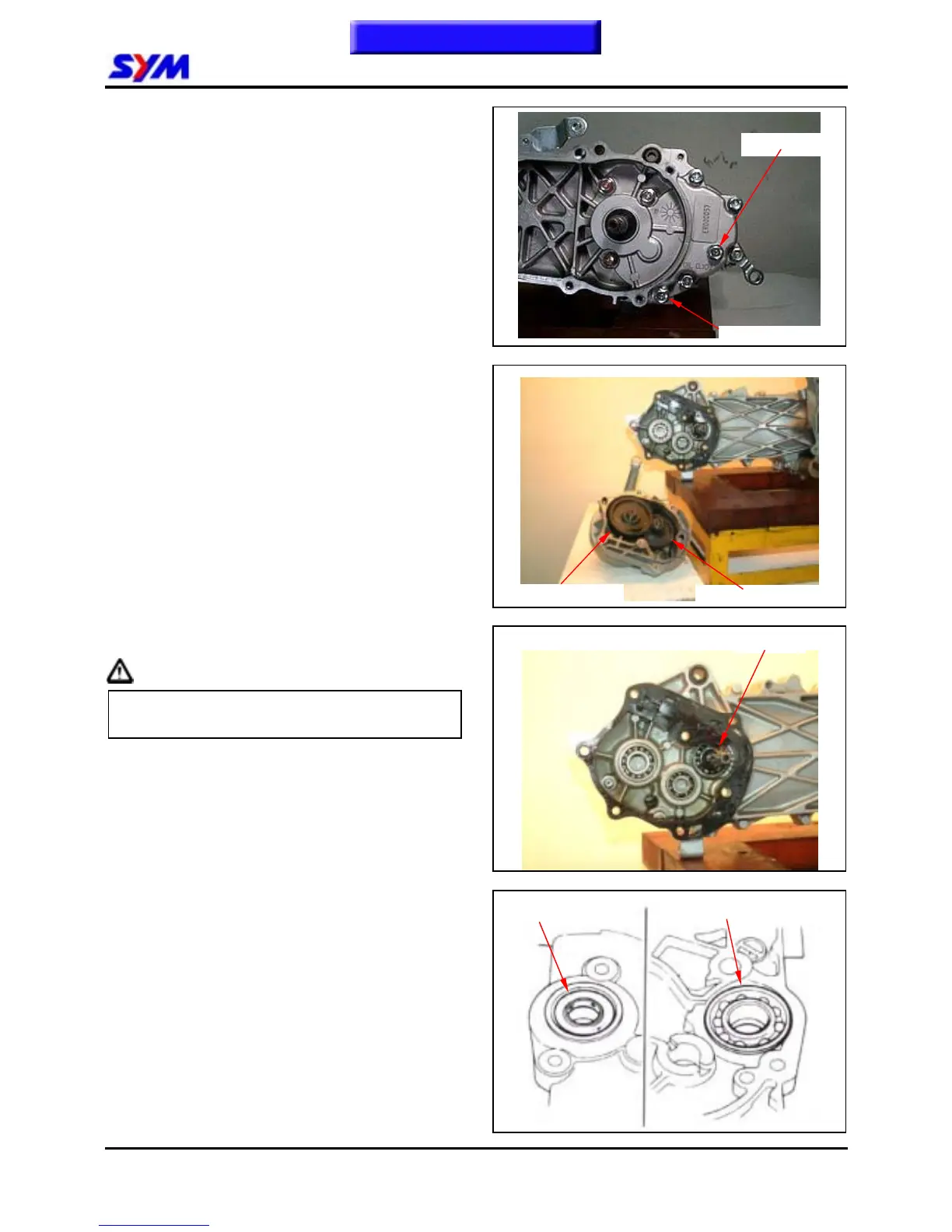

8. FINAL DRIVING MECHANISM
8-3
Disassembly of Final Driving
Mechanism
Remove driven pulley
Drain gear oil out from gearbox.
Remove rear wheel.
Remove gearbox cover mounting bolts from the
clutch side and then remove the cover from the
rear wheel side.
Remove final gear, final shaft and counter gear,
counter shaft.
Remove the drive shaft from left crankcase.
Caution
y The bearing must be replaced when
removing the drive shaft.
Remove drive shaft oil seal and bearing from left
crankcase.
Final gear & shaft
Counter gear & shaft
Oil filling hole
Bearing
Drive shaft
Oil draining hole
Oil seal
