10. A.C. GENERATOR/STARTING CLUTCH SYM
10-6

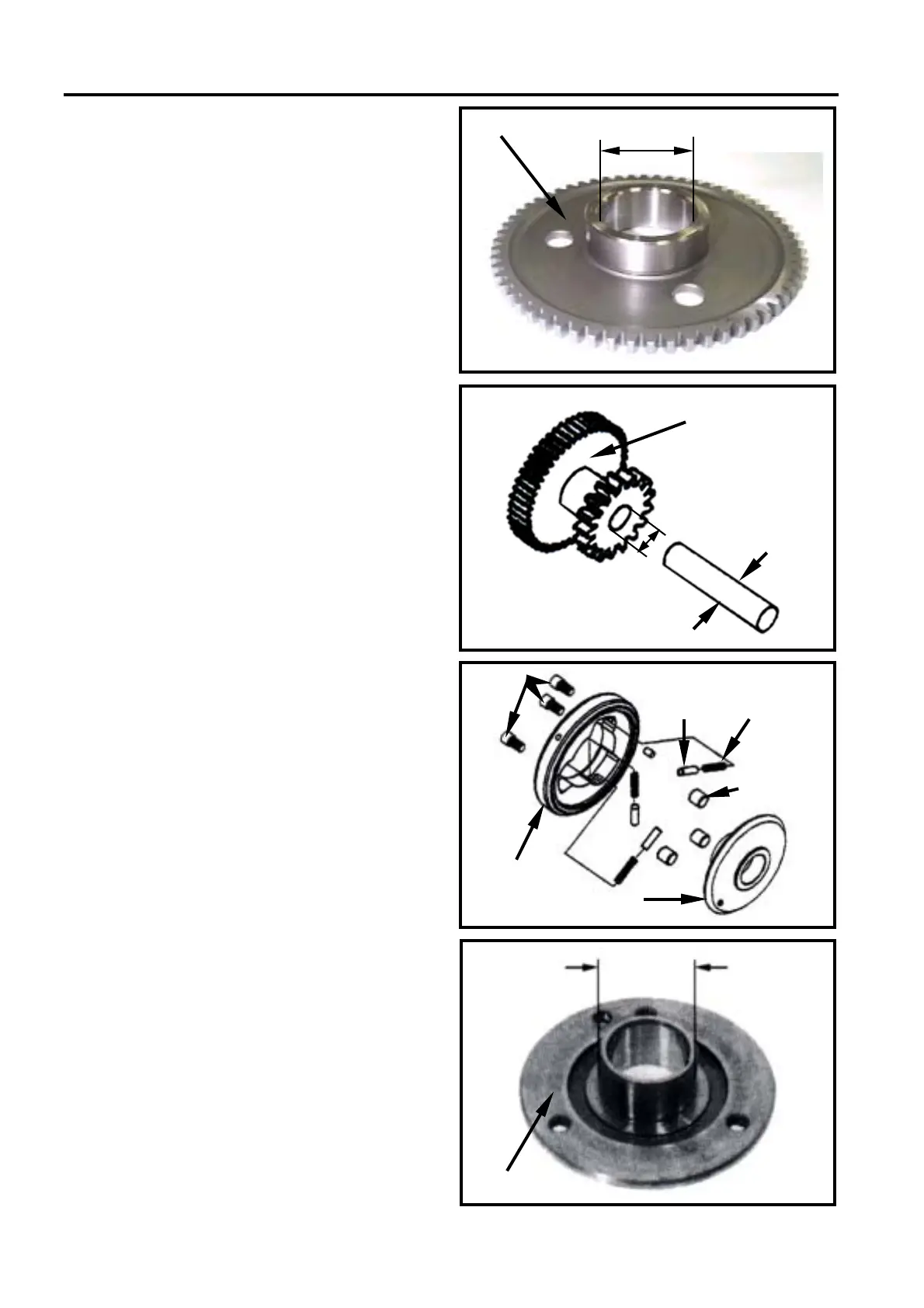

Check the starting driven gear for wear or
damage.
Measure the ID of the starting driven gear.
Service Limit:
ID: 32.06 mm or less
Check the starting reduction gear and shaft
for wear or damage.
Measure the ID of the starting reduction
gear.
Service Limit:
ID: 10.05 mm or less
Measure the OD of the starting reduction
gear.
Service Limit:
ID: 9.94 mm or above
Disassembly
Remove the hex blots (3 bolts) inside the
starting clutch.
Separate the clutch body and the clutch
cover.
Remove the rollers, plugs, and springs on
the one way clutch.
Check each rollers and plugs for wear or
damage.
Install rollers, plugs and springs.
Measure the OD of the starting clutch cover.
Service Limit:
ID: 27.94 mm or above
Starting reduction
gear
Spring
Roller
Plug
Clutch cove
r
Hex blots
Starting driven gear
Starting clutch
cover

Sym FIDDLE 125 Specifications

General

Displacement	124.6 cc
Cooling System	Air Cooled
Transmission	CVT
Front Suspension	Telescopic Fork
Front Brake	Disc
Rear Brake	Drum
Front Tire	110/70-12
Rear Tire	120/70-12
Seat Height	780 mm
Engine Type	4-Stroke
Fuel Tank Capacity	6.5 L
