SYM 10. A.C. GENERATOR/STARTING CLUTCH
10-7
Installation
Install the components in the reverse
procedures of removal.
Caution
Torque value: 1.0~1.4kgf-m

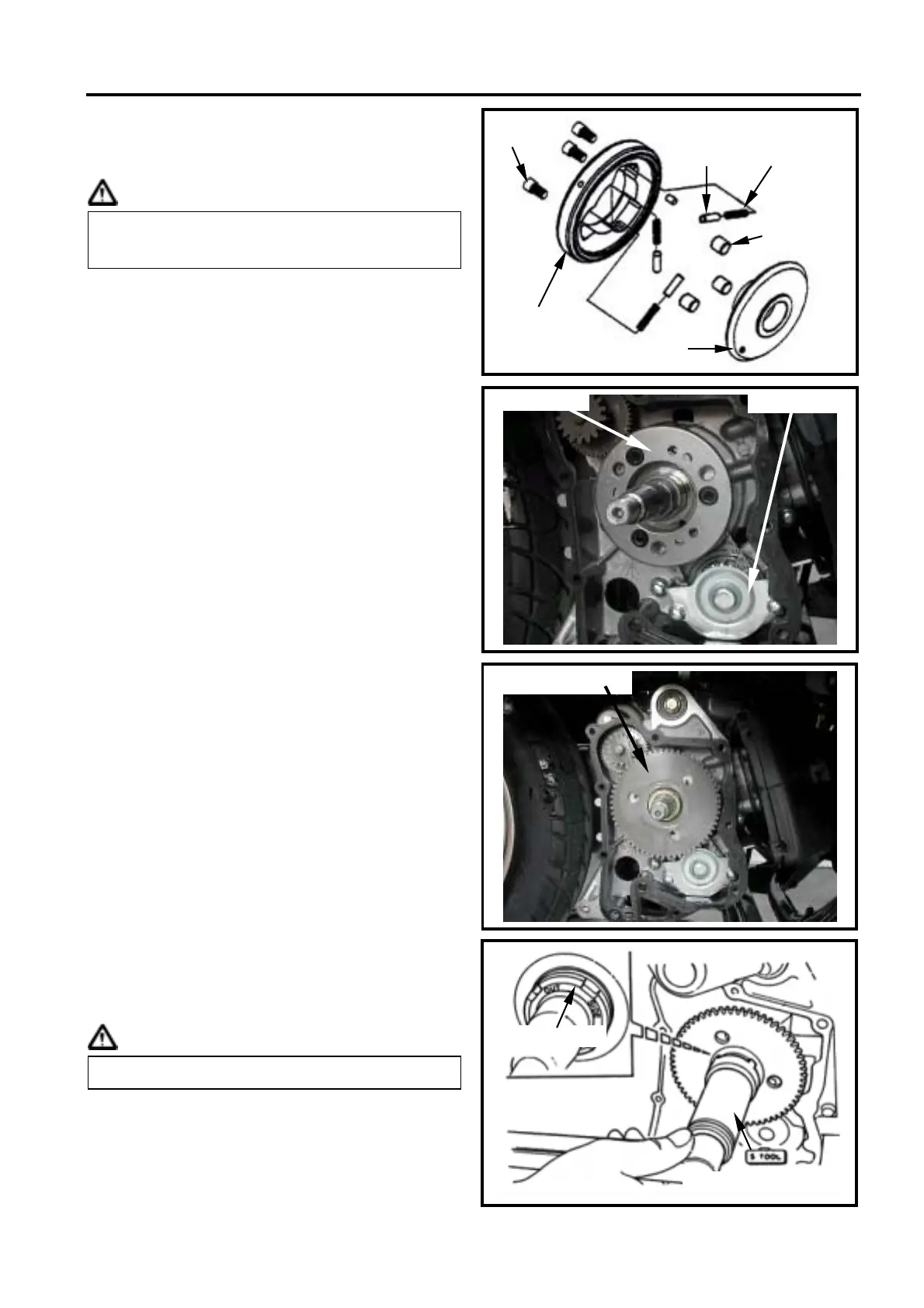

Starting clutch Installation
Install reduction gear shaft and reduction gear.
Install starting clutch.
Install the starting driven gear onto the
starting clutch.
Hold the starting driven gear with the
universal fixture.
Tighten the 22mm anti-loosen lock nut and
gasket.
Caution
Special service tools:
Anti-loosen lock nut socket
Universal fixture
Torque value: 9.0~10.0kgf-m
Add adhesive onto the thread of hex
socket bolt.
A
dd en
g
ine oil onto the thread of lock nut.
Lock nut
Lock nut socket
Starting driven gear
Spring
Roller
Plug
Clutch cove
r
Clutch body
Hex socket
bolt
Starting clutch
Oil pump cover
