12. BODY COVER SYM
12-6
FRONT INNER BOX

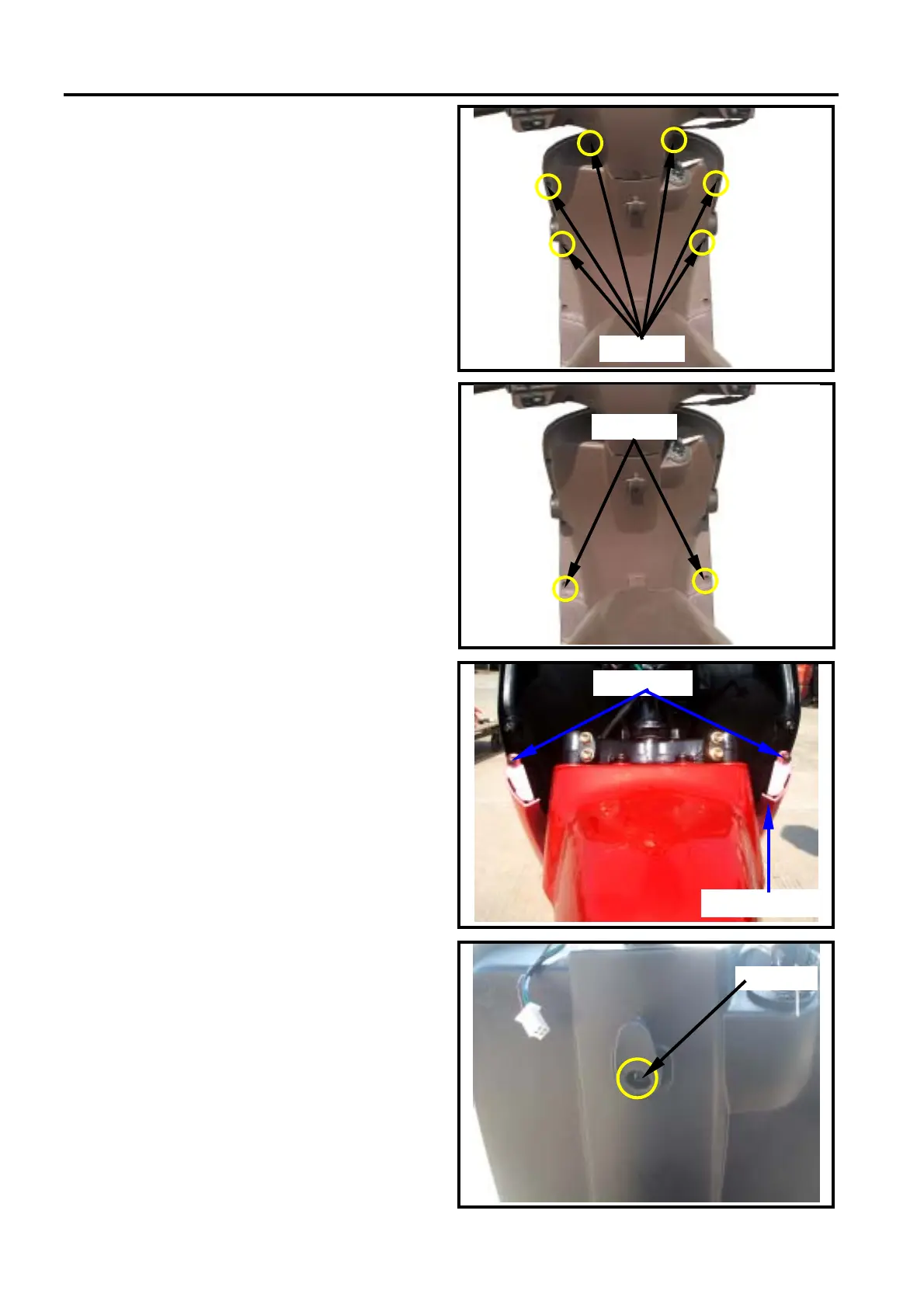

Removal
Remove the front cover.
Remove the 6 mounting screws of front
cover from the inner box.
Remove the 1×2 mounting screws of front
spoiler from the inner box.
Remove the 1×2 mounting screws of front
spoiler from the inner box.
Remove the screw on the front inner box.
1 screw
6 screws
2 screws
2 screws
front spoile
r
