Sym FIDDLE 125 User Manual

SYM 12. BODY COVER
12-7

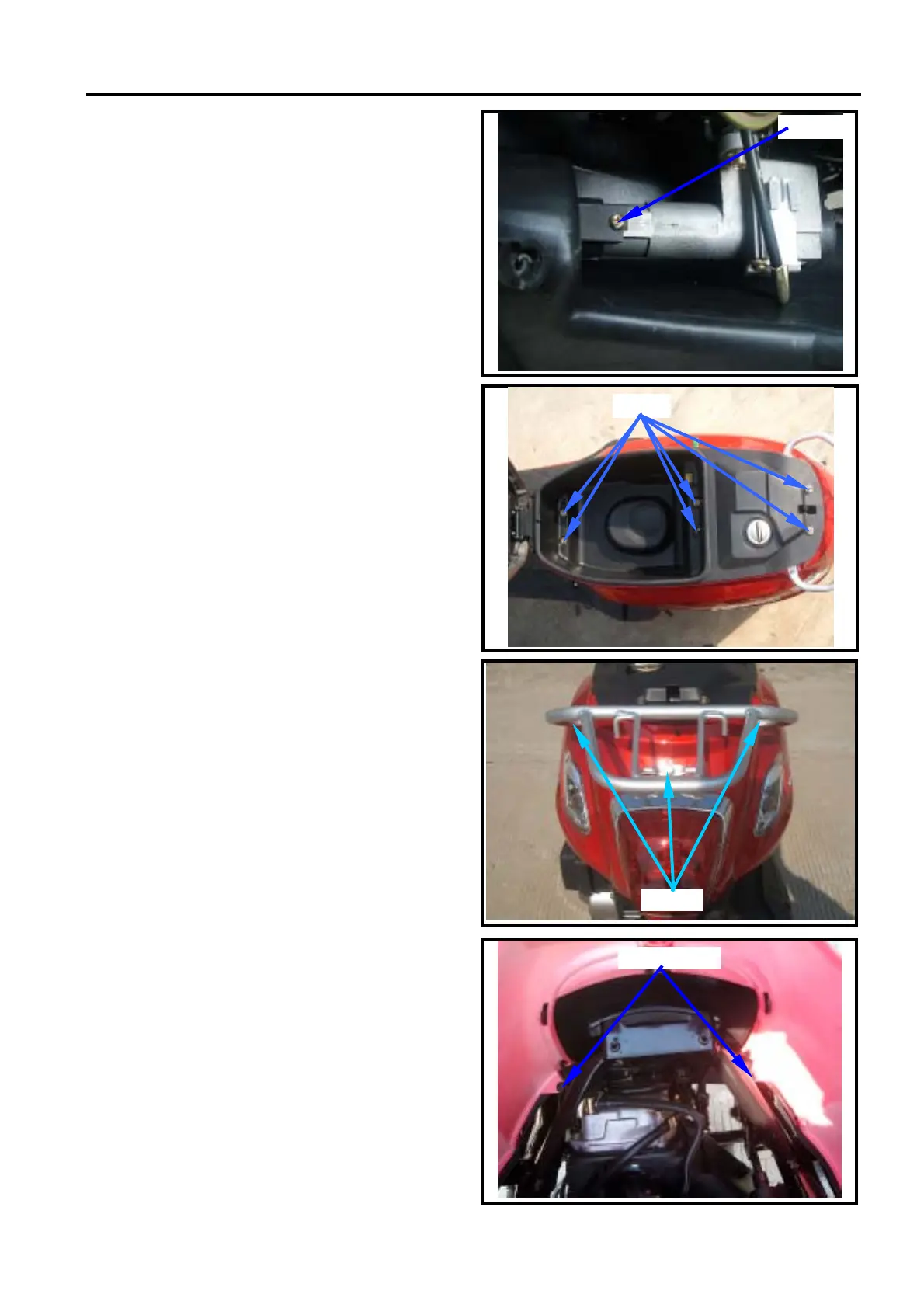

Remove the screw on the main switch.
Remove the main switch cover.
Remove the front inner box A.
Installation
Install the inner box A and the front inner box
B according to the reverse procedure of
removal.
BODY COVER/REAR FENDER
Removal
Open the seat.
Remove the luggage box. (6 bolts)
Remove the rear carrier. (3 bolts)
Remove the 1×2 mounting screws between
the body cover and frame.
3 bolts
1 screw
2 screws
6 bolts

Sym FIDDLE 125 Specifications

General

Displacement	124.6 cc
Cooling System	Air Cooled
Transmission	CVT
Front Suspension	Telescopic Fork
Front Brake	Disc
Rear Brake	Drum
Front Tire	110/70-12
Rear Tire	120/70-12
Seat Height	780 mm
Engine Type	4-Stroke
Fuel Tank Capacity	6.5 L
