12. BODY COVER SYM
12-8

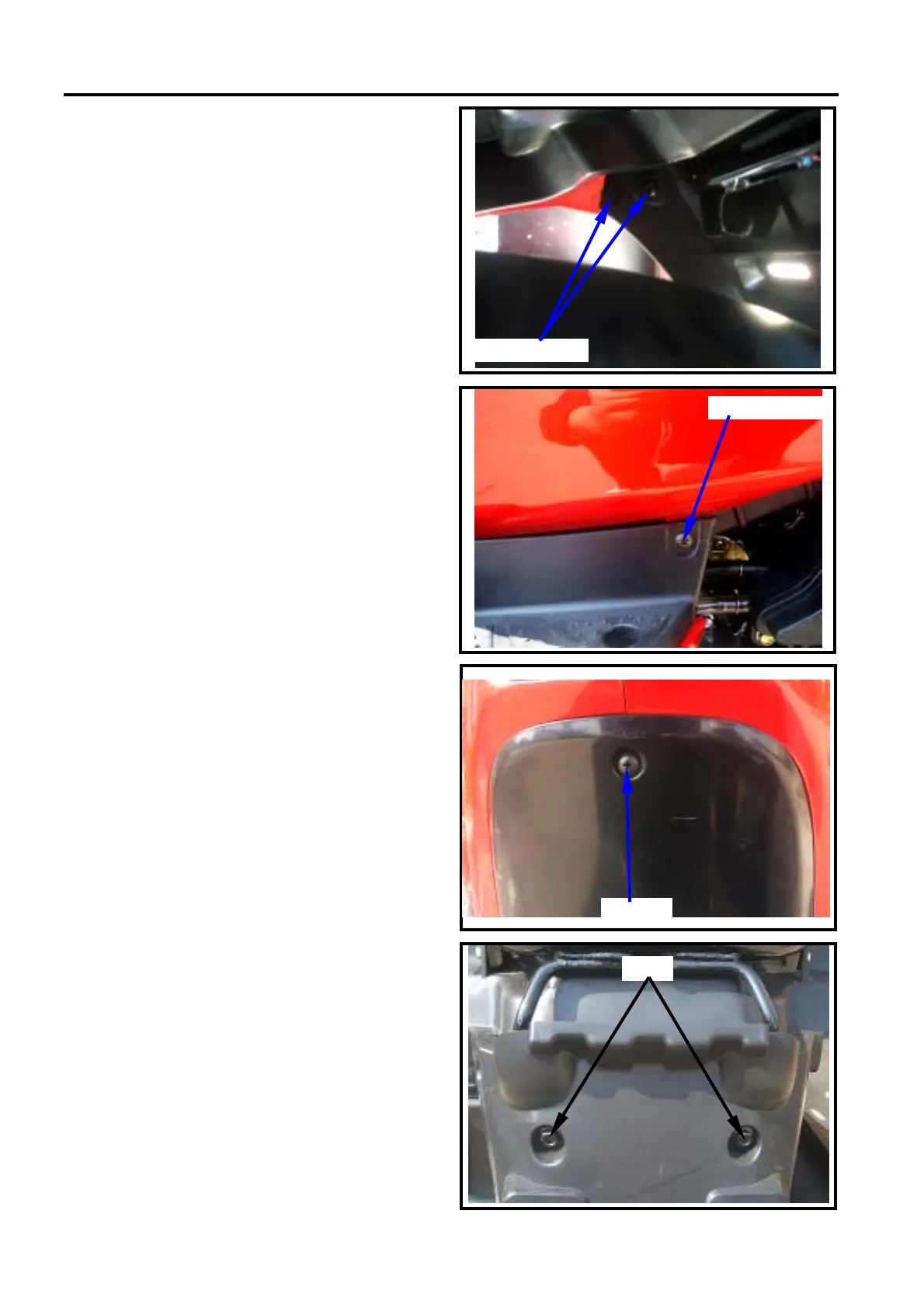

Remove the 2×2 mounting screws between
the body cover and the rear fender.
Remove the 1×2 mounting screws between
the body cover and the floor panel.
Remove the 1 mounting screw between the
body cover and front center cover.
Remove the 2 mounting bolts of the rear
fender.
Remove the left/right body cover.
Remove the rear fender.
Installation
Install the body cover and rear fender
according to the reverse procedure of
removal.
2 bolts
2×2 screws
1 screw
1×2 screws
