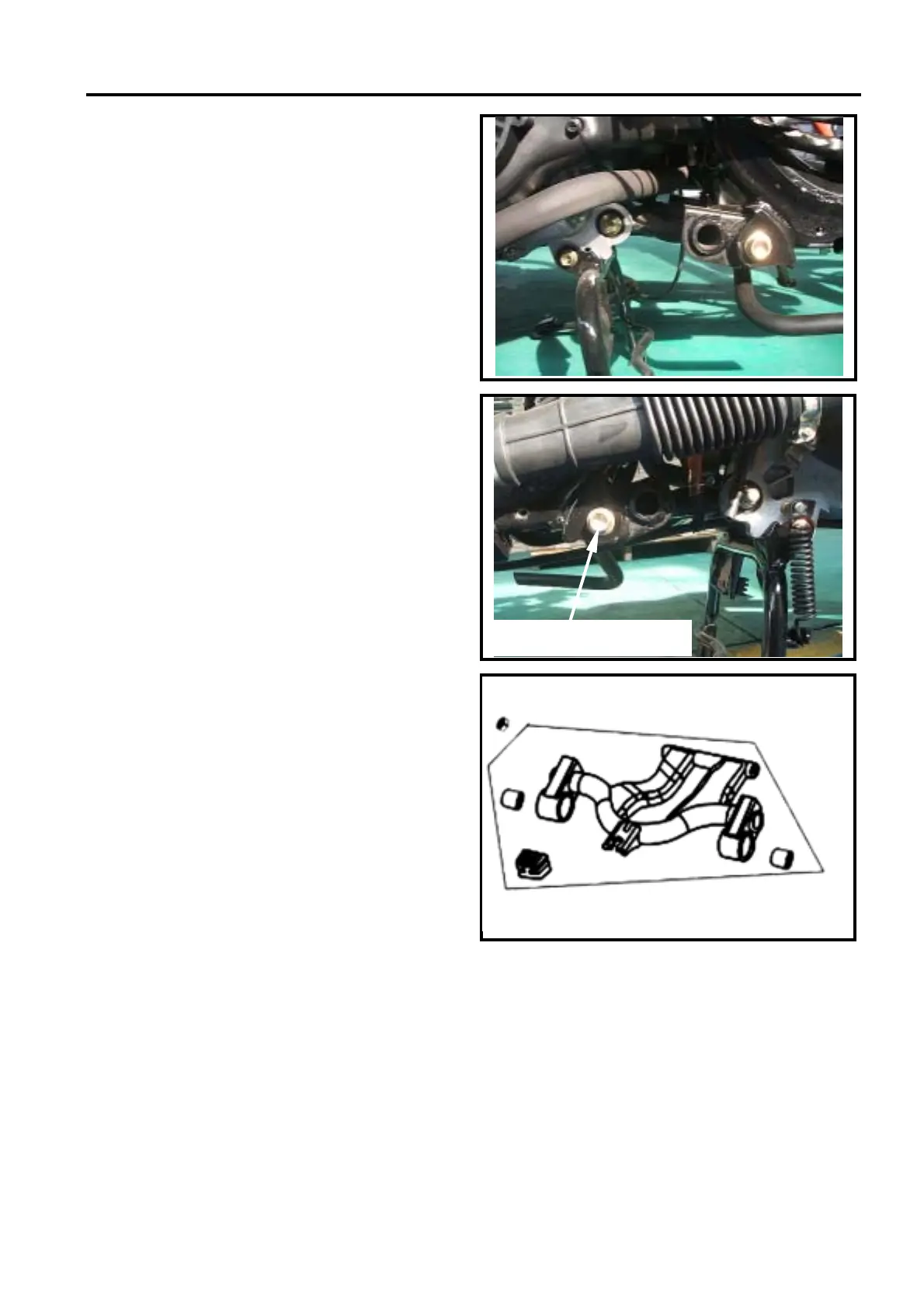

SYM 5. REMOVAL OF ENGINE
5-7
ENGINE SUSPENSION FRAME
Removal
Remove the right side bolt of engine
suspension frame.
Remove the left side bolt of engine
suspension frame.
Check if the engine suspension frame
bushing and cushion rubber for damage. If
so, replace with new ones.
Installation
Tighten the bolts and nuts of engine
suspension frame.
Engine suspension frame nut:
Torque Value: 4.5~5.5 kgf-m
Bolt of engine suspension
frame (left side)
