5. REMOVAL OF ENGINE SYM
5-8

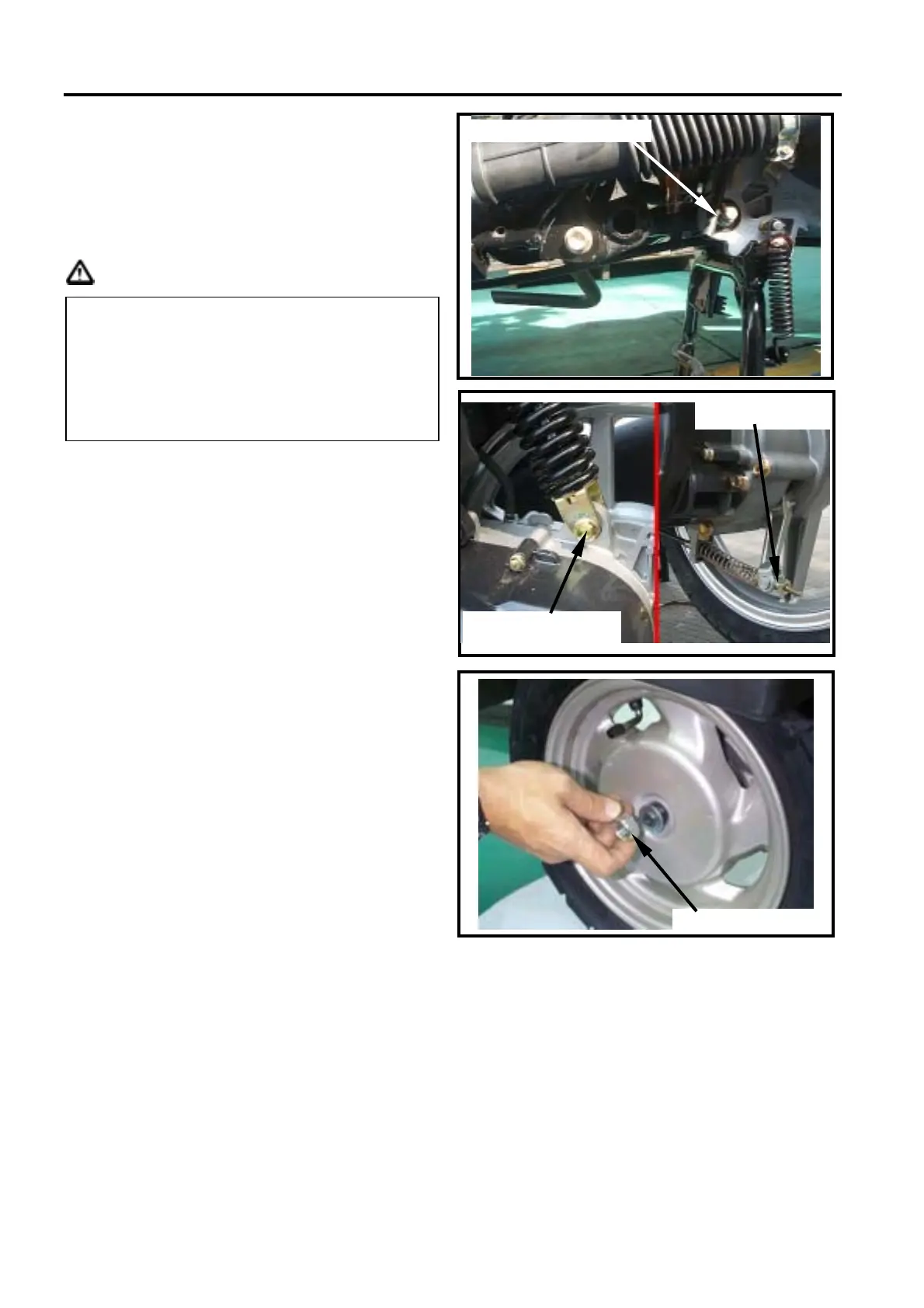

INSTALLATION OF ENGINE
Check if the bushings of engine suspension
frame and shock absorber for damaged. If so,
replace with new ones.
Install the engine according to the reversing
order of removal.
Caution
Engine suspension nut:
Torque Value: 4.5~5.5kgf-m
Rear shock absorber bolt:
Torque Value: Top: 3.5~4.5kgf-m
lower: 2.4~3.0kgf-m
Rear wheel axle nut:
Torque Value: 11.0~13.0kgf-m
 Notice both feet and hands safety for
squeezing as engine installation.
 Do not bent or squeeze each wires or
hose.
 Route all cables and wires in
accordance with the routine layout.
Engine suspension nut×1
Rear shock
absorber lower bolt
Brake cable nut
Rear wheel axle nut×1

Sym FIDDLE 125 Specifications

General

Displacement	124.6 cc
Cooling System	Air Cooled
Transmission	CVT
Front Suspension	Telescopic Fork
Front Brake	Disc
Rear Brake	Drum
Front Tire	110/70-12
Rear Tire	120/70-12
Seat Height	780 mm
Engine Type	4-Stroke
Fuel Tank Capacity	6.5 L
