Sym HD 125 Service Manual

13. BODY COVER
13-10

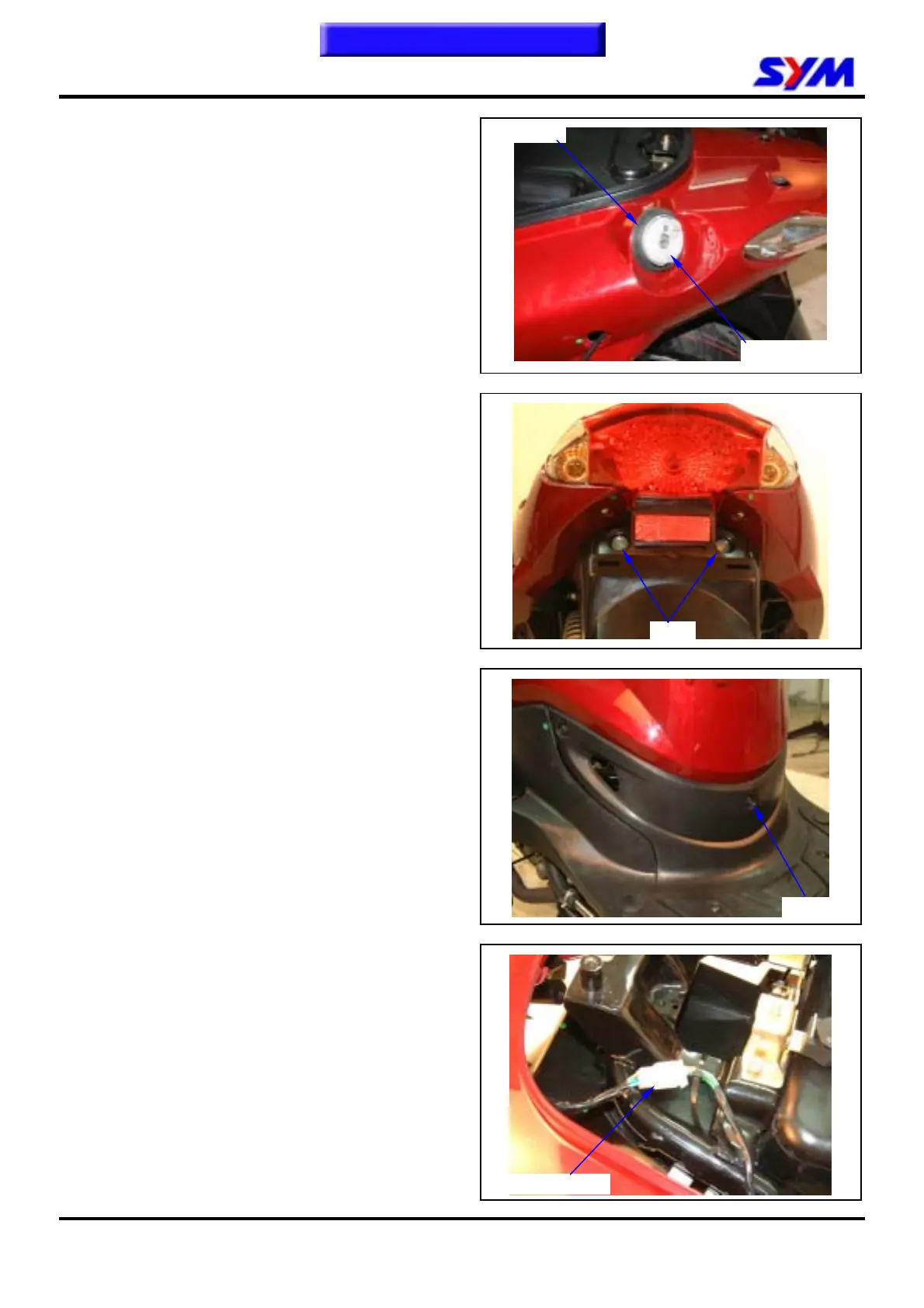

Body cover
Remove
Remove luggage box and rear carrier.
Remove the fuel tank cap and rubber.
Loosen 2 bolts from the taillight underneath.
Loosen 1 screw from the center cover.
Remove electric line coupler from the taillight and
seat look cable.
Remove right and left body covers.
Installation
Install in reverse order of removal procedures.
Fuel tank cap
2 bolts
1 screw
Taillight coupler
Rubber
