Ignition System

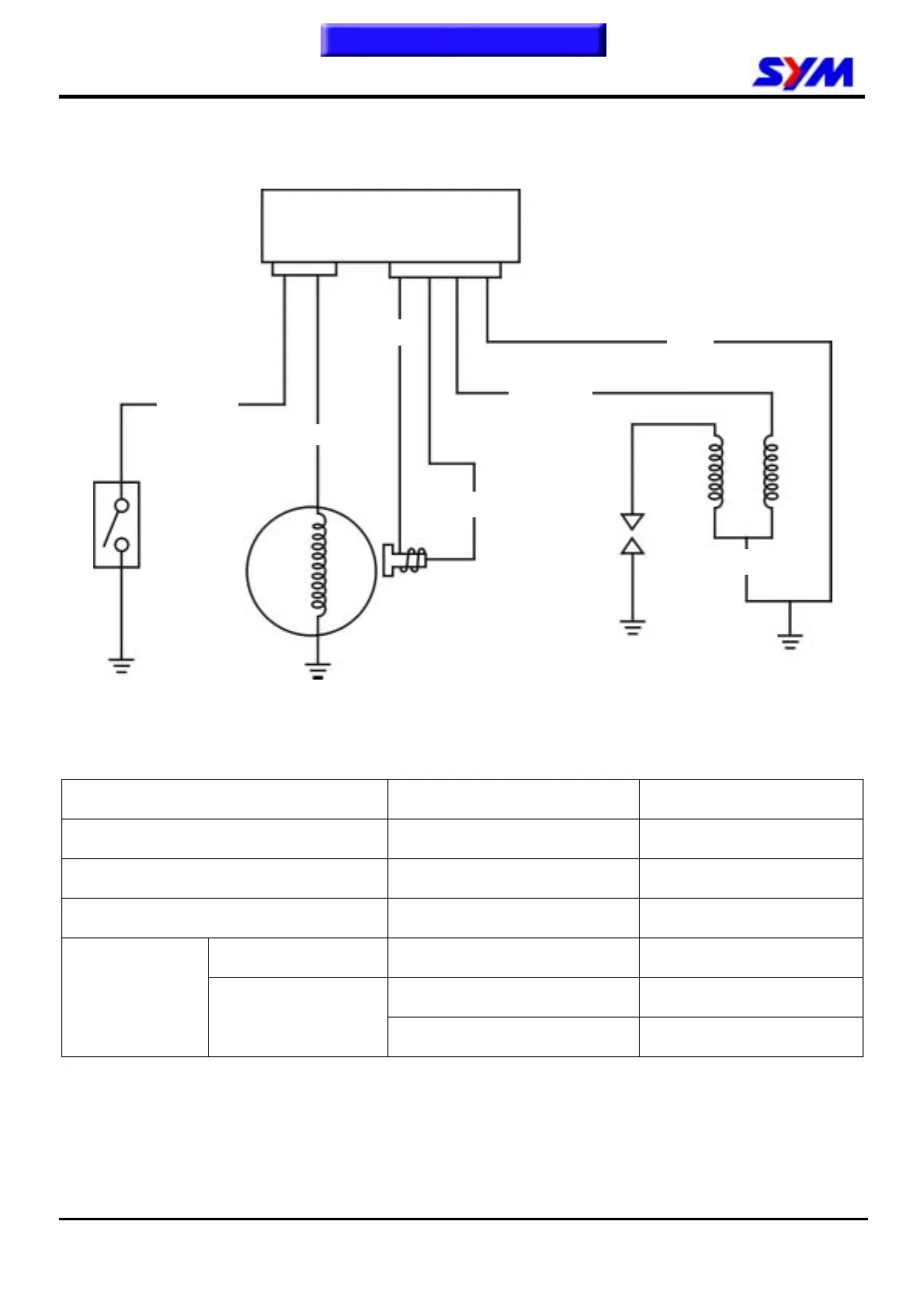

Ignition circuit diagram
C.D.I unit
Disconnect connectors of the C.D.I unit.
Check the following connectors as indicated in the table at the harness side.
Item Points to check Result
Main switch Black/white ~ green -
Exciting coil Black/red ~ green 100~200Ω
Pulse generator Green/White ~ Blue/yellow 50~170Ω
Primary circuit Black/yellow ~ green
0.17±10%Ω
Black/yellow ~ with no cap
3.6±10%Ω
Ignition coil
Secondary circuit
Black/yellow ~ with cap 7.3~11KΩ
Main switch
Exciting coil
Pulse generator
Spark plug
Ignition
coil
CDI. Unit
Green
Black/yellow
Green
Black/red
Green/white
Blue/Yellow
Black/white
