Sym HD 125 - 14. BRAKE

14. BRAKE
14-1
Mechanism Diagram-Front Disk Brake 14-1
Mechanism Diagram-Rear Drum Brake14-2
Maintenance Description······················ 14-3
Trouble Diagnosis ································· 14-4
Disk Brake System Inspection ············· 14-5
Adding Brake Fluid································ 14-6
Brake fluid replacement / Air-bleed···· 14-7
Disk Brake-Caliper······························· 14-8
Brake Disk ············································ 14-9
Disk Brake - Master Cylinder ·············· 14-9
Rear Drum Brake·································· 14-12

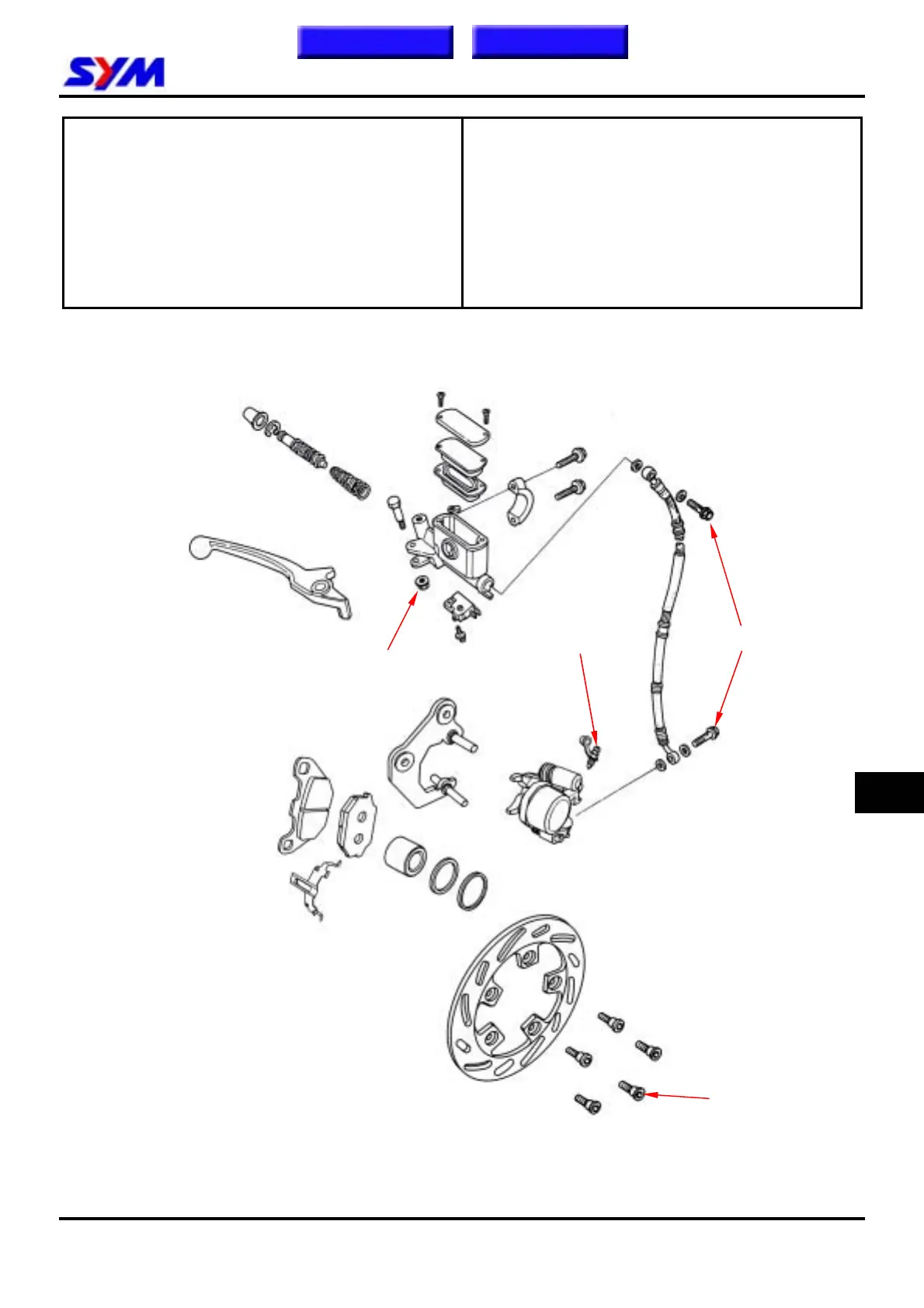

Mechanism Diagram-Front Disk Brake
4.0~4.5kgf-m
0.8~1.2kgf-m
0.5~0.6kgf-m
3.0~4.0kgf-m
