15. STEERING / FRONT WHEEL / FRONT CUSHION
15-7

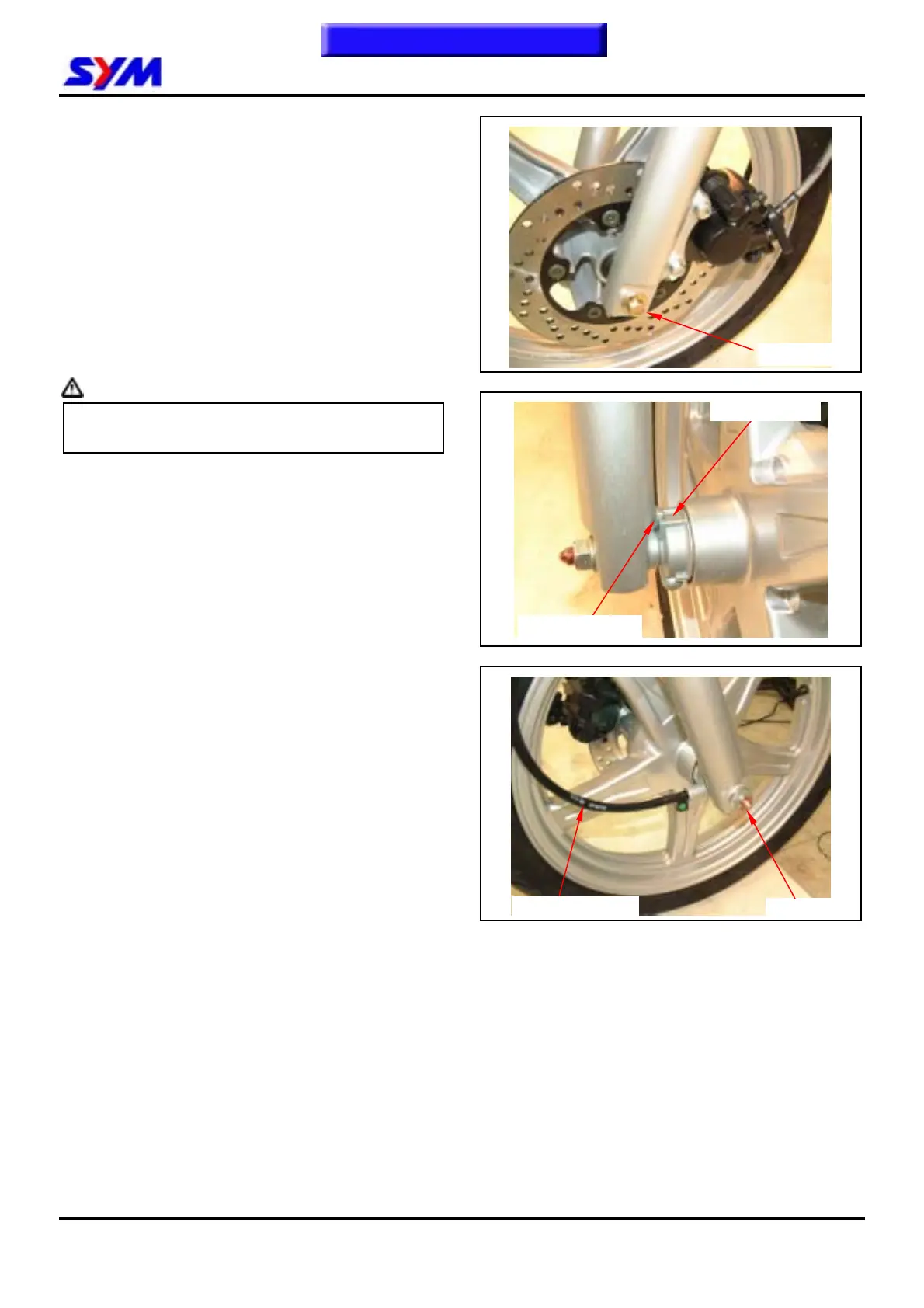

Installation
Open out brake lining with brake caliper.
Place the front wheel between the front cushion.
Caution
Align the gear box groove with the stopper
flange.
Insert the wheel axle into the wheel and the install
the wheel axle nut.
Tighten the nut.
Torque value: 5.0~7.0kgf-m
Connect the speedometer cable to the
speedometer gear box.
Gear box groove
Shaft nut
Speedometer cable
Front fork stopper
Wheel axle
