SYMEO LPR-1DHP User Manual

SYMEO Local Positioning Radar System
LPR-1DHP
Product Documentation
Overview of the LPR-1DHP system
Copyright © Symeo GmbH 2012
Page 10 of 40

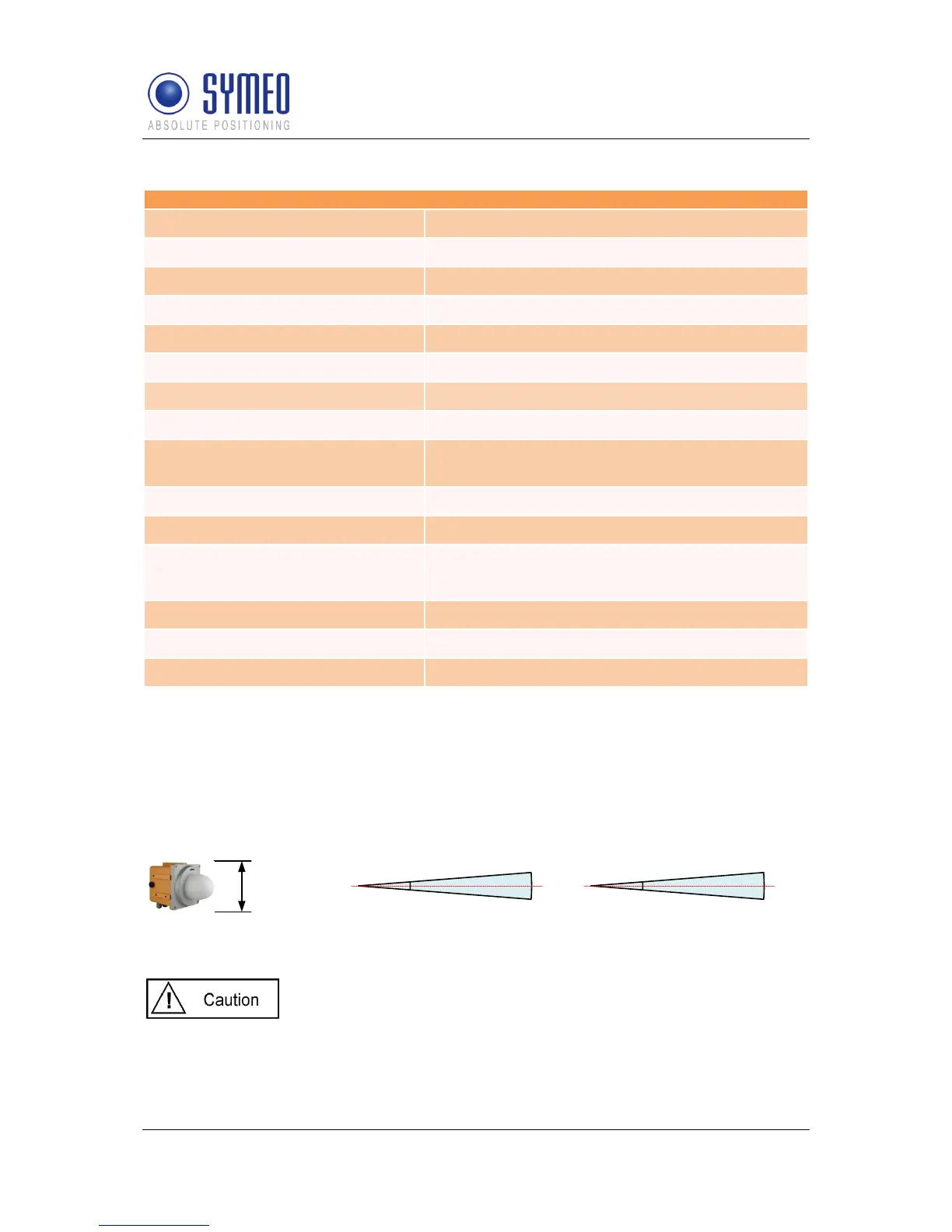

2.1 Data sheet of LPR-1DHP Station
Overview: Technical Data
Frequency range
61.000 MHz - 61.500 MHz
Transmitting power
20dBm EIRP
Measuring distance
up to 500 m *
1
Typical accuracy
Up to ± 1 cm *
1
Repeat rate
Max. 25 Hz
Power supply
10-36 V DC
Power consumption
Max. 15 W
Ambient temperature
-40°C to +75°C
Protection class
IP 65 with suitable cables (round, outside diameter
4.5 – 10 mm)
Casing dimensions(LxWxH);
205 x 140 x 140 mm
Weight
0,9kg
Hardware Interface
Ethernet TCP/IP or UDP
USB (Configuration)
Data interface
Symeo LPR-1D protocol
Antenna
integrated
Compliance
FCC (Part 15.255)
*
1
Depending on the application conditions
2.2 Opening angle LPR-1DHP station
The LPR-1DHP station has an integrated antenna with +/-2° opening angle.
Figure 2: Opening angle LPR 1DHP station
To achieve operation and range as specified both system units must
have the same orientation, e.g. LED display oriented towards the roof
or the same wall.
LPR 1DHP Station
A
A = 140mm
Integrated antenna
horizontal
4°
-3 dB
0 dB
-3 dB
vertical
4°
-3 dB
0 dB
-3 dB
