4.2 LPR-1DHP configuration with USB interface
4.2.1 Electrical connection
Power supply is connected using the power supply terminal (A4), USB is connected using
terminal (B6).
Figure 7 depicts the pin assignment of (A5). The pin assignment of (A4) is similar to (A4) as
described in section 4.1.1.
Polarity reversal or otherwise faulty connection can damage the LPR-
1DHP station.

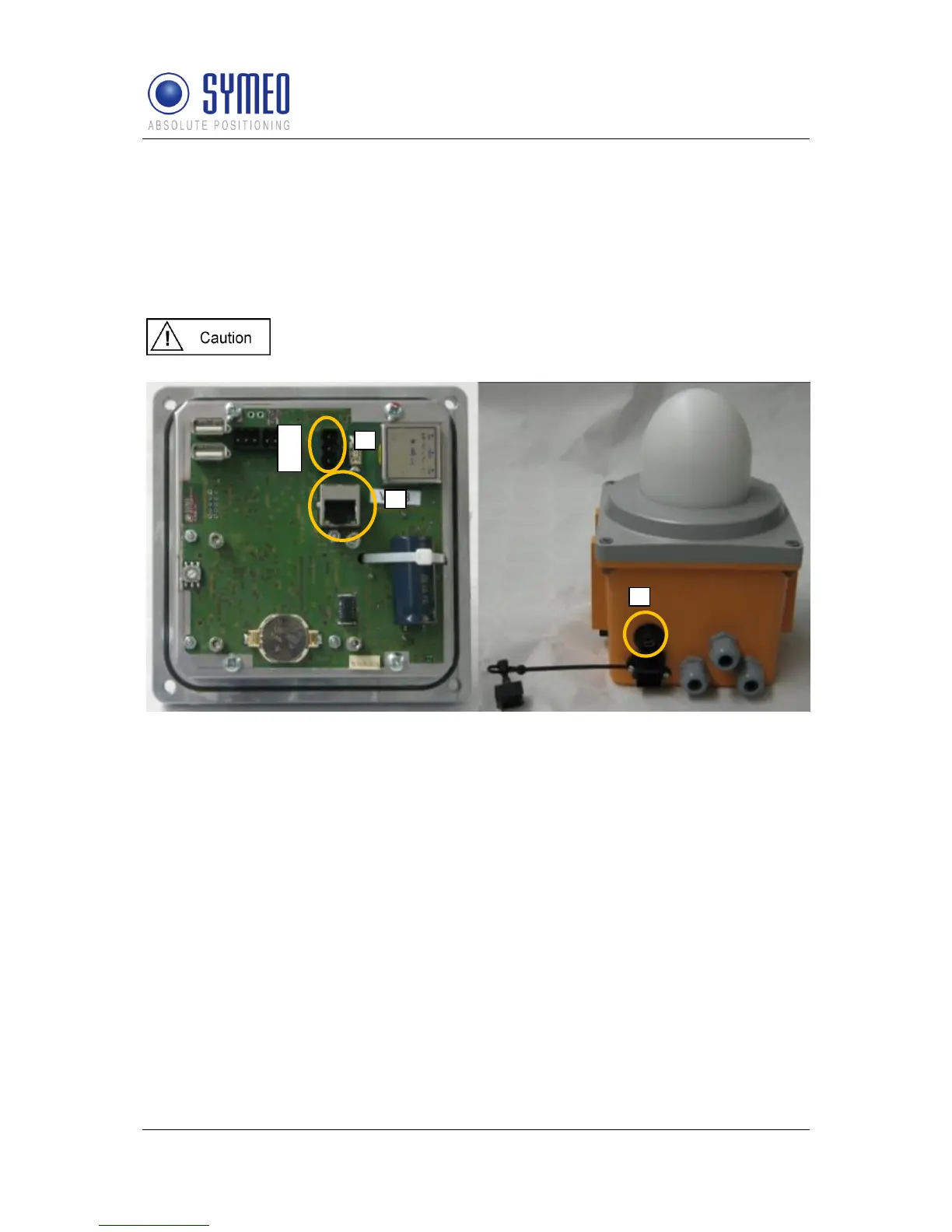

Figure 7: Electrical connections
4.2.2 Mode of operation
For configuration of LPR-1DHP stations with USB interface the rotary switch (S2) has to be set to
position 0 (see Figure 7).
B2
B6
+ - +
A4
