SYMEO LPR-1DHP User Manual

SYMEO Local Positioning Radar System
LPR-1DHP
Product Documentation
Component setup of the LPR-1DHP station
Copyright © Symeo GmbH 2012
Page 12 of 40
3 Component setup of the LPR-1DHP station
3.1 Overview
The LPR-1DHP station consists of front element A, rear element B and mounting bracket C
as shown in Figure 3.

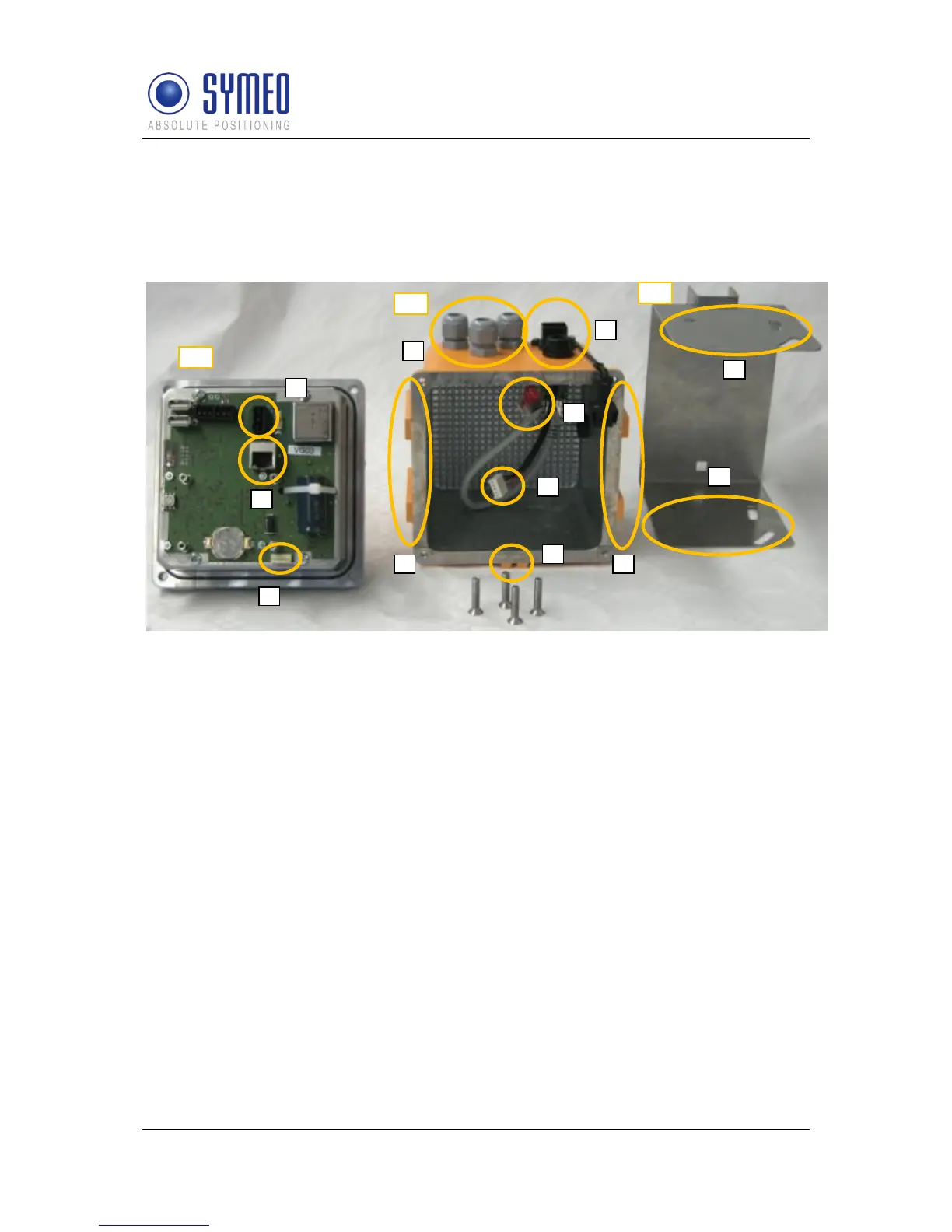

Figure 3: System components front element A, rear element B and mounting bracket C
A: front element
A3 ethernet connector (version TCP/IP)
A4 terminal for power connection
A5 header for USB cable
B: rear element
B1 alignment aid
B2 ethernet connector system (version TCP/IP)
B3 cable feedthrough for power supply and auxiliary cables
B4 insert nut M6 for mounting the system in the mounting bracket
B5 ethernet connector front to rear element (version TCP/IP)
B6 USB connector for USB service port
C: mounting bracket
C1 mounting slots for system unit
Important parts not shown in Figure 3 like the LED display (A1) are displayed in Figure 1.
A
A3
A4
B
C
C1
C1
B1
B4
B4
B2
B3
B5
B6
A5
