SYMEO LPR-1DHP User Manual

SYMEO Local Positioning Radar System
LPR-1DHP
Product Documentation
Component setup of the LPR-1DHP station
Copyright © Symeo GmbH 2012
Page 14 of 40
3.3 Rear elements
The rear element (B) carries the front element (A) and is mounted in the mounting bracket
(C).
3.3.1 LPR-1DHP station with TCP/IP interface
The rear element of the LPR-1DHP station with TCP/IP interface provides the following
connections (see
Figure 5):
 Ethernet connector (B2) for Network connection: type Harting push pull, available from
SYMEO as MTE000060 plug RJ45.
 power supply and auxiliary feedthroughs (B3)
 insert nuts M6 (B4) for mounting in the mounting bracket
 pressure equalization membran (B6)
 USB connector (B7)

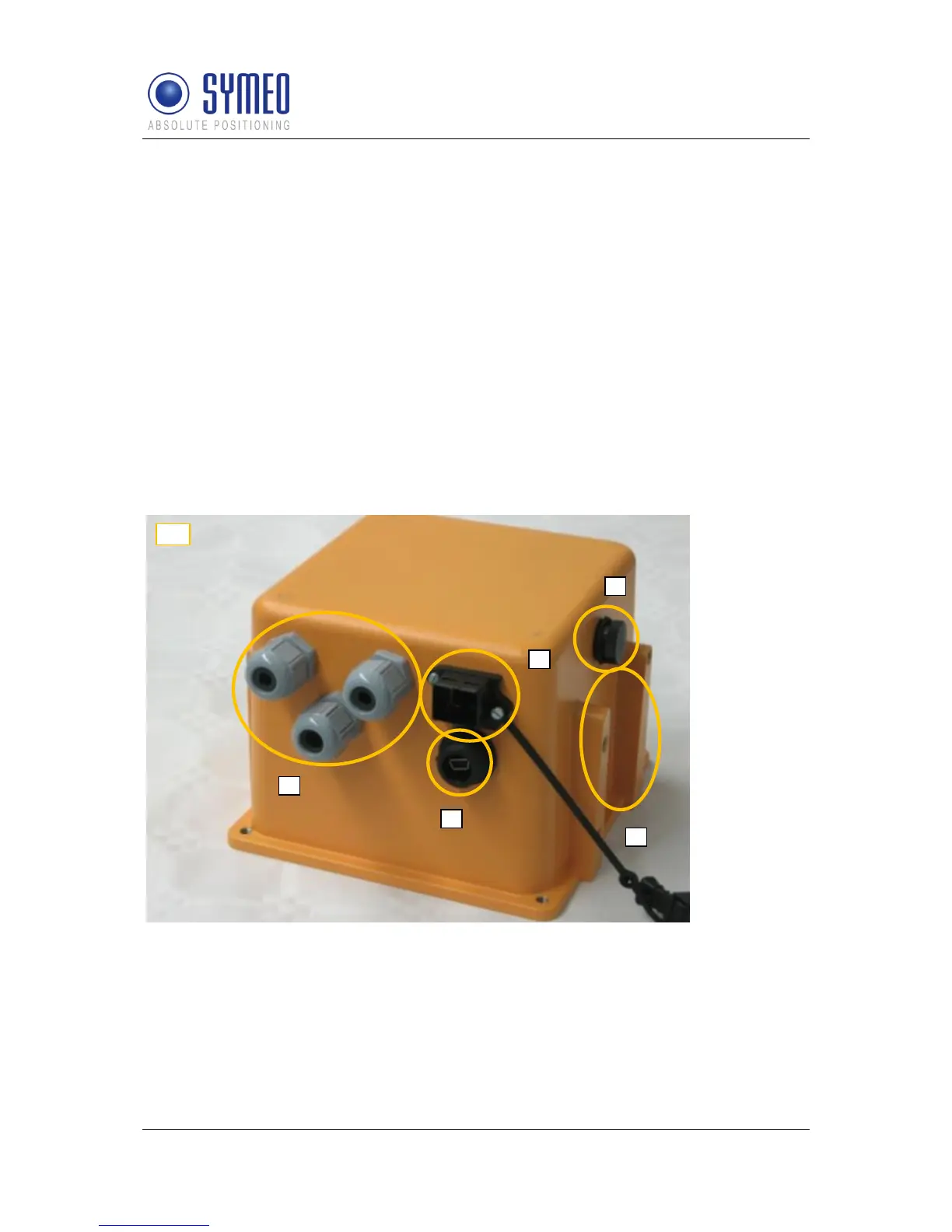

Figure 5: Rear element of the LPR-1DHP station
B
B3
B7
B2
B6
B4
