SYMEO LPR-1DHP User Manual

SYMEO Local Positioning Radar System
LPR-1DHP
Product Documentation
Overview of the LPR-1DHP system
Copyright © Symeo GmbH 2012
Page 9 of 40
2 Overview of the LPR-1DHP system
An LPR-1DHP system consists of two units named BS and TS that conduct the
measurements. One unit (BS) initiates the measurement and the second unit (TS) replies.
Both units are shipped in a pre-configured set. Unit BS1 is configured to measure with TS1,
BS2 with TS2 and so on. The distance values are only available on the unit labeled BS.
Consequently, the unit BS must be mounted at the position where the distance values are
required, e.g. on the crane-bridge. Figure 1 shows the complete system including mounting
bracket for mounting on tubes.

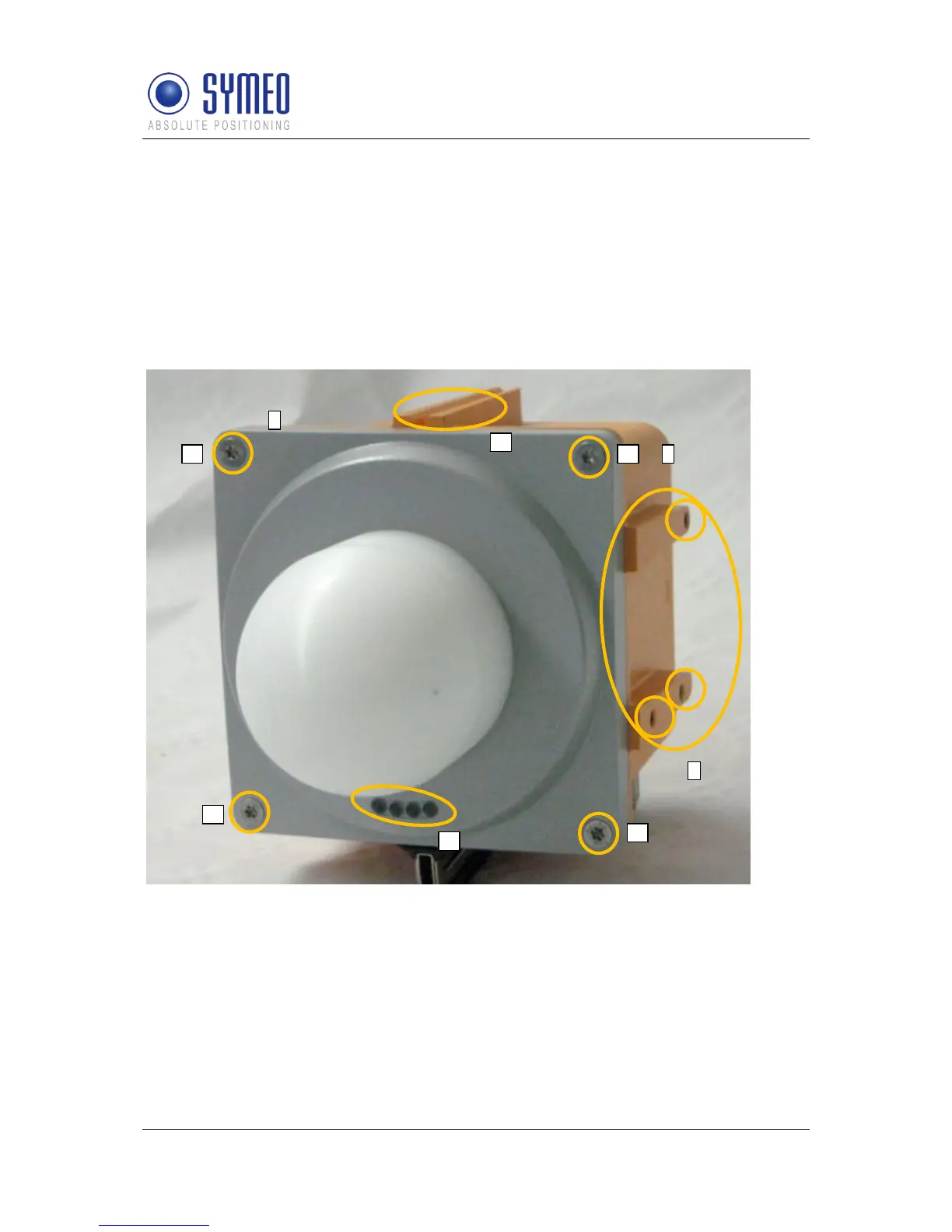

Figure 1: LPR 1DHP station consisting of
A: Front element with display (A1) and fixing screws for front element (A2)
B: Rear element with alignment aid (B1)
C: Holes for mounting bracket.
A1
A2
A2
A2
A2
C
B1
B
A
