Synology DS1813+ - Page 10

How to Replace Hard Disk Backplane for 8 bay/5 bay DiskStation
Page 10 of 39
Date: 2014/4/11
Issued by: Hardware Development Group, Synology
®
Inc.

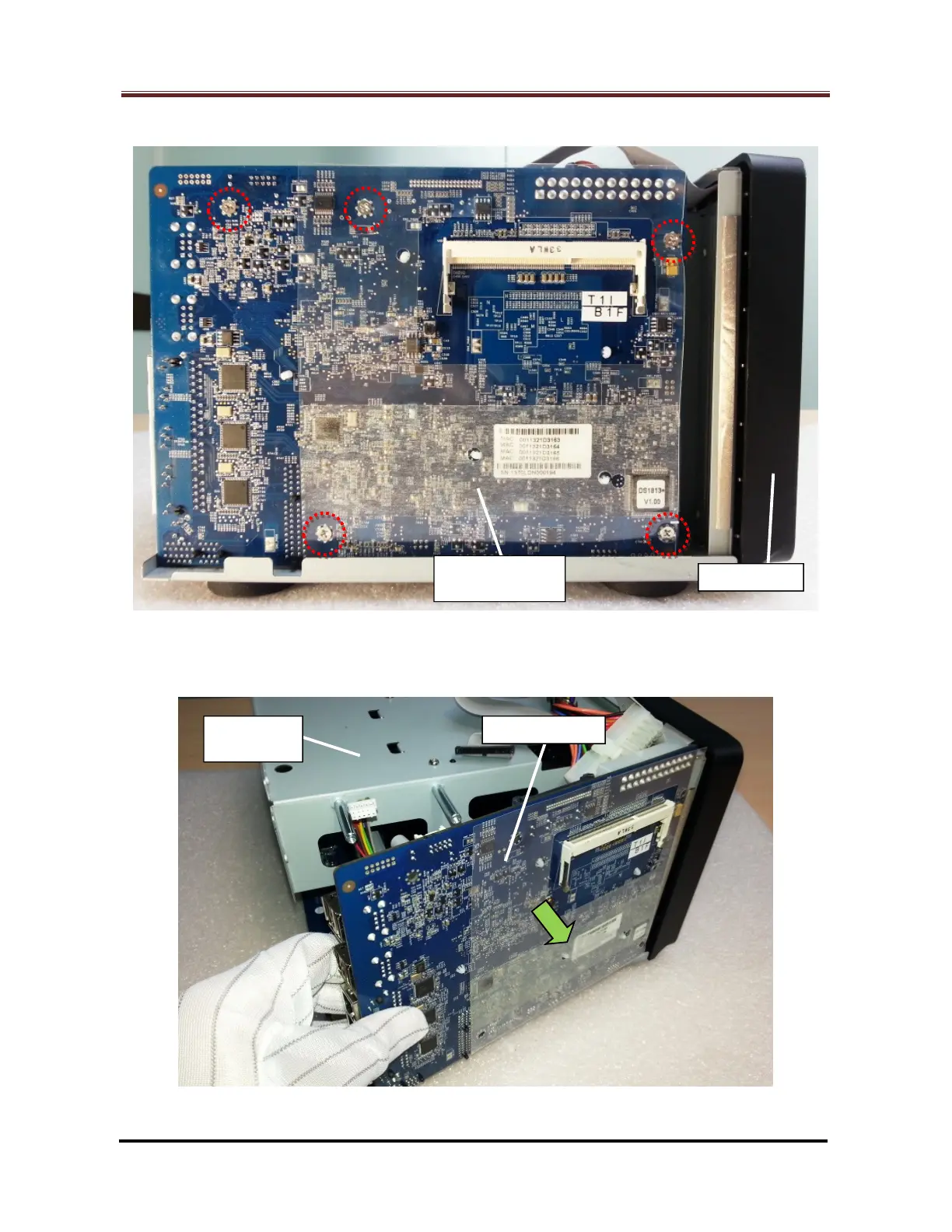

2.1.10 Release the five (5) screws (Marked by the red circles). (Fig. 11)
Fig. 11
2.1.11 Then remove the motherboard from the chassis. (Fig. 12)
Fig. 12
Front Panel
Isolating Mylar
(Transparent)
Enclosure
-
Top
Motherboard
