Synology DS1813+ - Date: 2014;4;11

How to Replace Hard Disk Backplane for 8 bay/5 bay DiskStation
Page 29 of 39
Date: 2014/4/11
Issued by: Hardware Development Group, Synology
®
Inc.

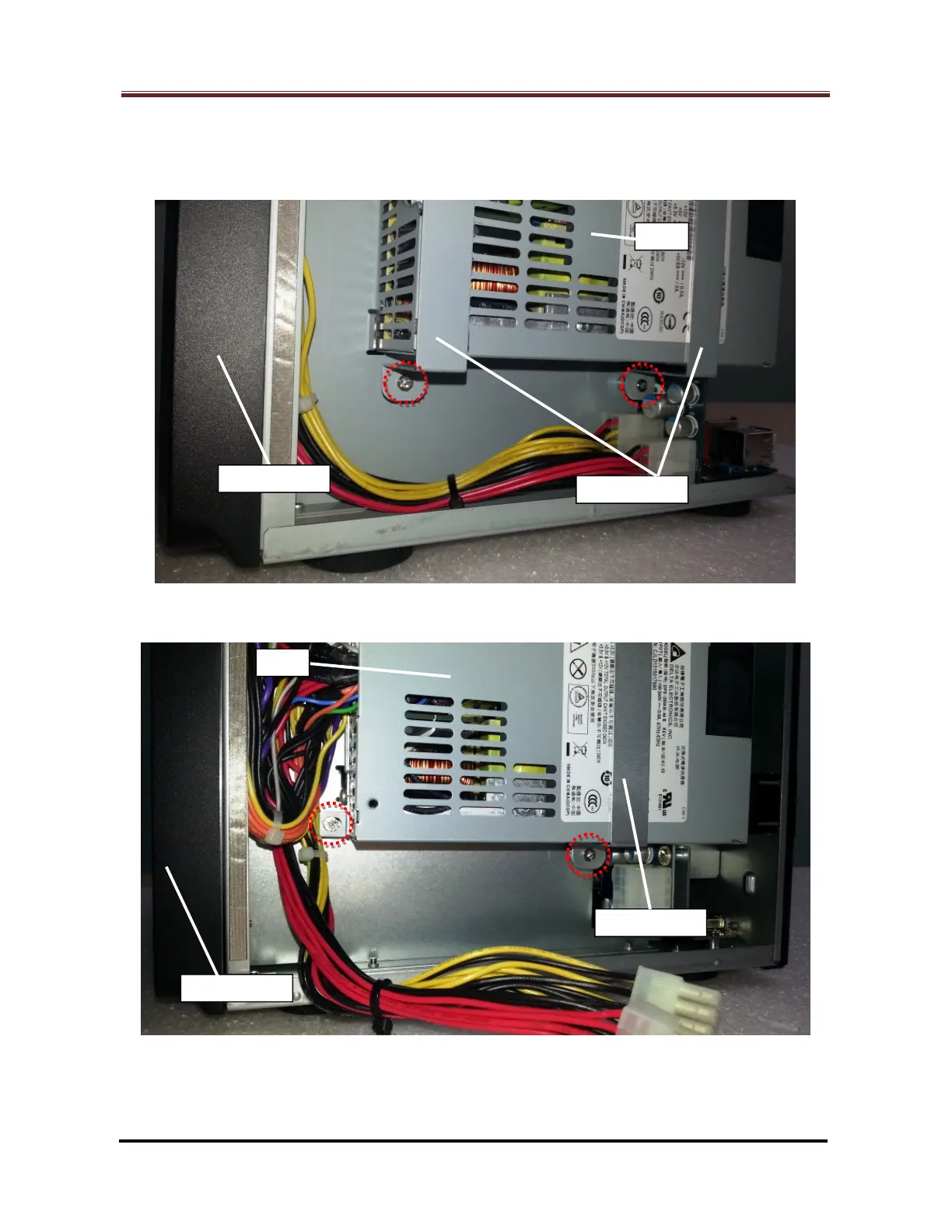

2.2.6 Fix the two (2) screws (Marked by the red circles) to secure the bracket(s)/PSU.
(Fig. 48 for DS1813+ and DS1812+, Fig. 49 for DS1513+, DS1512+, DS1511+,
DX513 and DX510) Then remove the cushion.
Fig. 48 – For DS1813+, DS1812+
Fig. 49 – For DS1513+, DS1512+, DS1511+, DX513 and DX510
PSU
PSU Bracket
Front Panel
PSU
PSU Bracket
Front Panel
