How to Replace Hard Disk Backplane for 8 bay/5 bay DiskStation
Page 27 of 39
Date: 2014/4/11
Issued by: Hardware Development Group, Synology
®
Inc.

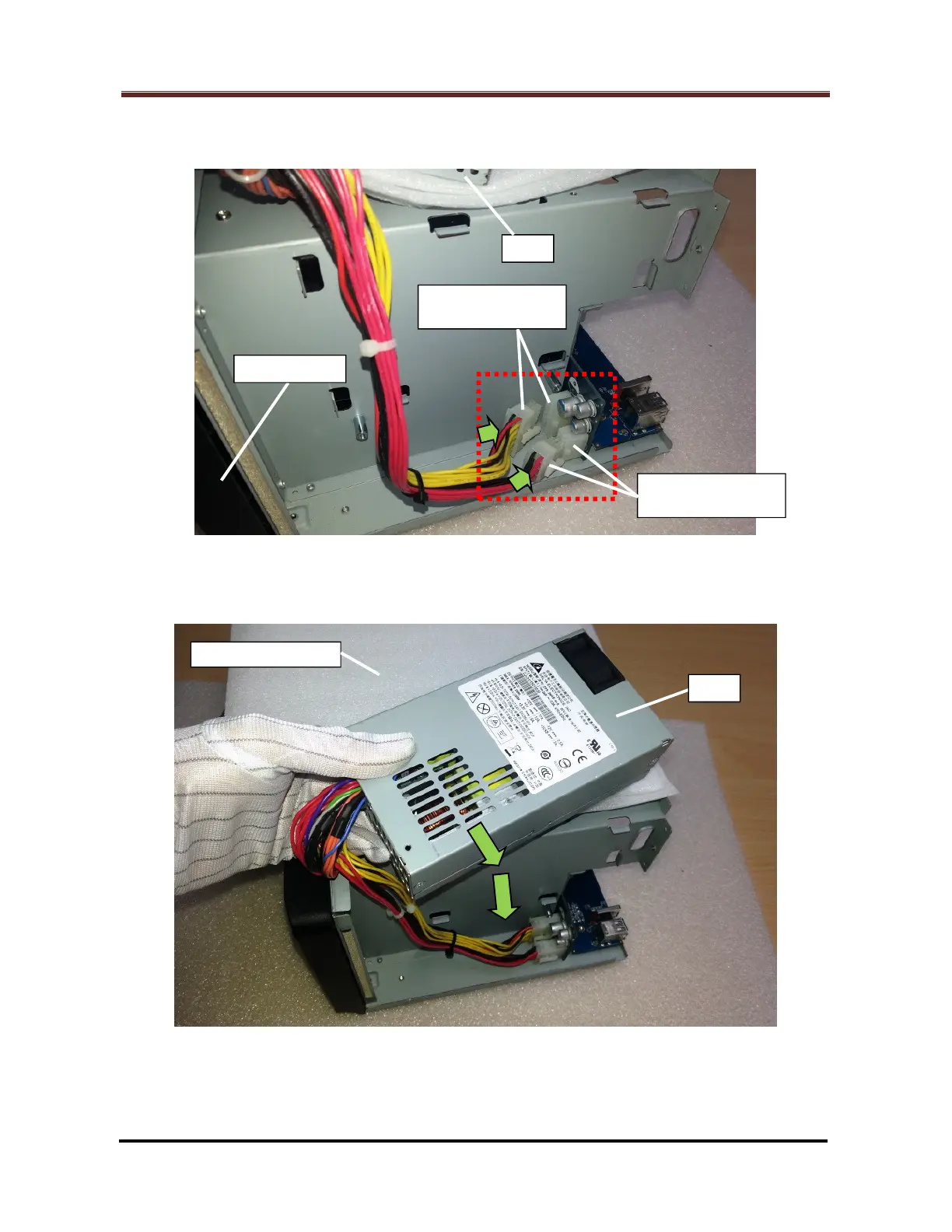

2.2.3 Plug back the 12-pin and 8-pin PSU cable connectors (Marked by the red rectangle)
to their original locations on the HDD backplane. (Fig. 44)
Fig. 44
2.2.4 Restore the PSU to its original location in the enclosure. (Fig. 45)
Fig. 45
