How to Replace Hard Disk Backplane for 8 bay/5 bay DiskStation
Page 30 of 39
Date: 2014/4/11
Issued by: Hardware Development Group, Synology
®
Inc.

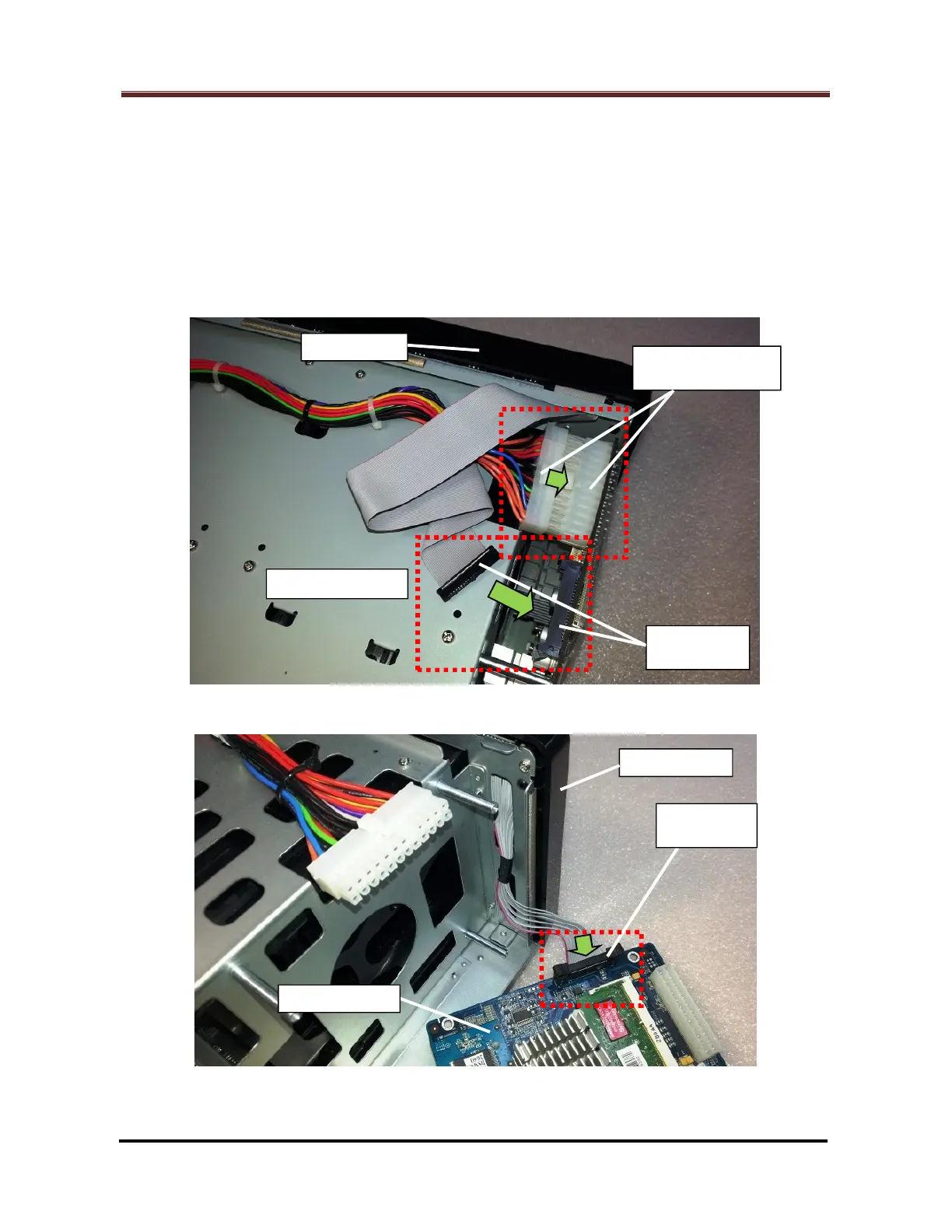

2.2.7 Plug back the 24-pin PSU cable connector and LED cable connector (Marked by
the red rectangles) to their original locations on the motherboard. (Fig. 50 for
DS1813+, DS1513+, DX513 (*), Fig. 51 and Fig. 52 for DS1812+, DS1512+,
DS1511+, DX513 (*), DX510)
Note: For DX513, proceed this step as shown in Fig. 50 or Fig. 51/52 by the
location of its LED cable connector.
Fig. 50 - For DS1813+, DS1513+, DX513
Fig. 51 - For DS1812+, DS1512+, DS1511+, DX513, DX510
