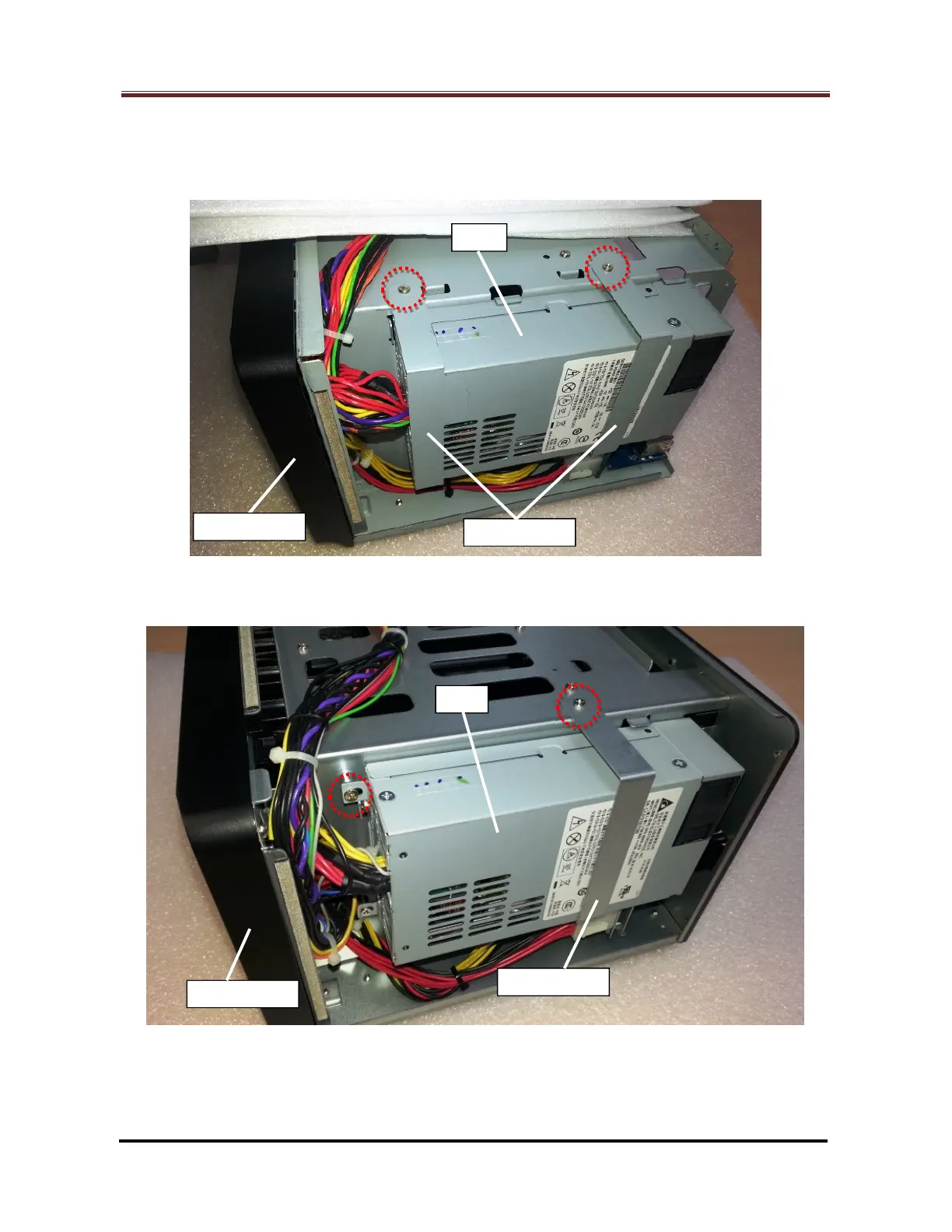

2.2.5 Restore the PSU bracket(s) to the original location(s). Then fix the two (2) screws
(Marked by the red circles) to secure the bracket(s)/PSU. (Fig. 46 for DS1813+ and
DS1812+, Fig. 47 for DS1513+, DS1512+, DS1511+, DX513 and DX510)
Fig. 46 – For DS1813+, DS1812+
Fig. 47 – For DS1513+, DS1512+, DS1511+, DX513 and DX510
