How to Replace Hard Disk Backplane for 8 bay/5 bay DiskStation
Page 32 of 39
Date: 2014/4/11
Issued by: Hardware Development Group, Synology
®
Inc.
Fig. 54 – Enclosure Side

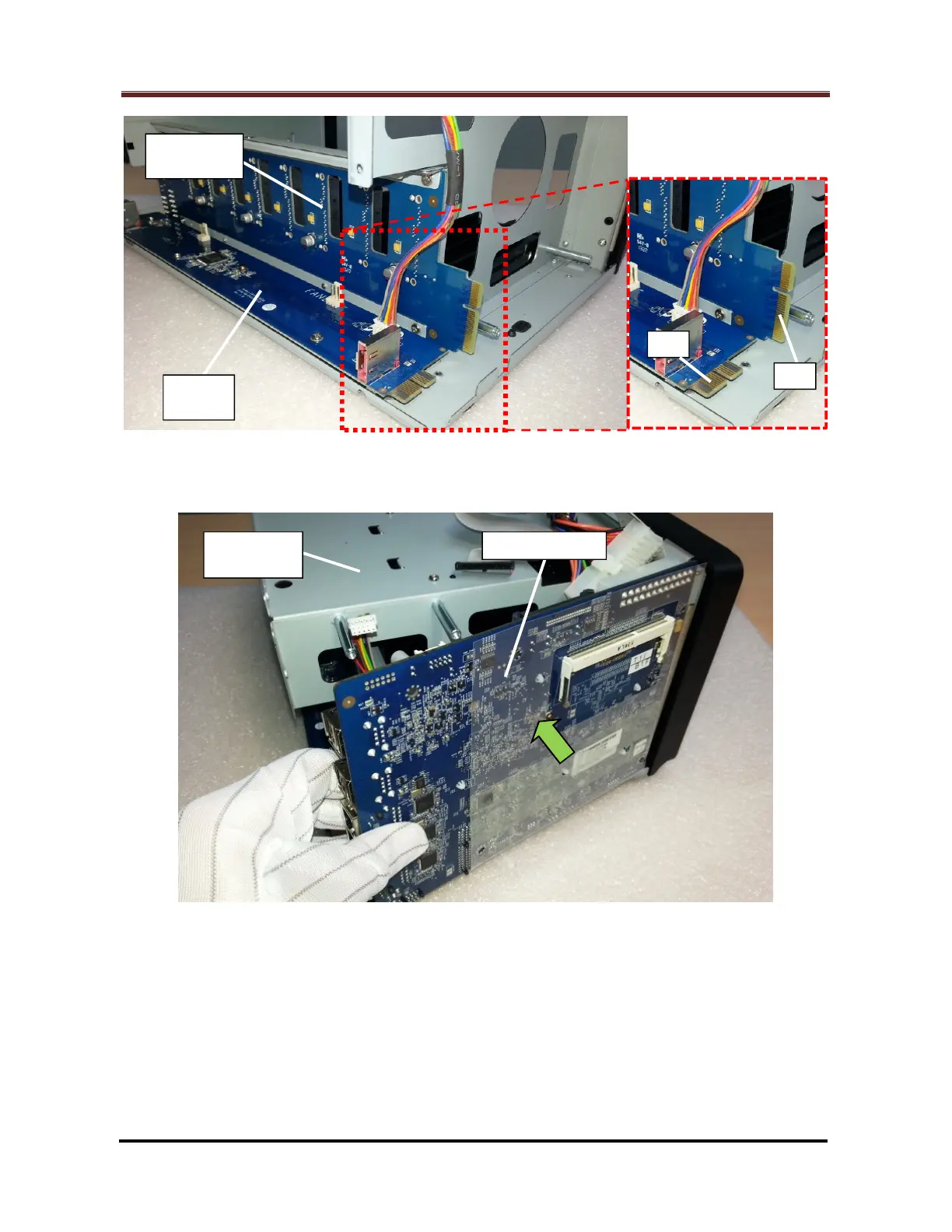

Restore the motherboard to its original location in the chassis. (Fig. 55)
Fig. 55
#
4
#
2
HDD
Backplane
eSATA
Board
Enclosure
-
Top
Motherboard
