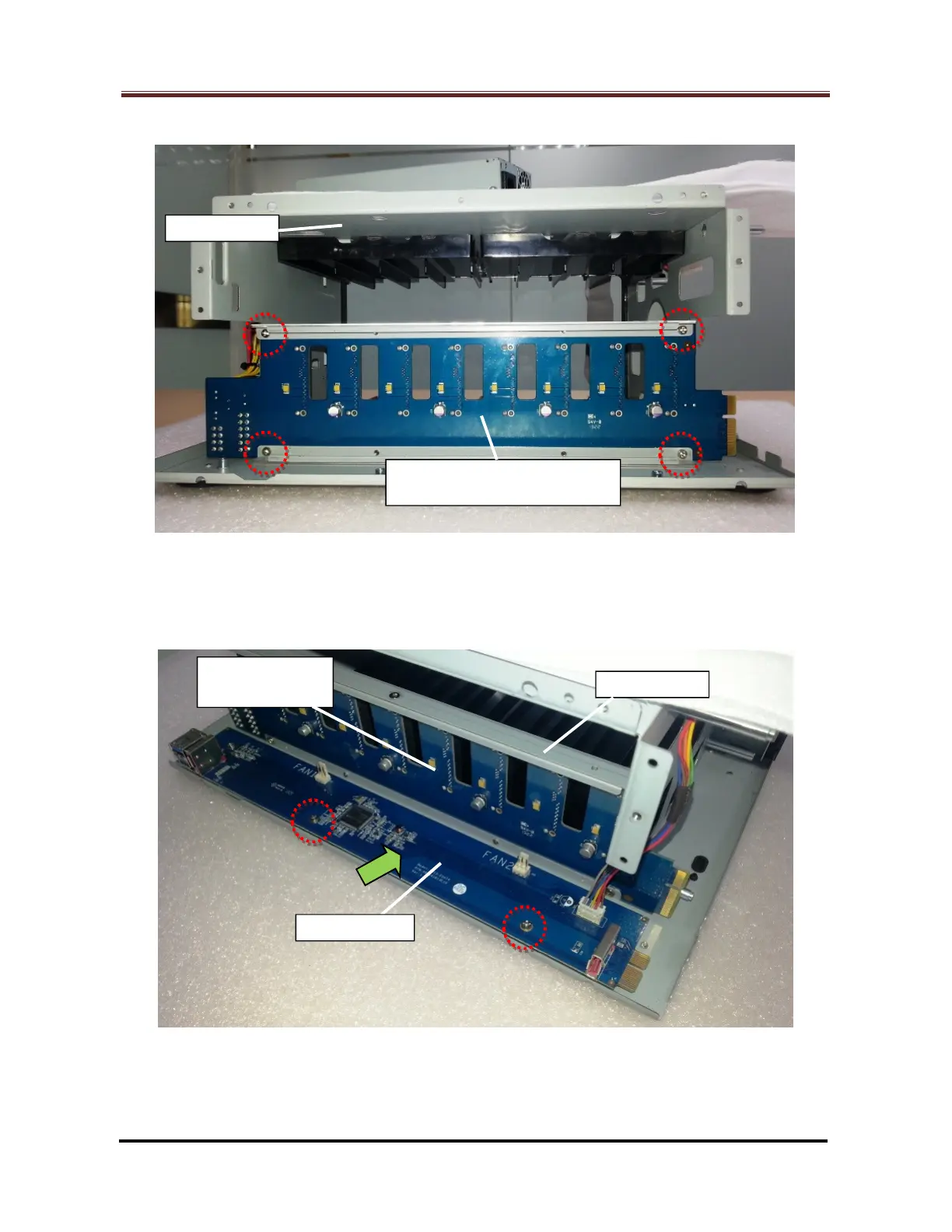

 Fix the four (4) screws (Marked by the red circles). (Fig. 38)
Fig. 38
 Restore the eSATA board to its original location in the enclosure. Then fix the
three (3) screws (Marked by the red circles) to secure it. (Fig. 39 and Fig. 40)
Fig. 39
HDD Chassis
Replacement HDD Backplane
–
Back Side
eSATA Board
HD
D Chassis
Replacement
HDD Backplane
