How to Replace Hard Disk Backplane for 8 bay/5 bay DiskStation
Page 23 of 39
Date: 2014/4/11
Issued by: Hardware Development Group, Synology
®
Inc.

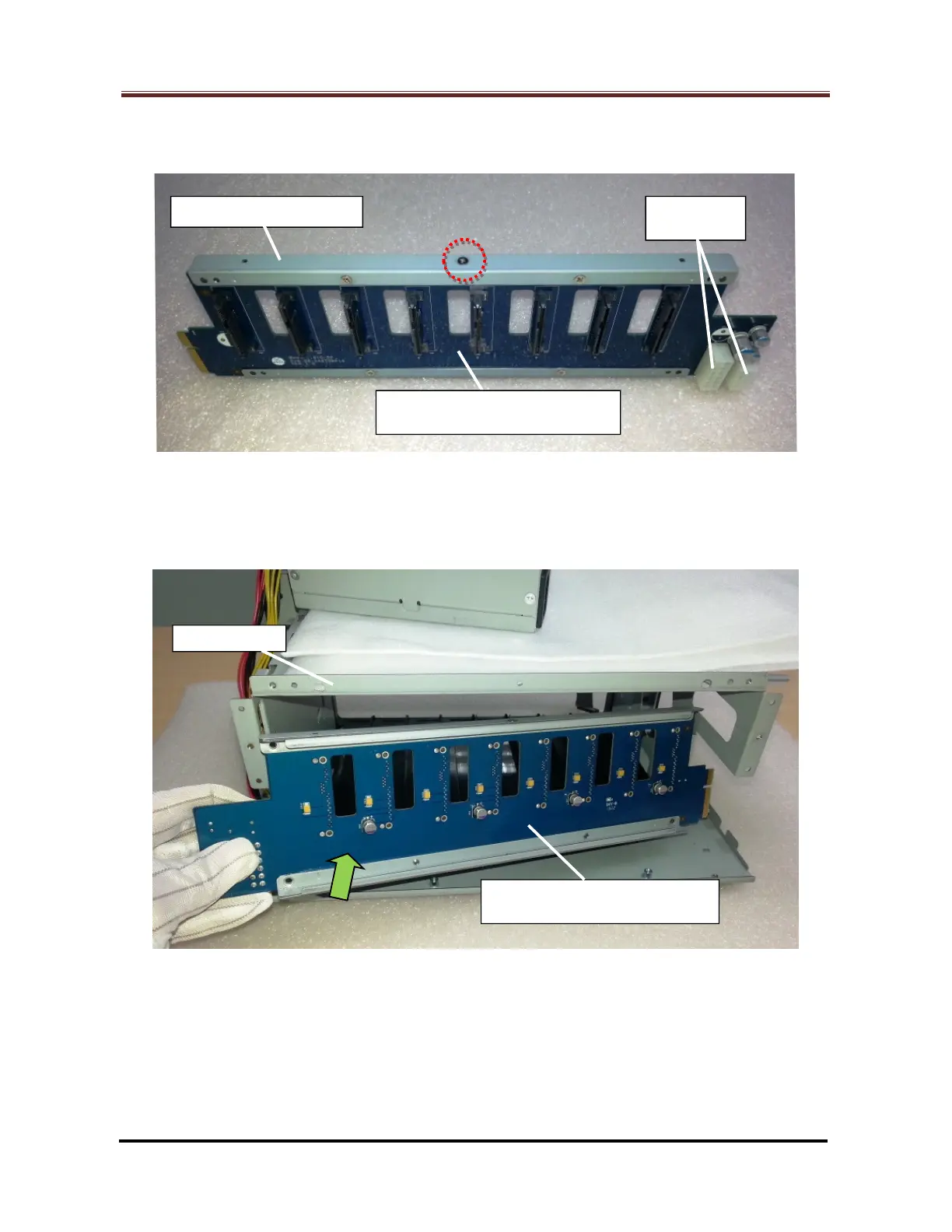

 Fix the screw on top of the upper metal frame (Marked by the red circles). (Fig.
36)
Fig. 36
 Insert the replacement HDD backplane assembly to the same location of the
defective one in the enclosure. (Fig. 37)
Fig. 37
Upper Metal Frame Set
R
e
plac
e
ment
HDD Backplane
–
SATA Connector Side
PSU Cable
Connector
HDD Chassis
Replacement HDD Backplane
–
Back Side
