Gas airtight suspended warm air heaters - EOLO
20
SYSTEMA S.p.A.
Rev. 10EE0112

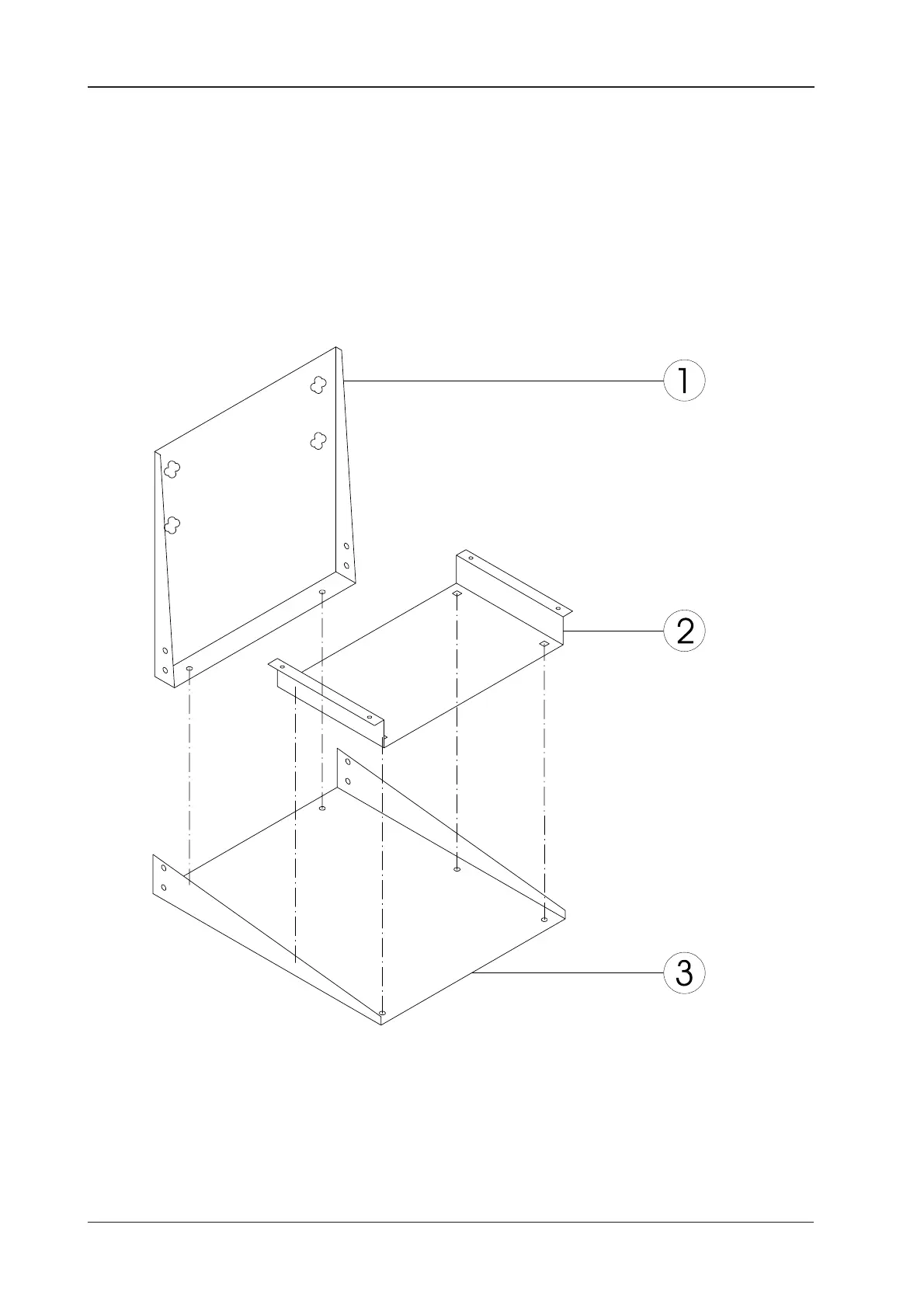

Fig. 13 Fixing brackets for Eolo20
4.2 Installing the appliance
4.2.1 Fitting the brackets for Eolo 20
1= Bracket to be fixed to the wall
2= Bracket to be fixed under Eolo
3= Supporting bracket
