Systema Eolo 20AE Series - Coaxial Roof Discharge for Eolo30-50-70-90 (Type C32)

Gas airtight suspended warm air heaters - EOLO
28
SYSTEMA S.p.A.
Rev. 10EE0112

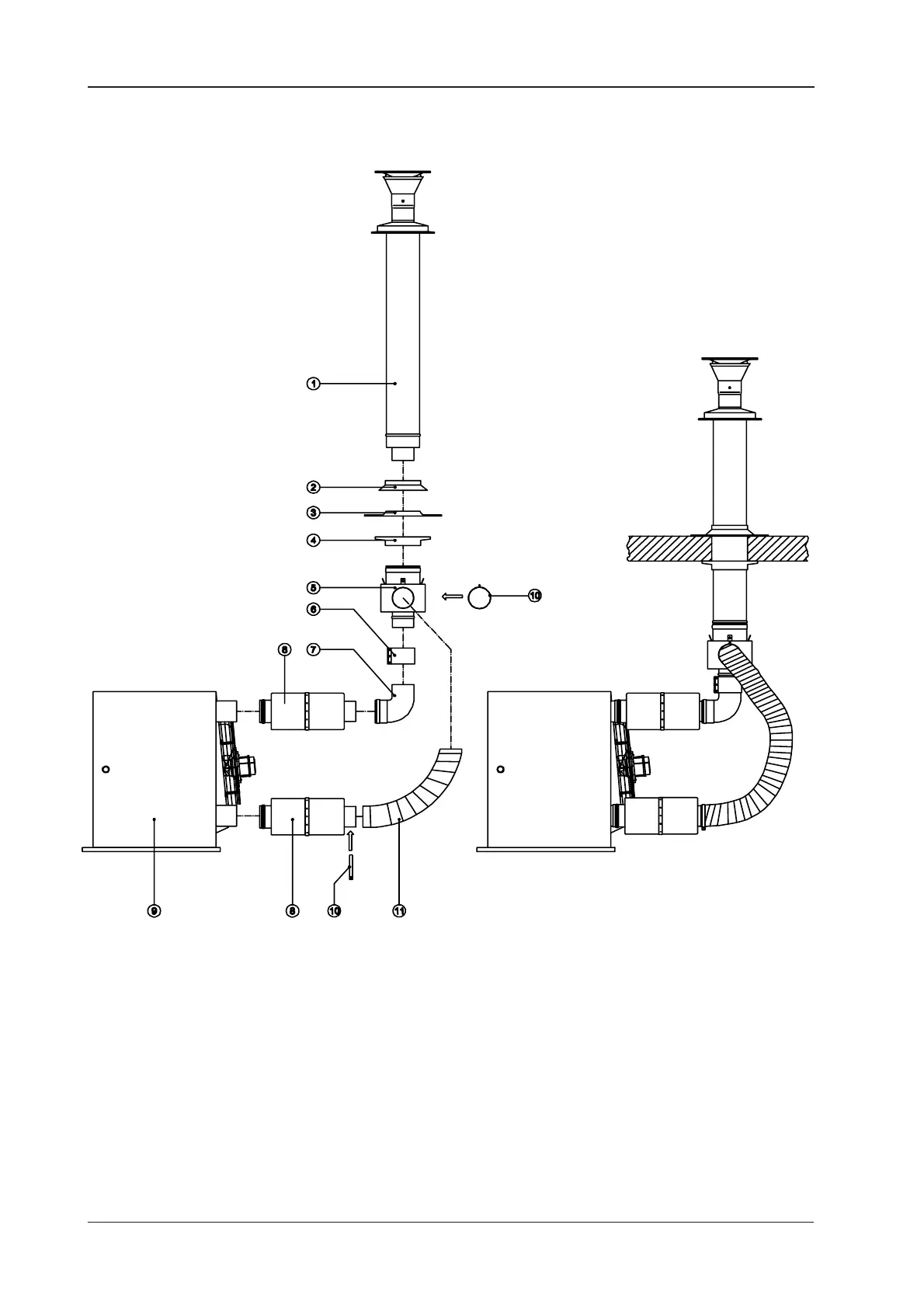

Fig. 21 Example of coaxial roof discharge for Eolo30/50/70/90
6.4 Coaxial roof discharge for Eolo30-50-70-90 (type C32)
1= Coaxial roof termination Ø 150/100 mm
2= Top collar
3= Lead flashing
4= Hole flange
5= Tandem connection
6= Clamping band
7= Elbow bend 90° Ø 100 mm M/F
8= Silencer
9= Eolo
10= Band for clamping flexible air pipe
11= Flexible pipe for combustion air
