Systema Eolo 20AE Series - Coaxial Wall Discharge for Eolo20 (Type C12)

Gas airtight suspended warm air heaters - EOLO
26
SYSTEMA S.p.A.
Rev. 10EE0112

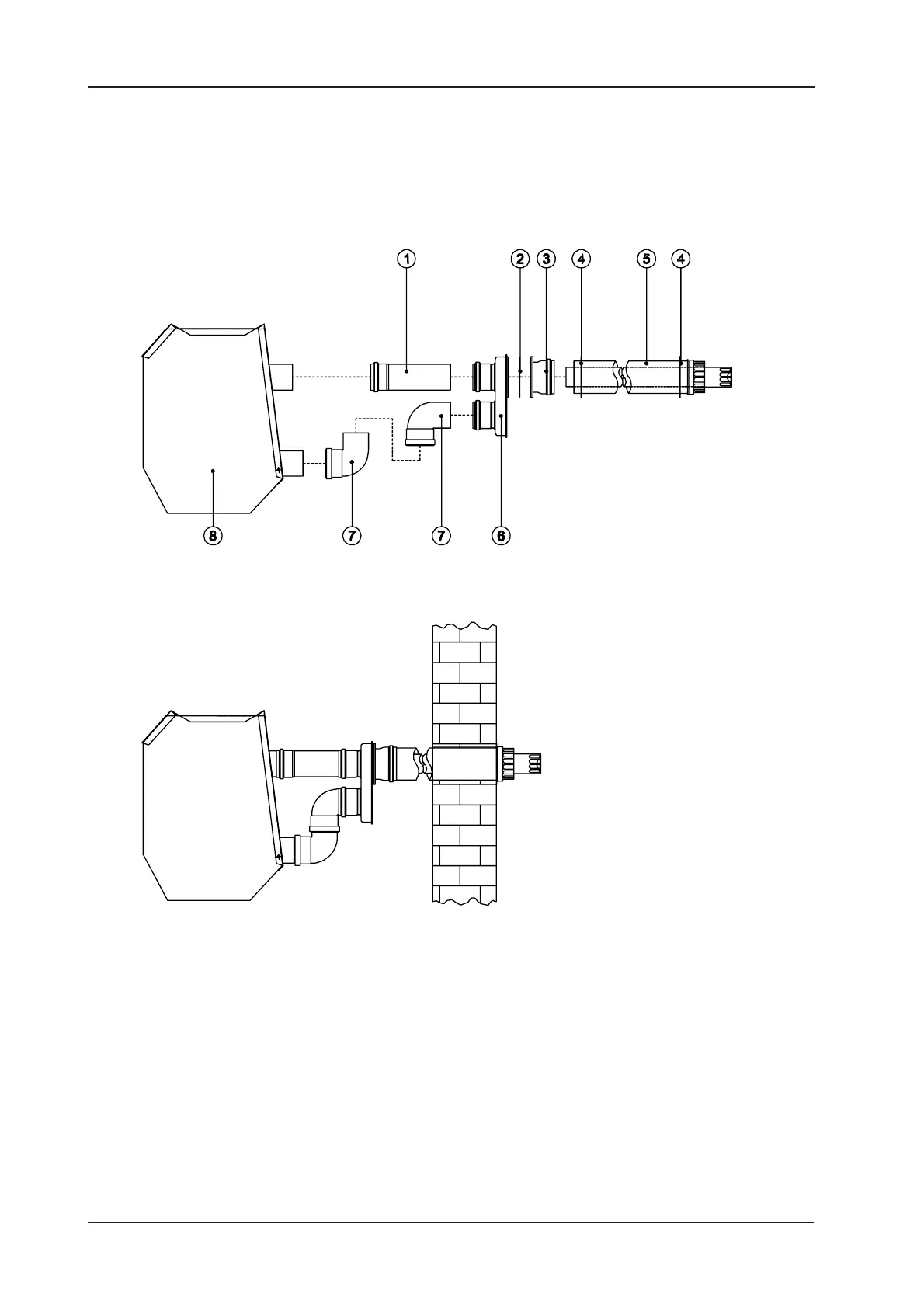

Fig. 19 Example of coaxial wall discharge for Eolo20
1= Rigid component Ø 80 mm M/F length 250 mm
2= Gasket
3= Female coupling Ø 100 mm
4= Hole flange
5= Coaxial wall termination
6= Tandem connection
7= Elbow bend 90° Ø 80 mm M/F
8= Eolo20
6.2 Coaxial wall discharge for Eolo20 (type C12)
