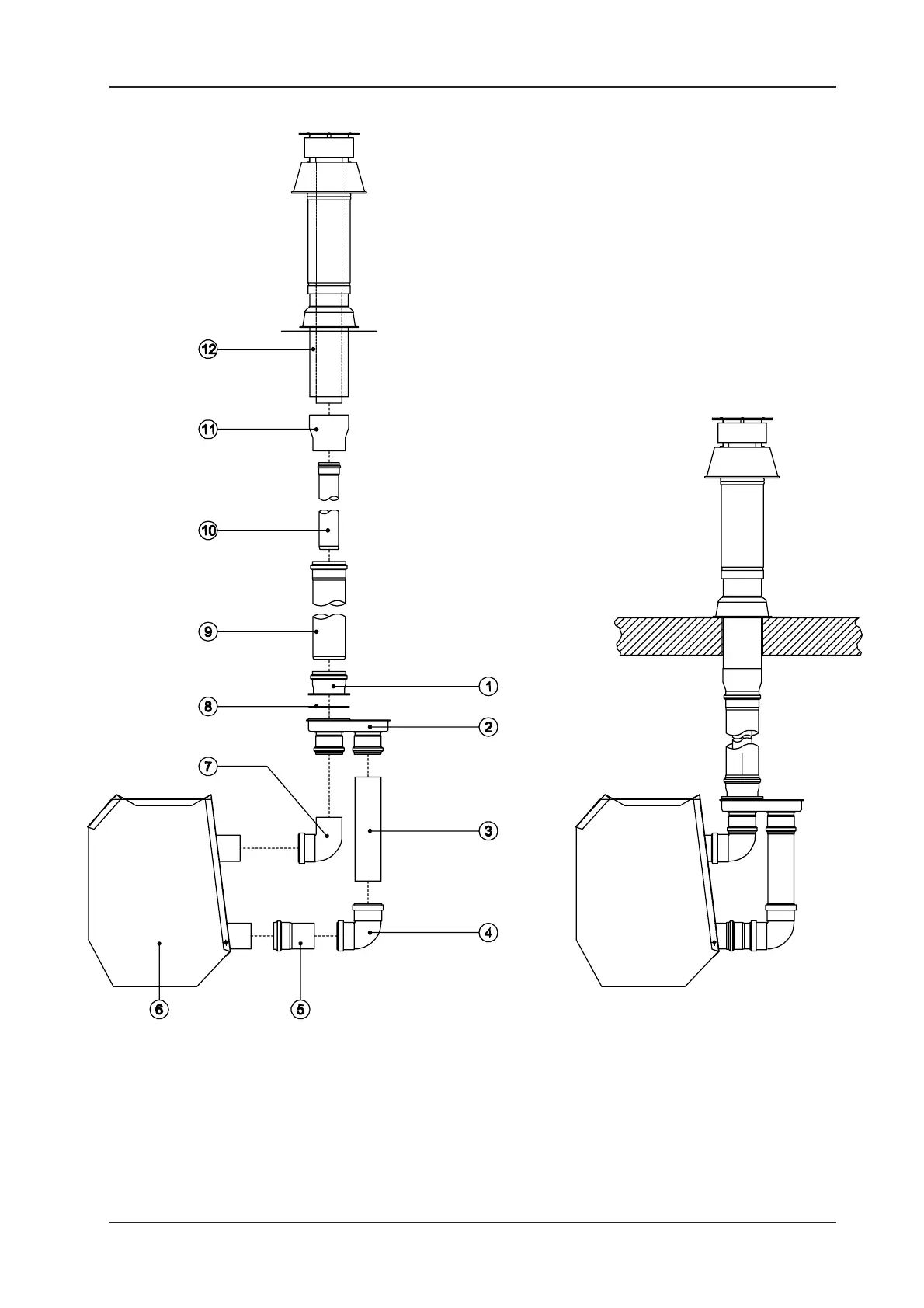

Fig. 18 Example of coaxial roof discharge for Eolo20
6.1 Coaxial roof discharge for Eolo20 (type C32)
1= Female coupling Ø100 mm
2= Tandem connection
3= Rigid component Ø 80 mm M/M length 320
mm
4= Elbow bend 90° Ø 80 mm F/F
5= Rigid component Ø 80 mm M/F length 125 mm
6= Eolo20
7= Elbow bend 90° Ø 80 mm M/F
8= Gasket
9= Rigid component Ø 100 mm M/F length 1.000
mm
10= Rigid component Ø 60 mm M/F length 1.000
mm
11= Reduction
12= Ceiling termination
