Systema Eolo 20AE Series - Separate Roof Discharge for Eolo30-50-70-90 (Type C32)

Gas airtight suspended warm air heaters - EOLO
31
SYSTEMA S.p.A.
Rev. 10EE0112

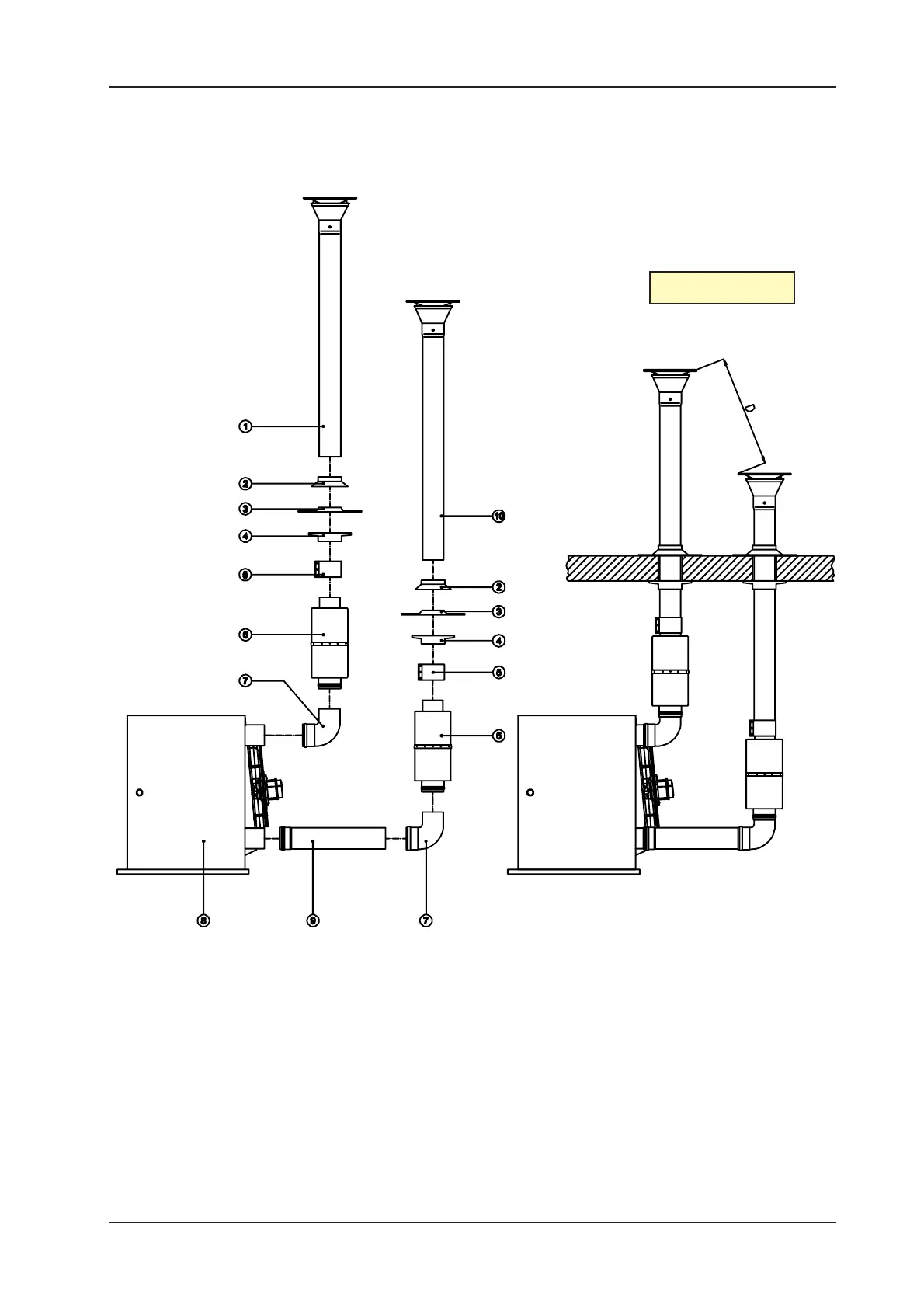

Fig. 24 Example of separate roof discharge for Eolo30/50/70/90
1= Roof fume termination Ø 100 mm
2= Top collar
3= Lead flashing
4= Hole flange
5= Clamping band
6= Silencer
7= Elbow bend 90° Ø 100 mm M/F
8= Eolo
9= Rigid component Ø 100 mm M/F length 500
mm
10= Roof air termination Ø 100 mm
6.7 Separate roof discharge for Eolo30-50-70-90 (type C32)
D= minimun 50 cm
