Systema Eolo 20AE Series - Bi-Thermostat for Adjusting Fan Start-Up

Gas airtight suspended warm air heaters - EOLO
39
SYSTEMA S.p.A.
Rev. 10EE0112

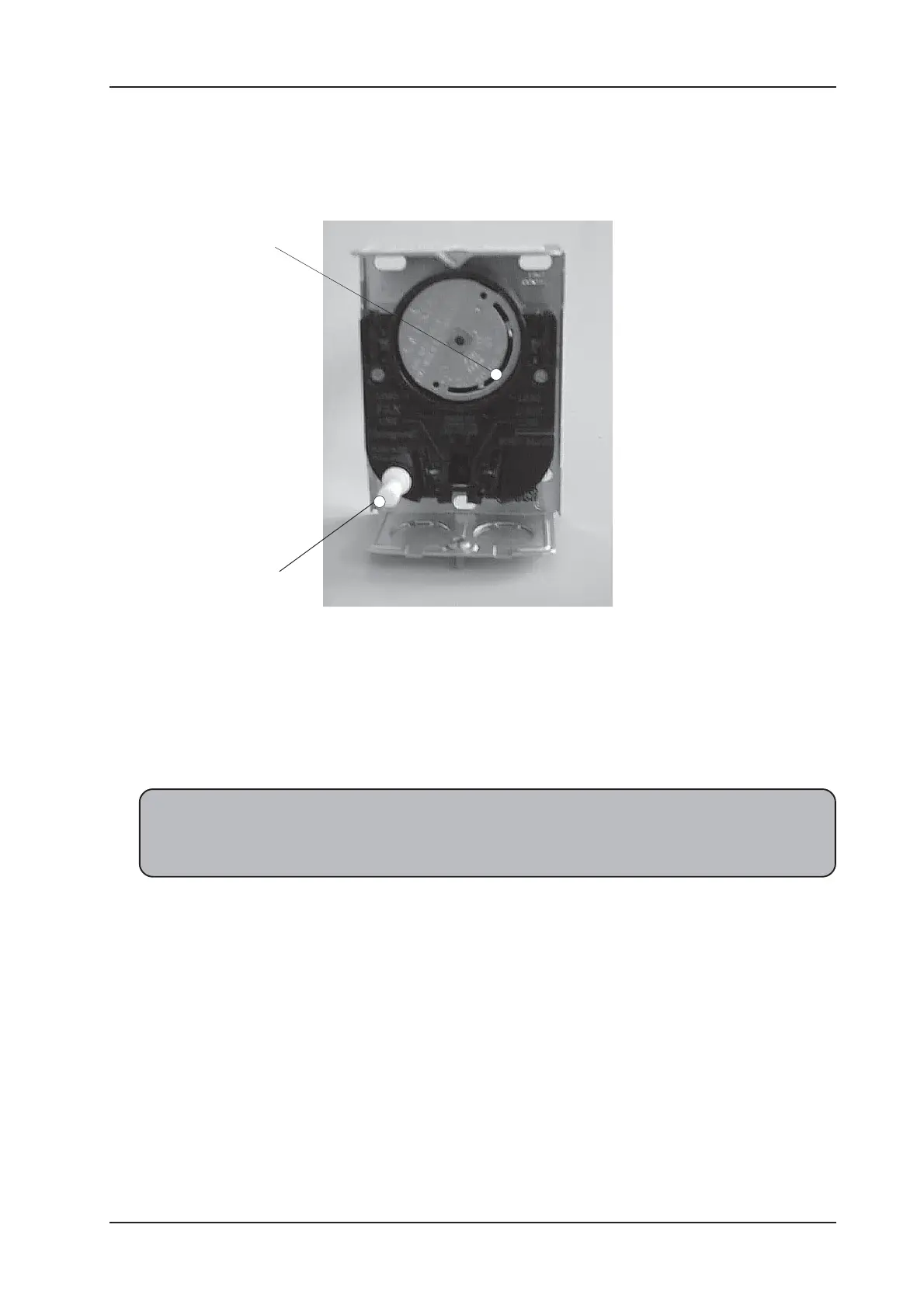

Fig. 31 Fan-limit bi-thermostat
9.4 Bi-thermostat for adjusting fan start-up
During normal operation the sensor of the bi-thermostat rotates and, once the temperature set on the
set point has been reached, closes the contact that supplies power to the fan.
The bi-thermostat has a bi-metal thermostat that operates the fan within 90 seconds of being enabled.
IMPORTANT !!
When setting temperatures and using the adjustment levers, hold the housing firmly so that
it does not rotate and supply power to the sensor.
Adjustment levers
FAN OFF .......................................................................... Fan shut-down temperature
FAN ON ............................................................................ Fan start-up temperature
LIMIT OFF ........................................................................ Eolo limit shut-down temperature
Automatic/manual operation button .................................. Button for manual operation of the fan
Adjustment levers
Automatic/manual
operation button
