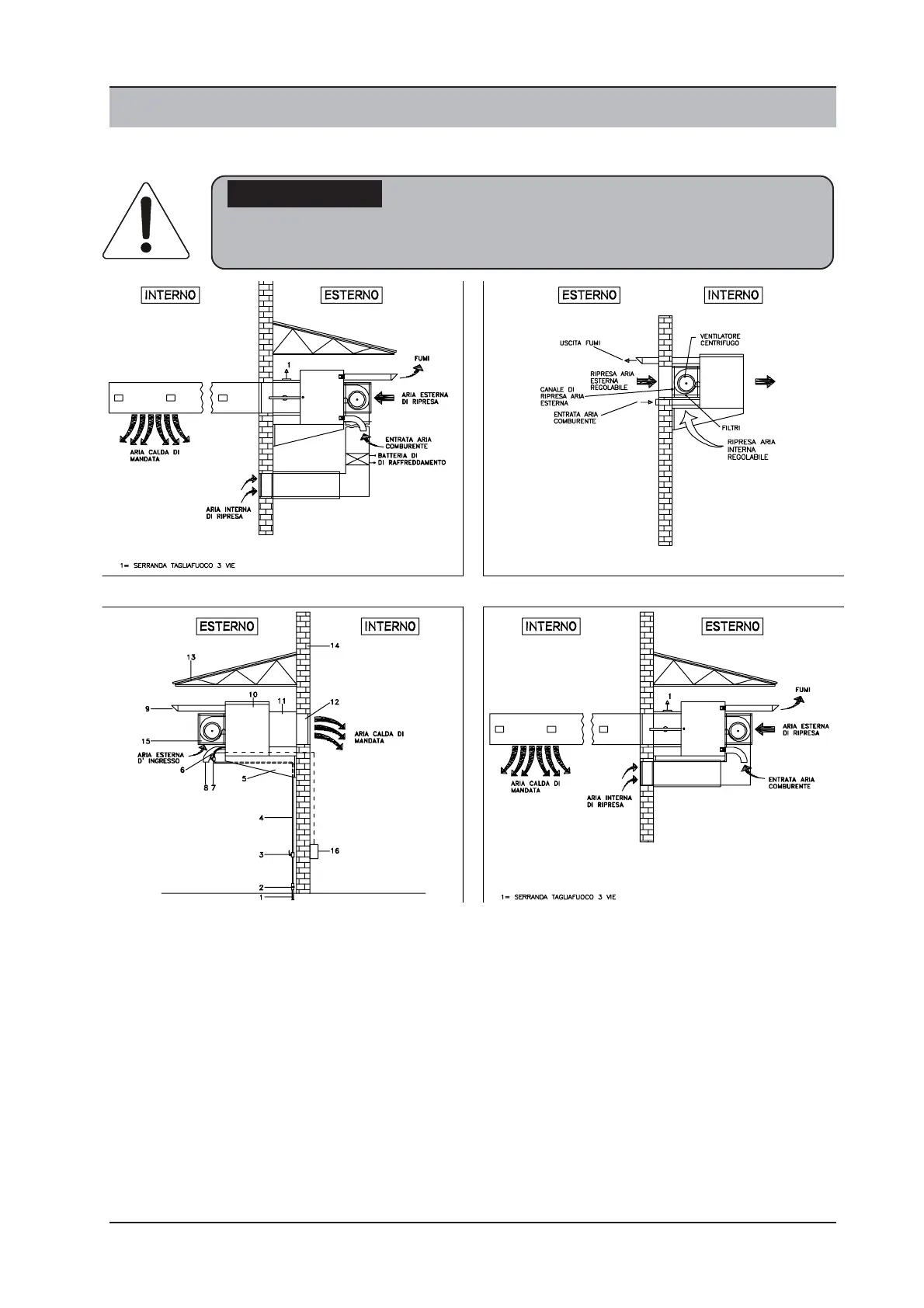

Fig. 16 Examples of application
5 SETTING UP THE APPLIANCE
5.1 Examples of applications
IMPORTANT!!
The heater may be installed outdoors with temperatures down to -15°C. Below this
temperature operation of the appliance is no longer guaranteed.
For the examples of applications shown above, the company Systema only provides the main components,
namely the heater with original air outlets and adjustable fins, fire damper, original filters, supporting brackets,
fume termination. All other components required to perform complete application, namely air pipe fittings,
intake and external air regulation shutters, covers, cooling batteries, etc., must be identified by the installing
company.
LEGEND
1= Pipe
2= Dielectric joint
3= Manual on-off valve in an easy to reach
position
4= Gas feed pipe
5= Supporting bracket
6= Vibration damping joint
7= Manual gas on-off valve
8= Combustion air inlet termination
9= Combustion products outlet termination
10= Heater
11= Two-way fire damper
12= Distribution outlet
13= Protective canopy
14= External perimeter wall
15= Centrifugal fan
16= Control board with ambient thermostat
