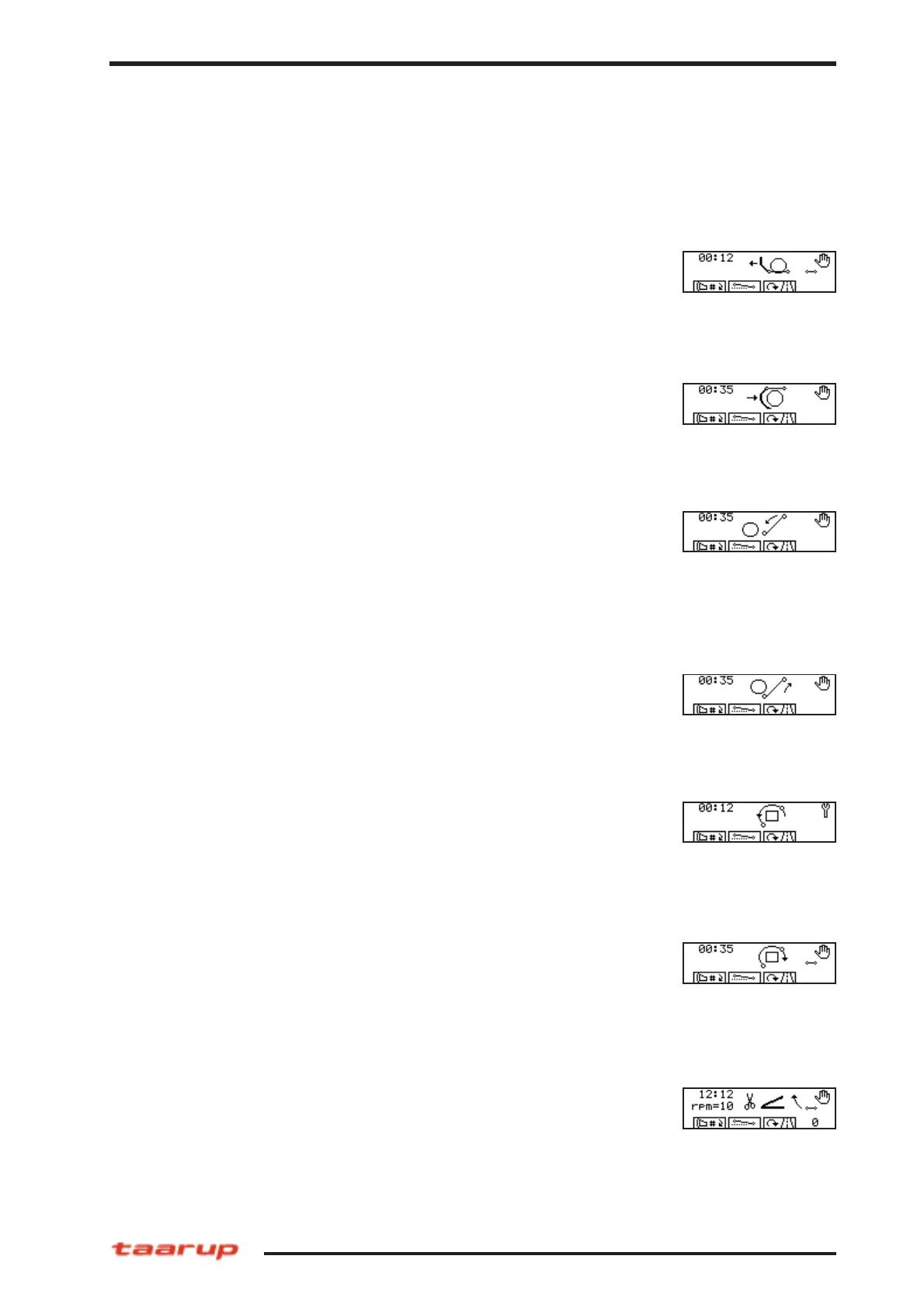

10.10.7 Process states
The following paragraphs are describing the symbols being displayed during ordinary operati-
on. For every symbol it is indicated in which mode of operation this can occur: Tool, Automatic
or Manual.
10.10.7.1 Loading arm out
Loading arm opens.
Mode: Manual, Automatic and og Semi-automatic.
10.10.7.2 Loading arm in
Loading arm closes
Mode: Manual, Automatic and og Semi-automatic..
10.10.7.3 Table down
The table is going to down position or waiting in down position for
the programmed time.
Mode: Manual, Automatic and Semi-Automatic.
10.10.7.4 Table up
The Table is going to horizontal position.
Mode: Manual, Automatic and Semi-Automatic.
10.10.7.5 Rollers backward
The Satellite/Rollers valve is controlled backwards.
Mode: Manual only.
10.10.7.6 Satellite/rollers forward
The Satellite/rollers valve is controlled forwards.
Mode: Manual only.
10.10.7.7 Film cutter up
The film cutter is going up or waiting in the upper position.
Mode: Manual, Automatic and Semi-Automatic.
Operating model C
