Taie FU96 User Manual

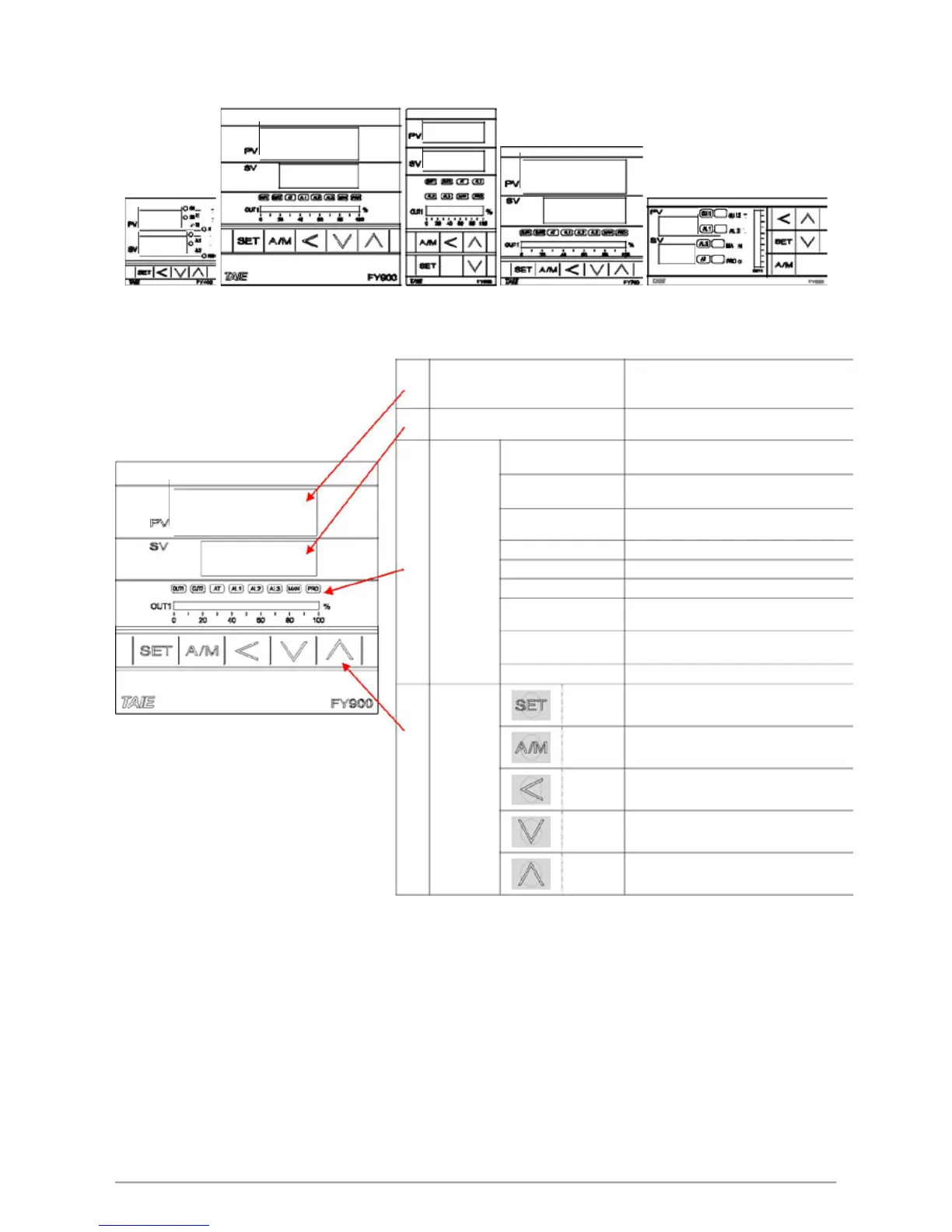

6. Parts Description
8.8.8.8
8.8.8.8
FY400/FU400
8.8.8.8
8.8.8.8
FY900/FU96
8.8.8.8
8.8.8.8
FY800/FU86
8.8.8.8
8.8.8.8
FY700/FU72
8.8.8.8
8.8.8.8
FY600
8.8.8.8
8.8.8.8
Indicating PV (measured value) and
1
PV character information such as parameter
codes or error codes(Red)
2
SV
Indicating SV (target set value) or
parameter values(Green)
OUT1
Lamp lit when OUT1 is activated
( Green )
OUT2
Lamp lit when OUT2 is activated
( Green )
AT
Lamp lit when Auto tuning is activated
(Orange)
3
LED
AL1 Lamp lit when Alarm 1 is activated (Red)
AL2 Lamp lit when Alarm 2 is activated (Red)
AL3 Lamp lit when Alarm 3 is activated (Red)
MAN
Lamp lit when controller in manual mode
or get error condition (Orange)
PRO
When the program is executed, this light
is on (orange)
OUT1% OUT1% bar-graph indicator(Green)
SET
For parameter call-up and set value
registration
A/M Auto manual transfer
4
Keypad SHIFT Shift digits when changing settings
DOWN Decrease numerals
UP Increase numerals
9 FY/FU operation manual

Taie FU96 Specifications

General

Brand	Taie
Model	FU96
Category	Controller
Language	English
